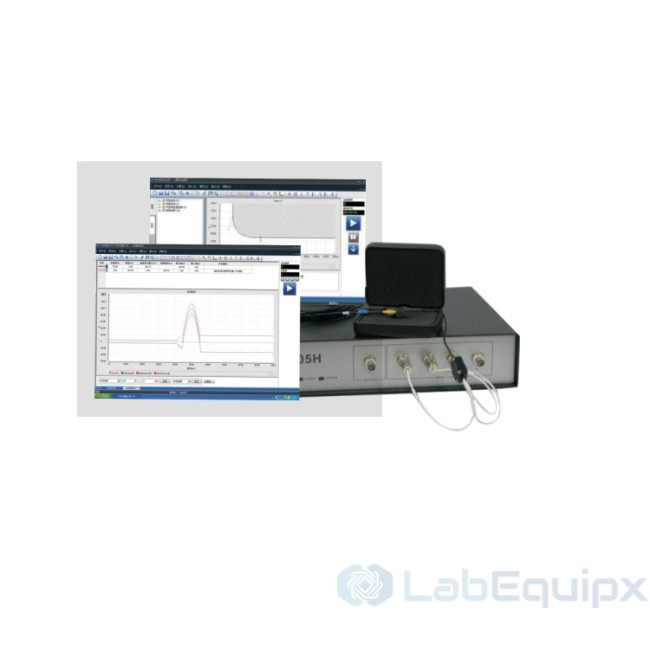

Shock/Drop Measurement Systems LEGST

Shock measurement analyzer is specially used as a platform to capture shockwave capture and perform analysis. It is suitable for capturing, measurement and analysis of the normal and high impact event. It can meet ISO,GJB150, GJB360, GB2423, MIL-STD-810 and other shock test standards and is a professional tool for environmental shock testing,

Supports GB, ISO, MIL-STD-810 and user defined standard;
Waveform type: half sinusoidal wave, rectangular wave, trapezoidal wave, triangular wave, sawtooth wave;
Sampling frequency: the maximum sampling frequency for ST-02 of each channel is 192 Khz;
The maximum sampling frequency for ST-05 of each channel is 1MHz, acceleration range up to 100000gn;
Error band analysis and Pass/Fail to determine the number of recorded shock waveform and playback;
Shock response spectrum(SRS)analysis;
Automatically generate Word test report, report content and template can be customized;
Portable design, USB2.0 port.

Model		LEGST-02	LEGST-05
Input	Channel	2 Channel	4 Channel, Can be extended to 8/12/16
	Sampling Frequency	192Hz	1MHz
	Voltage Range	－10V~+10V
	Coupled Modes	AC, DC, ICP;Built-in ICP constant current source, charge amplifier (1mV/ and 0.1mV/ PC two range), compatible with TEDS sensor
Output	Channel	1
	Bandwidth	Only used for calibration
	Sampling Frequency	192KHz
	Voltage Range	－10V~+10V
General Indicators	Electricity Supply	AC220V
	Power	40W
	Communication In	USB2.0
	Operating System	Microsoft Windows 2000/XP
	Support Standards	ISO,MIL-STD-8, or user defined
Other Indicators	ADC Resolution Ratio	24Digital（bits）	16Digital（bits）
	Pulse Width	0.5~100msec	0.5~100msec
	Max. Acceleration	5,000gn	100,000gn
	Dynamic Range	110dB	80dB
	Harmonic Distortion	＜-95dB	＜-70dB
	Signal to noise ratio	＞-95dB	＞70dB
	Input Type	Voltage, Charge	Voltage
	Frequency Accurate	0.01%

Model	LEGST
Brand	LabEquipx
