Compact Vibration Systems

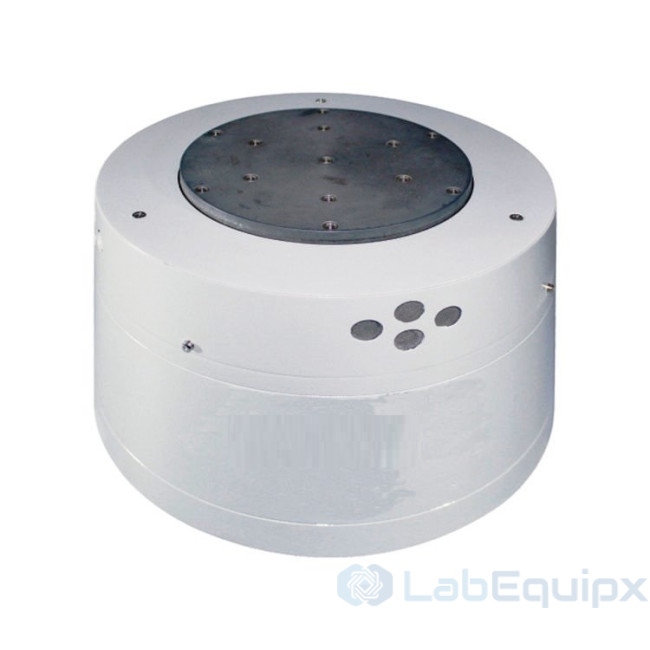

  • The LEEV50 is a small, light electrodynamic vibration table for testing micro parts and for calibrating acceleration sensors. It is used for calibration of high precision vibration meters, mechanical impedance tests, fatigue tests, vibration analysis of a vibration source, vibration tests of small parts such as sensors, electronics and small electric machines, and for teaching and research. The LEEV family covers the compact range; this model is LEEV50.

    Design

    A complete set consists of the vibration generator, power amplifier, vibration controller, signal generator and acceleration sensor. The generator is force cooled. The machine measures W360×D300×H350 mm and weighs 36 kg, so it can be moved between benches. The armature weighs 1.2 kg.

    Performance

    • Rated sine force: 50 kg.f (490 N)
    • Rated random force: 38 kg.f (372 N)
    • Frequency range: 5 to 3800 Hz
    • Maximum acceleration: 38 G
    • Maximum displacement: 10 mm
    • Maximum velocity: 1.2 m/s

    Power amplifier

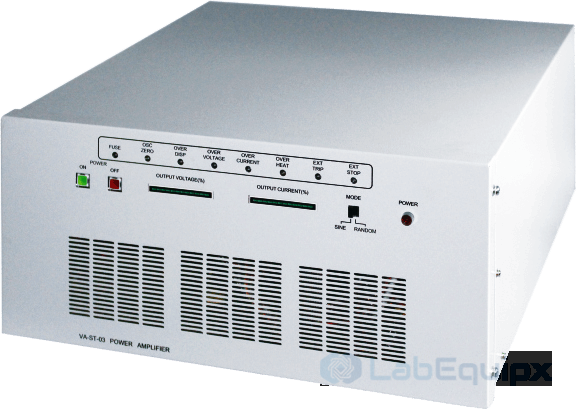

    The power amplifier is type Va05 with 500 W output power. Power supply is AC 220 V ±10%, 50 Hz.

    Typical applications

    • Calibration of acceleration sensors and vibration meters
    • Mechanical impedance testing
    • Vibration and fatigue tests of small, lightweight parts
    • Teaching of basic vibration engineering

    Specify for your project

    • Test specimen mass, including fixture, against the 1.2 kg armature and 490 N rating
    • Required frequency band within 5 to 3800 Hz
    • Test type: sine or random
    • Whether controller, signal generator and acceleration sensor are supplied with the table

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Compact Vibration Systems
    • Compact Vibration Systems
  • Features

    • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
    • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
    • Apply to the basic test of vibration engineering of educational equipment.

    Constitute

    Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor.

    Technical Parameters:


    Model
    LEEV50
    Rated Sine Force50kg.f(490N)
    Rated Random Force38kg.f(372N)
    Frequency Rang5~3800Hz
    Max. Acceleration38G
    Max. Displacement10mm
    Max. Velocity1.2m/s
    Armature Weight1.2kg
    Machine dimensionW360×D300×H350mm
    Machine Weight36kg
    Cooling MethodForced Cooling
    Power AmplifierVa05
    Output Power500W
    Power SupplyAC220V±10% 50Hz
