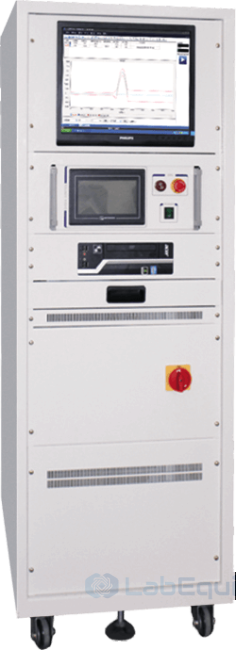

Collision testing machine LEGSKM
Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.
Technical Parameters:
Model LEGSKM500 LEGSKM700 LEGSKM800 LEGSKM1000 LEGSKM1500 Table size(mm) 500×700 700×800 800×800 1000×1000 1500×1500 Max.Payload(kg) 50 100 200 500 1000 Wave form Halt sine pulse Acceleration range(G) 5~120 5~100 5~100 5~80 5~60 Pulse duration(ma) 6~18 Bump repetition frequency(Hz) 1~120 1~80 Drop height range(mm) 5~120 5~180 Maximum acceleration variation(m/s) 2.2 2.6 2.8 Machine dimension(mm) 750×660×800 900×900×800 900×960×800 1200×1150×860 1600×1650×1200 Machine weight(kg) 1000 1260 2160 3660 6500 Power ＆ Air supply AC220V±10% 50Hz Air supply(8kg 23m³gasholder) Standards GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc
| Model | LEGSKM |
| Brand | LabEquipx |
