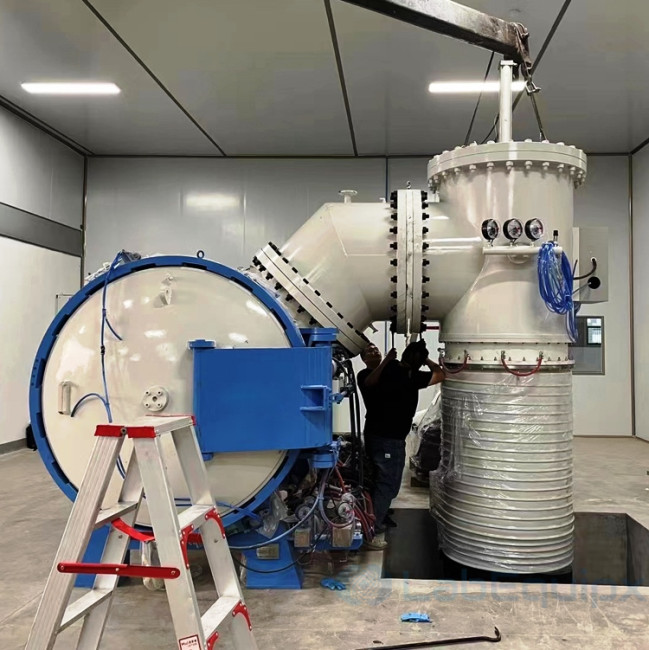

Vacuum Degreasing Furnace
The LEVDF is a horizontal vacuum degreasing furnace that removes binder from metal injection molded (MIM) parts before sintering. Parts of stainless steel, iron-based alloys, titanium, alloy steel and high speed steel are heated under vacuum, micro-negative or micro-positive pressure while a sealed dewaxing device collects the binder. Typical work is medical device parts such as dental orthodontic products, phone and computer accessories, and hardware. Six sizes run from LEVDF045 to LEVDF588.
Furnace structure
The body is a horizontal single-chamber water-cooled jacket with an ordinary steel outer layer and SUS304 inner layer, closed by water-cooled doors at both ends. From outside in, the hot zone has a stainless steel case, a high-temperature fiber composite heat shield, Ni-Cr heating elements and a sealed corrugated stainless steel degreasing chamber. Inner heat shield doors close both ends of that chamber. Heating elements exit through water-cooled electrodes.
Vacuum, gas and safety
- Two-stage water ring pump with rotary vane pump and removable line filter
- Pneumatic vacuum valves on user-supplied air at 0.4 to 0.6 MPa
- Nitrogen charging with glass rotameter; rapid cooling by nitrogen circulation
- Contact pressure gauge closes the gas inlet at set pressure; gauge range -0.1 to 0.15 MPa; explosion-proof relief valve
- Interlocks on temperature, pressure, water pressure and vacuum; remote operation and fault diagnosis
Model Inner size, mm Load, kg LEVDF045 300 x 300 x 500 75 LEVDF096 400 x 400 x 600 150 LEVDF200 500 x 500 x 800 250 LEVDF324 600 x 600 x 900 300 LEVDF396 600 x 600 x 1100 400 LEVDF588 700 x 700 x 1200 600 All models: maximum temperature 950 °C, ultimate vacuum 3.0×10⁻¹ Pa, uniformity ±5 °C, leak rate ≤0.5 Pa·L/s.
Options
Full carbon steel, stainless inner or full stainless furnace; touch screen or industrial computer; molybdenum or isostatic graphite heating material; choice of vacuum pump and temperature controller.
Specify for your project
- Load mass and part size
- Degreasing mode
- Furnace shell and heating material
- Power: AC 1Ψ 110 V or 220 V, 3Ψ 220, 380, 400 or 480 V, 50/60 Hz
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Product Details
- Using a specially designed dewaxing device, sealed well, removable, which can effectively prevent the internal components of pollution;
- Equipped with vacuum degreasing, micro-negative pressure degreasing and micro-positive pressure degreasing function;
- The furnace with temperature, pressure, water pressure, vacuum and other interlocking features, with a high degree of safety protection and preventionfunctions;
- With remote control operation, remote fault diagnosis and remote program updates and other functions.
MAIN TECHNICAL PARAMETERS
Model Inner Size(mm) Max Temp(℃) Ultimate Vacuum(Pa) Temp Uniformity(℃) Leak Rate Pa*L/S Loading Capacity(Kg) LEVDF045 300*300*500 950 3.0*10-1 ±5 ≤0.5 75 LEVDF096 400*400*600 950 3.0*10-1 ±5 ≤0.5 150 LEVDF200 500*500*800 950 3.0*10-1 ±5 ≤0.5 250 LEVDF324 600*600*900 950 3.0*10-1 ±5 ≤0.5 300 LEVDF396 600*600*1100 950 3.0*10-1 ±5 ≤0.5 400 LEVDF588 700*700*1200 950 3.0*10-1 ±5 ≤0.5 600 Power Supply:AC 1Ψ 110V;AC 1Ψ 220V;AC 3Ψ 220V;3Ψ380V; 3Ψ400V; 3Ψ480V+N+G, 60/50Hz. The technical information will be subjected to change without notice Customized Service:Welcome to Non-standard,Special requirements,OEM/ODM orders. Optional configuration
- Furnace: full carbon steel/inner stainless steel/full stainless steel;
- Operation panel: touch screen / industrial computer;
- Optional ultimate vacuum: 2*10-3 Pa.
- Vacuum pump: foreign brand / Chinese brand;
- Temperature Controller;
- Heating material: molybdenum / isostatic graphite.
Vacuum System
- The vacuum system is mainly composed of a two-stage water ring vacuum pump and a rotary vane pump. A filter is installed on the vacuum pipe to filter out impurities in the gas to ensure the ultimate vacuum. The selection of the pump is relatively large, so as to shorten the vacuuming time. The filter can be easily removed and cleaned.
- In order to improve the degree of automation, the valves normally operated on the vacuum pipelines all adopt pneumatic vacuum valves (user-supplied air compressors, rated pressure 0.4-0.6 MPa), requiring simple and convenient operation and high reliability.
- All vacuum pipes are galvanized to reduce material venting rate and improve system vacuum performance.
- The installation position of all instruments must be easy to observe.
Inflatable system
- The vacuum degreasing furnace is equipped with a nitrogen charging device, and a glass rotameter is disposed to adjust the gas flow rate.
- After completing the complete production process, rapid cooling can be achieved by charging with nitrogen and passing through a rapid cycle cooling device.
- The electric contact pressure vacuum gauge is installed on the furnace body to display the pressure inside the furnace, and the intake valve can be automatically closed when the set pressure is reached. At the same time, it is equipped with a safety explosion-proof valve. When over-pressure is applied, it can automatically relieve pressure to ensure safe operation of the system.
- The pressure gauge of the vacuum degreasing furnace is selected from the precision pressure vacuum gauge with a range of -0.1~0.15Mpa.
Furnace Structure
- (The furnace body is a horizontal single-chamber water-cooled jacket structure, the furnace door adopts a sandwich water-cooling sleeve structure, and the outer layer is an ordinary steel plate. The inner layer is SUS304 stainless steel plate, and the flanges at both ends are respectively welded to the cylinder body and the cover of the furnace cover, and the double-opening door structure is adopted, which is convenient for loading and unloading.
- The furnace is composed of stainless steel, high-temperature fiber composite heat insulation screen, Ni-Cr heating element and inner stainless steel corrugated degreasing sealing chamber from the outside to the inside.
- The furnace heat insulation door is installed in the furnace doors at both ends. When the furnace door is closed, the inner heat insulation door seals both ends of the degreased sealing chamber to prevent heat dissipation in the furnace.
- The heating element is connected to the outside through the water-cooled electrode.
Vacuum degreasing furnace use
VDF series vacuum degreasing furnace is mainly used for thermal degreasing of metal injection molded (MIM) parts of materials such as stainless steel (nickel), iron base, titanium, alloy steel and high speed steel. Widely used in medical device parts (dental orthodontic products, live sampling pliers, etc.), mobile phone accessories (metal decorative shell, metal navigation keys, Cato, buttons, buckles, shafts, mobile phone vibrators, etc.), computer accessories and hardware processing And manufacturing.
