Benchtop Liquid Permeameter

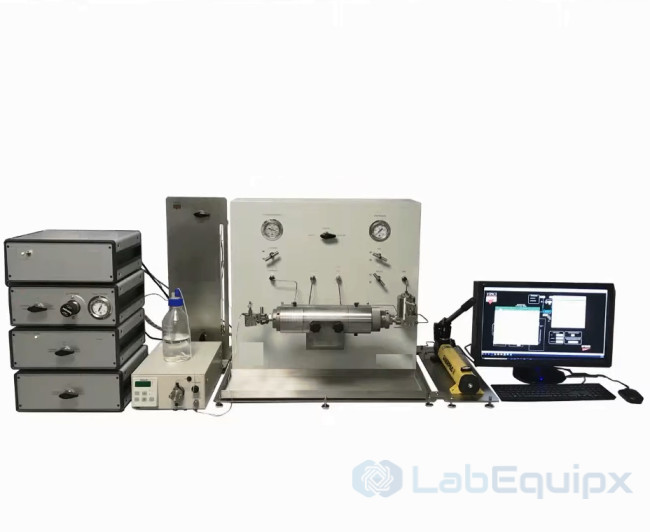

The Benchtop Liquid Permeameter (model CT-RCA-BLP) performs liquid permeability determinations on core plugs at pore pressure in a manually operated benchtop system. It belongs to the routine core analysis range and is intended for laboratories that measure permeability to liquid at ambient temperature with manual control of pressures and flow.

How it works

A core plug of 1 in or 1.5 in diameter and 1 in to 3 in length is loaded in a Hassler-type core holder. Confining pressure up to 350 bar (5,000 psi) is applied to the sleeve, and pore pressure up to 350 bar is set on the flow line. Liquid is passed through the sample while the operator sets pore pressure, liquid flow and differential pressure. Liquid permeability is derived from the measured flow rate and differential pressure across a sample of known dimensions.

The system is specified for nitrogen and water as working fluids. Wetted parts are stainless steel. Tests are run at ambient temperature. Power supply is 110 to 220 VAC, 50 or 60 Hz.

What is included

• Hassler-type core holder for 1 in or 1.5 in diameter plugs, 1 in to 3 in long
• Manual confining pressure, pore pressure and flow controls
• Stainless steel wetted flow path

Specify for your project

• Core plug diameter (1 in or 1.5 in) and the range of plug lengths
• Test liquid, and whether fluids other than water and nitrogen will be used
• Required confining and pore pressure within the 350 bar rating
• Expected permeability range of the samples, for differential pressure instrumentation
• Electrical supply at site within 110 to 220 VAC, 50 or 60 Hz

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Confining pressure: 350 bar (5,000psi)
• Pore pressure: 350 bar (5,000psi)
• Temperature : ambient
• Core diameter: 1" or 1''1/2
• Core length: 1'' to 3''
• Loading type: Hassler
• Wetted material: stainless steel
• Fluid: N2 and water
• Power: 110-220 VAC, 50 or 60 Hz
