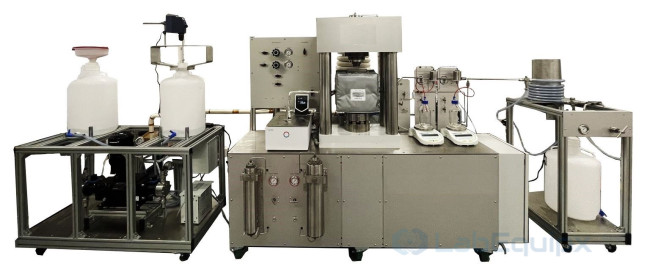

Acid Fracture Conductivity System
Function. Reproduces the acid-fracturing stimulation process in carbonate formations, generating an acid-etching pattern and measuring the resulting conductivity.
Controlled. Closure stress; temperature; acid flow.
Measured. Etched-fracture conductivity.
Pressure and temperature ratings, wetted materials, cell geometry and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.
Model: LEACM3000
Load and flow limits
- Apply closure stress no higher than 20,000 psi.
- The working temperature spans ambient conditions through a conservative ceiling of 350 F.
- The flowing-fluid pressure limit is 3,000 psi.
Test specimen and material
- The specimen measures 7 inches along its length and 1.5 inches across its width.
- The specimen height arrangement is 2 x 3 inches.
- Hastelloy is the specified construction material.
Electrical and gas services
- Use a 220 VAC supply operating at 50Hz or 60Hz.
- Required N2 supply pressure is 2,000 psi.
- The air service must provide 100 psi.
