Compact Vacuum Oven

The Compact Vacuum Oven (model CT-GEO-VAC) dries samples under vacuum in a small, portable bench unit. It is listed under organic geochemistry sample preparation, where samples have to be dried at a set temperature without exposure to air, or under an inert atmosphere, before analysis.

How it works

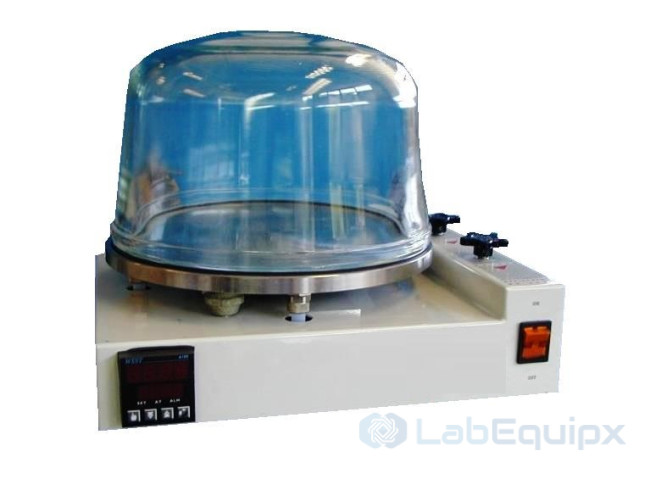

Samples are placed under a glass bell mounted on a stainless steel 316L body. The bell is sealed by a FKM (Viton) O-ring and the chamber is evacuated to 0.001 mm Hg (0.13 Pa). Temperature and vacuum level are the controlled variables. The temperature range is 30 °C to 170 °C with a stated precision of 0.3 percent. The transparent bell gives visual control of the sample during drying, and the chamber can be operated under an inert atmosphere.

The bell has an inside diameter of 230 mm, an inside height of 130 mm and a volume of 5 L. Overall dimensions are 340 x 320 x 270 mm and the unit weighs 13 kg. It is supplied for 220 V, 50 Hz or 110 V, 60 Hz.

What is included

• Stainless steel 316L oven body
• Glass bell, 230 mm inside diameter, 130 mm inside height, 5 L
• Fluoroelastomer O-ring bell seal
• Temperature and vacuum control

Specify for your project

• Sample type, quantity and container size to be dried per batch
• Drying temperature and vacuum level required within the 30 to 170 °C and 0.13 Pa ratings
• Whether a vacuum pump and an inert gas supply are to be included
• Electrical supply at site: 220 V, 50 Hz or 110 V, 60 Hz
• Any wetted material or seal requirement other than stainless steel 316L and FKM (Viton)

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Vacuum: 10-3 mm Hg (0.13 Pa)
• Temperature: 30°C to 170°C (precision 0.3%)
• Material: stainless steel 316L
• Seal: Viton O-ring
• Overall dimensions: 340 x 320 x 270 mm
• Weight: 13 kg
• Inside diameter of bell: 230 mm
• Inside height of bell: 130 mm
• Glass bell volume: 5 l
• Power supply: 220V /50 Hz or 110 V / 60 Hz

Benefits

• User friendly and reliable.
• Light and small.
• Accurate temperature control.
• Allow to work under inert atmosphere.
• Visual control during drying operation.
