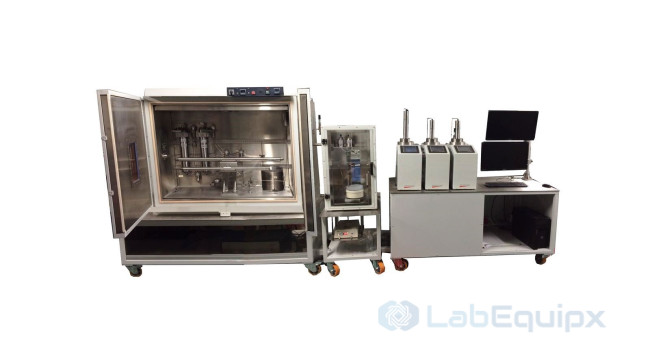

Sand Pack System

Function. Provides an unconsolidated sand-pack porous medium for EOR studies at reservoir temperature and pressure.

Controlled. Pack confinement; pore pressure; temperature; injection rate.

Measured. Differential pressure, produced fluids, recovery.

Pressure and temperature ratings, wetted materials, modules and instrumentation are configured per project. Guaranteed performance and included hardware are stated only in the project-specific technical proposal and approved datasheet.

Features

• Maximum pore pressure: 700 bar (10,000 psi)
• Maximum working temperature: 150°C
• Tube diameter: 1”5 (other upon request)
• Tube length: 100 cm (other upon request)
• Pressure taps: 6 (other upon request)
• Position: Horizontal
• Wetted parts: Stainless steel
• Power supply: 220VAC, 50Hz
• Air Pressure requirements: 7 bar (100 psi)
