Chemical Flooding Core Flood System

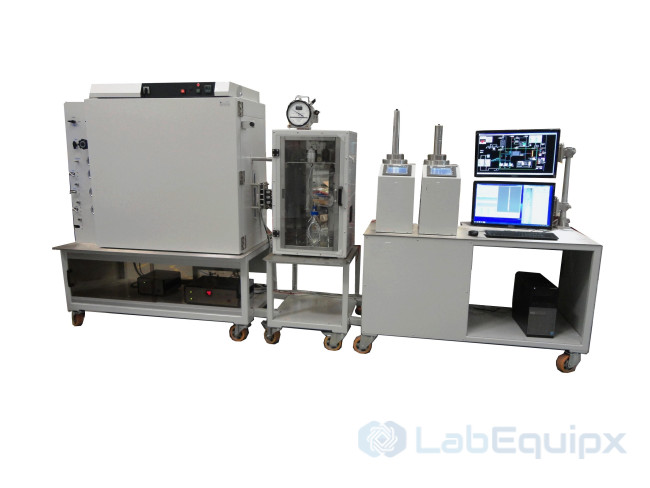

The Chemical Flooding Core Flood System (CT-EOR-CHEM) performs chemical flooding experiments on core plugs, including polymer, alkaline-surfactant and foam flooding, at up to 700 bar (10,000 psi) confining and pore pressure and 150 °C. Displacement is run under reservoir conditions to evaluate polymers, surfactants and alkalis that mobilize trapped oil; the results guide slug design and recovery prediction for chemical EOR.

How it works

The core, 1.5 in diameter and 2 to 6 in long as standard, is held horizontally in a core holder with three pressure taps along its length, so that pressure drop can be followed in sections as the chemical slug advances. Confining pressure, pore pressure, temperature and chemical injection are the controlled variables. Recovery and effluent chemistry are the measured results. Wetted parts are Hastelloy. The system runs on 220 VAC, 50 Hz and needs compressed air at 7 bar (100 psi). Other core sizes and tap counts are supplied on request. An HPHT foam analyzer is offered alongside the system for foam stability work.

What is included

• Horizontal core holder with three pressure taps and Hastelloy wetted parts
• Confining pressure, pore pressure, temperature and chemical injection control
• Instrumentation for recovery and effluent chemistry as stated in the project datasheet

Specify for your project

• Core diameter and length if other than 1.5 in and 2 to 6 in
• Number of pressure taps if other than three
• Maximum working pressure and temperature required
• Chemical systems to be injected: polymer, surfactant, alkali or foam, and their concentrations
• Effluent analysis required
• Supply voltage, frequency and compressed air at the site

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• Maximum confining pressure: 700 bar (10,000 psi)
• Maximum pore pressure: 700 bar (10,000 psi)
• Maximum working temperature: 150°C Core diameter: 1”5 (other upon request)
• Core length: 2 to 6” (other upon request)
• Pressure taps: 3 (other upon request)
• Position: Horizontal
• Wetted parts: Hastelloy
• Power supply: 220VAC, 50Hz
• Air Pressure requirements: 7 bar (100 psi)
