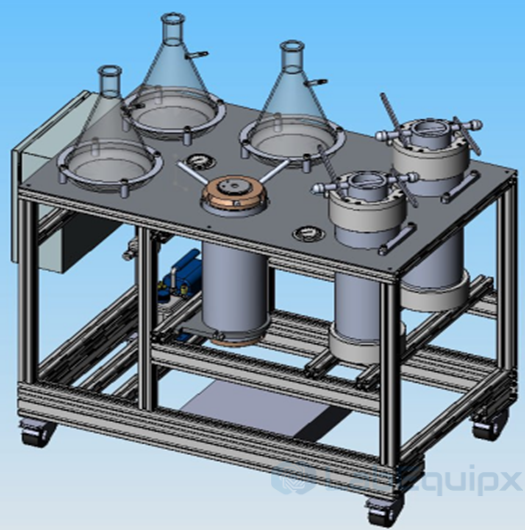

Manual saturator LEMS-2

Operating Conditions

The saturator should be operated indoors;
Ambient temperature from +10 to +30°C;
Relative humidity not exceeding 75%;
Voltage fluctuations not exceeding ±10% of the nominal value.

Technical Features

• Presence of a pneumatic-hydraulic pump for creating pressure in the cell and saturating core samples under pressures of up to 15 MPa.
• The pressure chamber designed for core samples has a large internal diameter for working with full-size cores.
• A set of plugs to fill the dead volume to minimize the required saturation liquid.
• Additional capacity with distilled water for rinsing system elements from saturation liquid.
• Mobile design.
• Components in contact with fluids - stainless steel.
• Sealing material - VITON.

Technical Specifications

1. Number of saturation chambers: 2 units
2. Maximum diameter of samples to be saturated, mm: 110
3. Pressure generated in the saturation chamber, MPa: 15
4. Internal diameter of the saturation chamber, mm: 130
5. Depth of the saturation chamber, mm: 300
6. Saturation chamber volume, liters: 4.1
7. Minimum residual pressure in the saturation chamber, kPa: 0.2
8. Maximum number of samples with d = 30 mm, L = 60 mm, that can be placed in one chamber, units: 90
9. Vacuuming time: Unlimited
10. Hydraulic lines: 1/4"
11. Power supply voltage, V: 220
12. Frequency, Hz: 50±1
13. Power consumption, kW: 1
14. Weight, kg: 200
15. Dimensions W×D×H, mm: 450×1000×1350

Delivery Kit

Installation stand – 1 unit
Saturation chamber (internal diameter 125 mm) – 1 unit
Saturation chamber (internal diameter 42 mm) – 1 unit
Vacuum system – 1 unit
System of connecting pipes, valves, and fittings – 1 unit
Pneumatic-hydraulic pressure raising system – 1 unit
Two sets of plugs to fill the dead volume – 1 unit

Country of Manufacture: United States of America.
