Cold Storage Cold Room LEGCS

Refrigeration and storage room/chamber, Cold Storage Cold Room, Walk In Refrigerator, Freezer Room

Cold storage is used for food, dairy products, meat, aquatic products, such as constant temperature storage air conditioning equipment, cold storage, in fact, a kind of low temperature cold storage, cold storage) also is a kind of refrigeration equipment compared with the refrigerator, the refrigeration area is much larger, but they have the same refrigeration principle.

Cold Storage Cold Room,Walk In Refrigerator,Freezer Room

We are the factory for refrigeration equipment.All of our products can accept customization and OEM, the accessories of the products are UL certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.

Name	instruction	Brand	Material
thermal insulation material	50mm/75mm/100mm/120mm/150mm/200mm	/	PU PANEL
refrigerating system	compressor unit；evaporator；	compressor: BITZER, COPELAND, INVOTEVH	COPPER PIPE ...
control system	elertric control panel	/	/

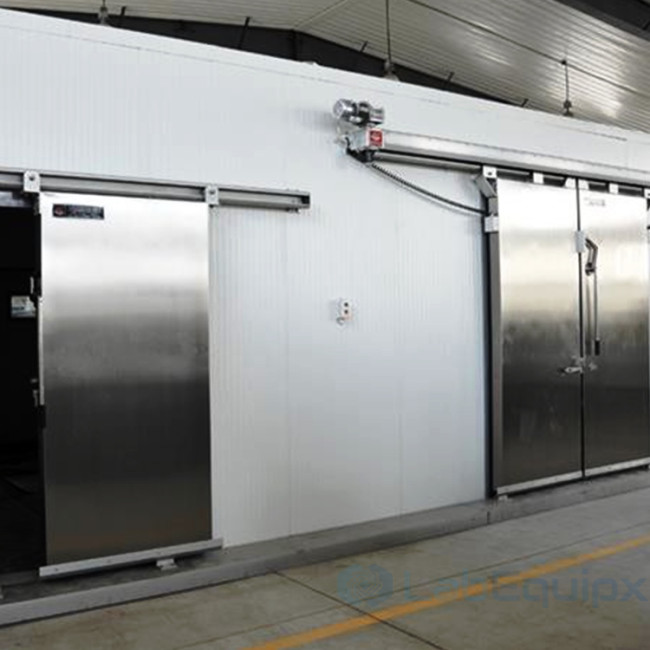

Cold room (freezer room,cold room,cold storage room)

PU sandwich panel
Imported compressor, Tecumseh compressor (or Bizer Compressor), Danfoss Parts

Main Applications:

Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.

Classification temperature:

1,0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
2,-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
3,-10 °C ~ -20 °C: Freezer Storage
4,-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
5,-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze

Components:

Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
Evaporator: KELTESS air-cooler.
Insulation Panel: PU, EPS.
Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG

Cold room features

Modular insulation panel, CAM hook, Installation is simple, easy to install
Refrigeration: R22, R404A, Glycol Secondary Refrigerant
Temperature Range: From 0℃；-20℃；-40℃；-60℃～+70℃（+80℃）
Room Size: According to the customer request design
Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof,
The world famous brand refrigeration fittings
Long life cycle
PID controller, easy to operation and management
Defrost Type: Electric defrosting, Water defrosting
High efficiency and energy saving design

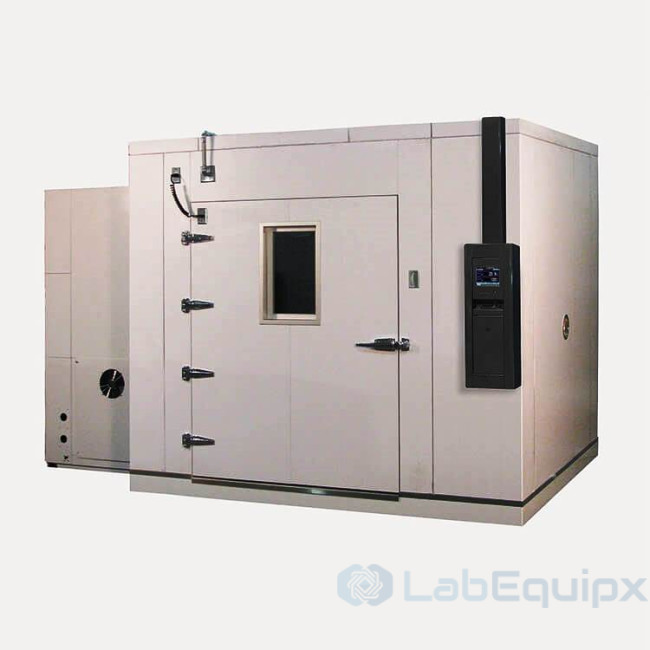

Technical parameters:

Working room(L)			Please kindly give us your request and details,it is custom service.
Inner chamber size(mm)WHD
Temperature Range			0℃；-20℃；-40℃；-60℃～+70℃（+80℃）Classification temperature:1,0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room2,-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,3,-10 °C ~ -20 °C: Freezer Storage4,-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze5,-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
Humidity Range			30～90%RH
Performance Material	Temp.&Humi.Fluctuation		±0.3℃；±2.5%RH
	Temp.&Humi.Uniformity		±0.1℃；±5%RH
	Temp.&Humi.Resolution		0.1℃； 0.1%RH/0.01； 0.1%RH
	Heat up time(20℃~high temp.)	℃	80
		min	50
	Cool down time(20℃~low temp.)	℃	0	-20	-40
		min	55	70	100
	Inner chamber material		SUS＃304 Stainless steel plate+ powder coated
	Exterior chamber material		SUS#304 stainless steel plate
	Insulation Material		Polyurethane foam 100mm(75mm)(50mm)
System	Wind Circulation		Siroco fans
	Heating system		SUS#304 stainless steel high-speed heater
	Humidifying system		Surface evaporating system
	Refrigeration system		Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
	Dehumidifying system		ADP
	Controlling system		TEMI880
Other Components			Vaccum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free)
Safety protection device			Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power Supply			3Ψ 380V 60/50Hz
Customized service			Welcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
