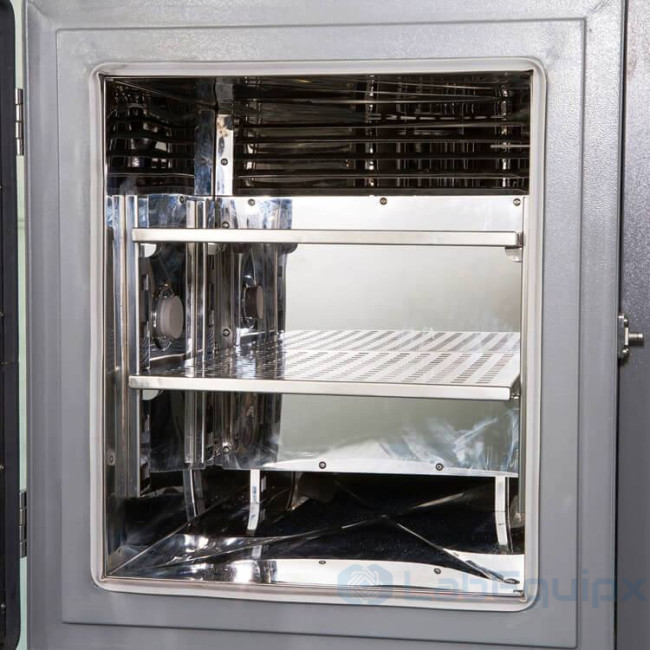

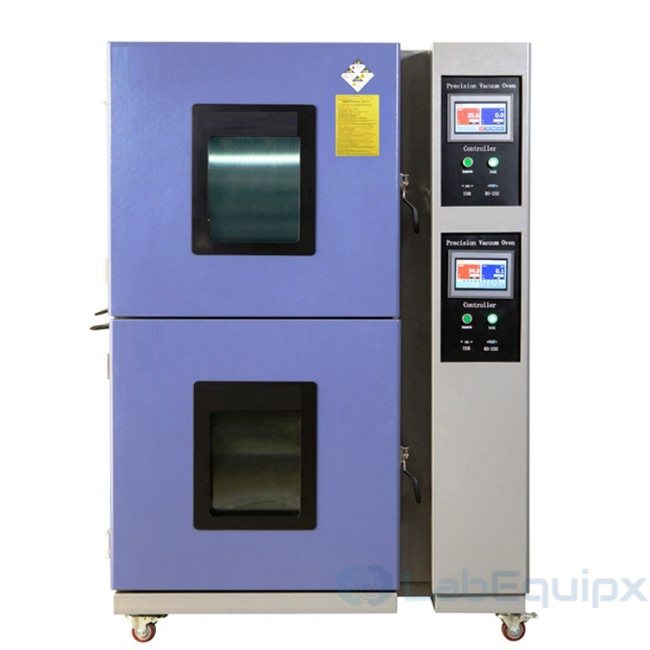

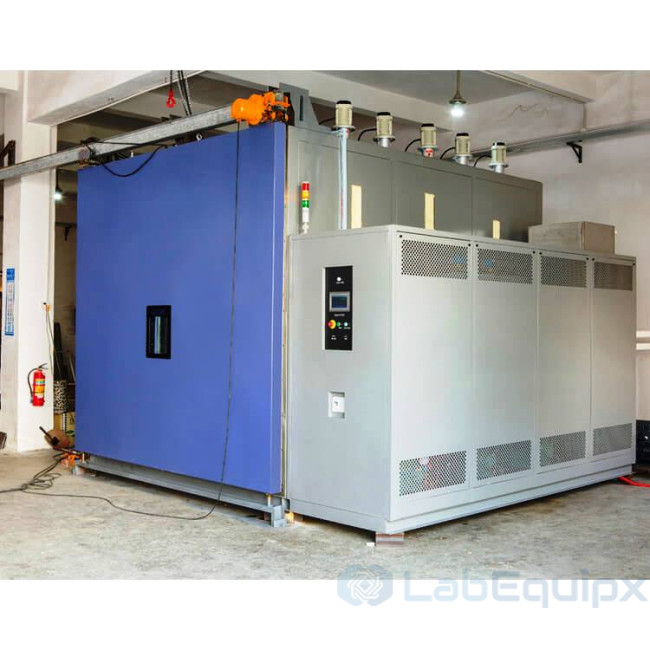

    • Large Walk-in Vacuum Plant and System LEGTHV

    • Large Walk-in Vacuum Plant and System LEGTHV for simultaneous testing of temperature and low-pressure altitude conditions. Two common applications are:

      • Testing of avionics or other aerospace equipment to simulate actual conditions it might experience.
      • Simulation of high-altitude conditions like might be found in mountainous regions.

      NOTE: Altitude test chambers are custom systems, and differing requirements may significantly change the cost and utility requirements.

    • Features

      • Temperature range from -160℃, -150℃,-120℃, -100℃, -80℃,-70℃, -60℃, -40℃, -20℃, 0℃~+150℃, 200℃, 250℃, 300℃,400℃, 500℃, 600℃, 700℃, 800℃, 900℃,1000℃
      • Altitude range from ground to 100,000 feet,or Atmospheric pressure～0KPA;-101KPa;-106KPa;～133pa,0pa;～-0.1MPA;～0mmHg；0.05Torr
      • Optional humidity control when altitude system is off
      • Chamber interior size specified by customer
      • Automatic altitude control, integrated with temperature controller —No manual setting of altitude level!
      • Vacuum pump sized for climb/dive rate required by application
      • Viewing window and cable ports available

      Corresponding Standard of the Temperature and Humidity Test Chamber:

      1. GB10590-89 Low-temperature and low atmospheric pressure testing condition
      2. GB10591-89 High-temperature and low atmospheric pressure testing condition
      3. GB11159-89 low atmospheric pressure technical condition
      4. GB/T2423.25-1992 Low-temperature and low atmospheric pressure test chamber
      5. GB/T2423.26-1992 High-temperature and low atmospheric pressure test chamber
      6. GJB150.2-86 High-temperature and low atmospheric pressure(Altitude) test
      7. IEC60068-2-1.1990 Testing methods of Low-temperature test chambers
      8. IEC60068-2-2.1974 Testing methods of High-temperature test chambers
      9. IEC-540
      10. ASTM D2436
      11. JIS K7212
      12. DIN 50011
      13. BS2648
      14. Mil-Std 202G (conditions 105C, A/B/C/F)
      15. Mil-Std 810G (condition 500.5)
      16. IEC 60068-2-39
      17. IEC 60068-2-40
      18. RTCA/DO-160F
      19. JIS W 0812

      Technical parameters:

      Model No LEGTHV-150LEGTHV-225LEGTHV-408LEGTHV-800 LEGTHV-1000
      Working room(L) 150225408800 1000
      Inner chamber size(mm)W*H*D 500*600*500500*750*600600*850*8001000*1000*800 1000*1000*1000
      Exterior chamber size(mm)W*H*D 1000*1600*14001000*1750*15001100*1850*17001500*2000*1700 1850*1600*2250
      Packaging volume(CBM) 33.54.55.5 6
      G.W.(KGs) 320350400600 700
      PerformanceTemperature range-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃,600℃700℃,800℃,900℃,1000℃
      Testing temperature range-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃,600℃700℃,800℃,900℃,1000℃
      Humidity range20%RH ～98%RH(10%RH ～98%RH or 5%RH ～98%RH)
      Temp.fluctuation±0.5℃（Room pressure）
      Temp.accuracy±2.0℃（Room pressure）
      Heating up time≤60min（+20℃～+150℃、RP、No-Load）
      Cooling down time≤45min(RP)≤60min(RP)≤90min(RP)
      Pressure rangeAtmospheric pressure～0KPA;-101KPa;-106KPa;～133pa,0pa;～-0.1MPA;～0mmHg；0.05Torr
      Final Vacuum1,No loading,≧1*10-5Pa2,Loading,≧1*10-4Pa。
      Pressure control tolerance±0.1kPa(≤2kPa)，±5%(2kPa～40kPa)，±2kPa(≥40kPa)
      Depressurization time≤20min≤25min≤30min ≤45min ≤50min
      Working environmentTemp：+5℃～+35℃；Humidity：≤90%RH；Air pressure：86-106kPa
      Material Exterior chamber materiaStainless steel plate+ powder coated
      Inner chamber materiaSUS#304 stainless steel plate
      Insulation MaterialPU Fiberglass wool
      System Air circulation systemCooling fan
      Heating SystemSUS#304 stainless steel high-speed heater
      Humidification systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
      Dehumidification systemADP critical dew point cooling/dehumidifying method
      Vaccuum systemEquipped with vacuum pump
      Controlling systemTEMI880，990
      Power kw81012 15 20
      Water supplyWater temperature:≤30℃;water pressure:0.2～0.4MPa;flow rate:≥10T/h
      Other componentsSpecimen holders 2pcs,electrical wire 1pc(3M),pressure testing port.
      Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
      Power supplyAC 3Ψ380V 60/50Hz
      Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.

      Optional accessories

      1. Low Humidity and Dehumidifying sytstem.
      2. Inner glass door with manual operating ports.
      3. Temp./Humi.Recorder.
      4. Pure water treatment device5,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
      5. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
      • Large Walk-in Vacuum Plant and System LEGTHV
      • Large Walk-in Vacuum Plant and System LEGTHV
      • Large Walk-in Vacuum Plant and System LEGTHV
      • Large Walk-in Vacuum Plant and System LEGTHV
      • Large Walk-in Vacuum Plant and System LEGTHV
    • Large Walk-in Vacuum Plant and System LEGTHV
    • Large Walk-in Vacuum Plant and System LEGTHV
    • Large Walk-in Vacuum Plant and System LEGTHV
    • Large Walk-in Vacuum Plant and System LEGTHV
    • Large Walk-in Vacuum Plant and System LEGTHV
      ModelLEGTHV
      BrandLabEquipx
