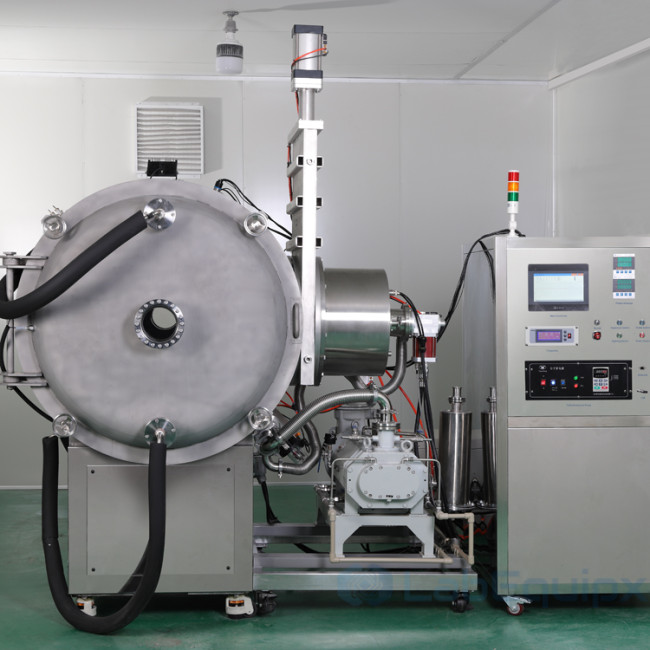

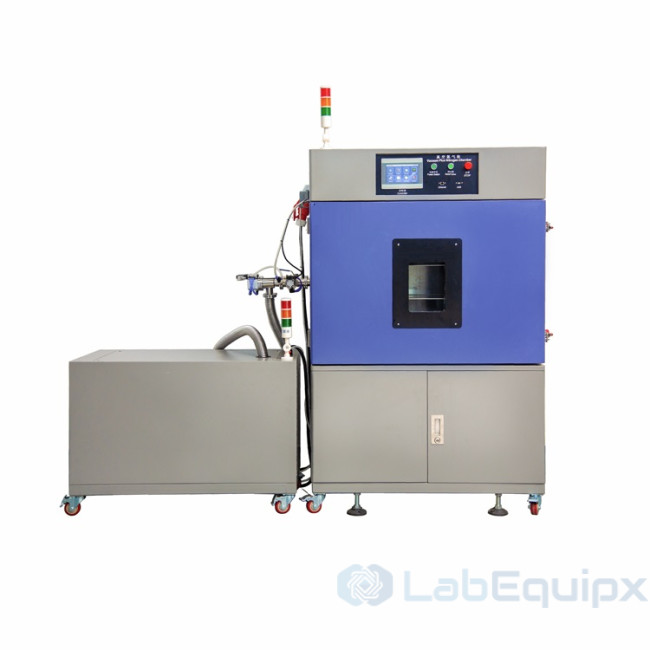

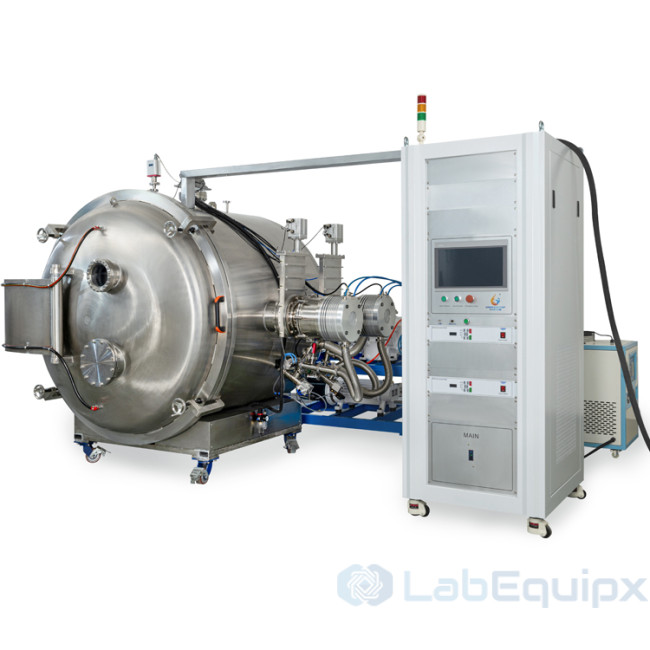

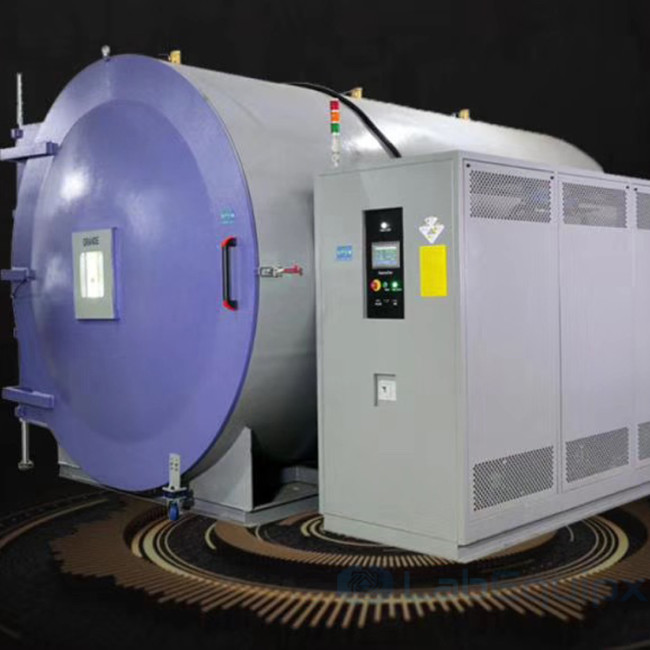

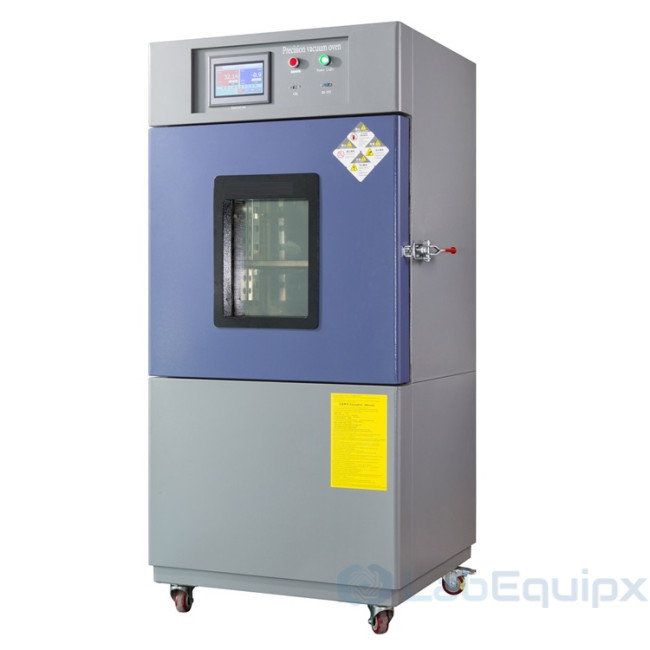

High Vacuum Oven

  • The LEGVO series is a vacuum oven for drying heat-sensitive, easily decomposed and easily oxidized materials under vacuum, with inert gas injection into the chamber. Users in chemical, pharmaceutical, electronics, biochemical, agricultural and environmental work also use it for drying powders and for disinfection and sterilization of glass containers. Seven chamber sizes run from LEGVO-072 to LEGVO-1000.

    Design

    • Chamber: inner case in SUS304 or SUS316L stainless steel; PU and fiberglass wool insulation
    • Door: adjustable door tension with an integral-formed silicone rubber seal
    • Heating: Ni-Cr alloy infrared heater
    • Circulation: optional magnetically coupled motor and fans, or a centrifugal fan for forced convection
    • Feedthroughs: custom-made to order

    Performance

    • Final vacuum: depends on the selected pump, on request
    • Maximum working temperature: up to 350 °C, higher on request
    • Temperature fluctuation ±0.5 °C, resolution 0.1 °C
    • Uniformity ±2 °C at atmospheric pressure, ±10 °C at 1 kPa
    • Heat-up without load: RT+10 °C to 250 °C under 90 min

    Control and vacuum pumps

    A 7 inch or 15 inch PID PLC touch-screen controller stores 120 profiles with up to 1200 steps each and has an Ethernet interface for remote monitoring. USB and RS-485 links to a PC, dry air purge and product temperature feedback are options. The pump is chosen for the target pressure: rotary vane, dry, roots, liquid ring, diffusion, molecular, cryo or ion pump.

    Specify for your project

    • Chamber volume and inner size
    • Maximum working temperature
    • Target vacuum and pump type
    • Inner case material, SUS304 or SUS316L
    • Power: AC 1Ψ 110 V, AC 1Ψ 220 V or 3Ψ 380 V, 50/60 Hz
    ModelVolume, LInner W x H x D, mm
    LEGVO-07272450 x 400 x 400
    LEGVO-100100400 x 500 x 500
    LEGVO-270270600 x 750 x 600
    LEGVO-480480800 x 800 x 750
    LEGVO-6006001000 x 800 x 750
    LEGVO-7207201000 x 720 x 1000
    LEGVO-100010001000 x 1000 x 1000

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • High Vacuum Oven
    • High Vacuum Oven
    • High Vacuum Oven
    • High Vacuum Oven
    • High Vacuum Oven
    • High Vacuum Oven
  • Vacuum Oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive, easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.

    Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances, it is able to inject inert gas internally, in Particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.

    High quality materials,Good sealed,Convenient and Practical

    Material of outer case The housing is stainless steel plate, powder coated;Material of inner case Imported high-grade stainless steel (SUS304 or SUS316L).

    Special structure,Durable and operate easily

    • The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
    • Door handle: Introduce the door handle without counteraction for easy operation.

    High performance, efficiency and speed

    • Introducing IR Ni-Cr alloy high-speed heating electric heater

    Feedthroughs

    • Custom-made feedthoughs and Options are acceptable.
    • Drawing and Pictures for reference only.

    Optional accessories

    USB,RS-485 interface can be linked to Personal Computer(PC) and achieve multi-level control & recording software management.

    Technical Parameters:

    Model NoLEGVO-072LEGVO-100LEGVO-270LEGVO-480LEGVO-600LEGVO-720LEGVO-1000
    Volume(L)72100
    2704806007201000
    Inner chamber size(mm)W*H*D 450*400*400400*500*500600*750*600800*800*7501000*800*7501000*720*10001000*1000*1000
    Exterior chamber size(mm)W*H*D900*1550*550900*1650*8001100*1600*6501200*1700*8401400*1750*8401750*1750*12001750*1750*1500
    Temperature rangeRT+10℃~+150℃,200℃,300℃,350℃, Customization is available
    Vacuum LimitAtmospheric pressure to 1 kPa, 133 Pa, 100 Pa or 1 Pa depending on the pump; higher vacuum on request
    Final VacuumDepends on the selected pump, on request
    PerformanceTemperature Fluctuation±0.5℃

    Temperature UniformityAtmospheric pressure:±2℃.1kPa Vacuum state:±10℃.(Options:±5℃,±10℃,±15℃,±30℃)

    Temperature Resolution0.1℃

    Heating up TimeRT+10℃~250℃<90min(Nonlinear,No load)
    MaterialExterior Chamber MaterialStainless steel plate+ Power Coated

    Inner Chamber MaterialSUS#304 or SUS316L stainless steel

    Insulation MaterialPU& Fiberglass wool
    SystemCirculation System1.Magnetically coupled motor & fans(Options)High Vacuum Oven 2.Multi-wing centrifugal circulating fan,strengthen axis and hot cold resistance  rotary vane  make of aluminum alloy,in order to forced convection.4.FLOW THROW Air Supply Method,level diffuse vertical heat exchange arc circulation.4.Program automatic control high speed air cylinder drive high low temperature air supply valve conversion.

    Heating SystemSUS#304 stainless steel high-speed heater

    Controller7Inch or 15 Inch PID PLC ControllerPopular PID PLC controller with touch-screen operationStores 120 different profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)Step types include: ramp, soak, jump, auto-start, and endEthernet interface for remote monitoring and operationRECOMMENDED OPTIONSDry air purge, to compensate for quickly shrinking air during cooling, as well as to reduce risk of condensation.Product temperature control, allows feedback from a second sensor on the product. Ensures faster completion of transition steps.

    Vaccuum SystemEquipped with vacuum pumpMicro Dry PumpOiled Sealed Vacuum PumpDual Stage Rotary Vane Vacuum PumpDry PumpRoots PumpLiquid Ring Vacuum PumpDiffusion pump Molecular PumpCryo PumpIon PumpCentral Vacuum Unit.,etc
    Other Componentscontrol status indicator lights, loading shelves(2pcs for free)
    Safety Protection DeviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
    Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized ServiceWelcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc.
    The technical information will be subjected to change without notice
