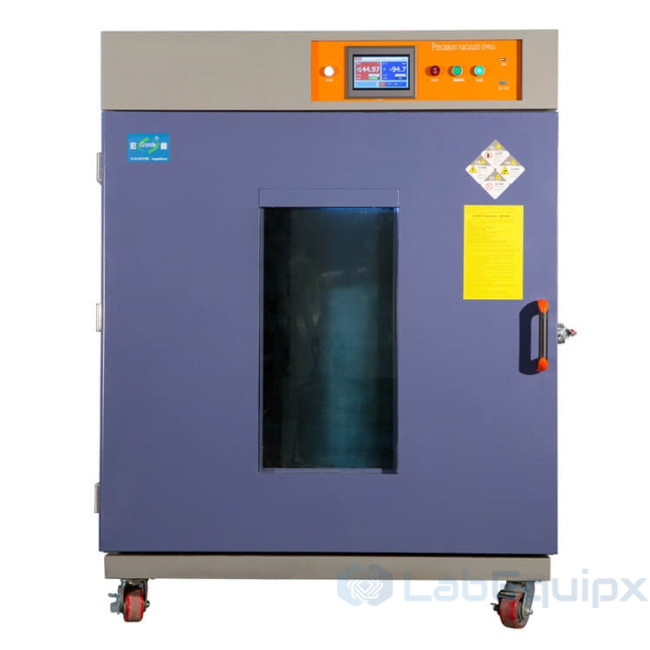

Industrial Nitrogen Oven

  • Drying and curing under nitrogen keeps parts and materials from oxidizing, and the LEGNO series does this in cabinet volumes from 72 to 720 liters. The oven purges the working chamber with nitrogen while it heats. Electronics, medical, instrument and research laboratories, universities and factories use it for oxidation-free drying of components and materials.

    Design

    The inner chamber is SUS304 stainless steel plate; the exterior is powder-coated steel plate, insulated with PU and fiberglass wool. A SUS304 high-speed heater and a sirocco fan circulate heated gas through the load. Nitrogen enters through a pre-heated gas manifold, which keeps the temperature uniform during gas flow; a nitrogen flow meter and a differential pressure gauge show purge flow and chamber overpressure. A tempered glass window gives a view of the load, and a 50mm cable port allows sensor leads into the chamber.

    Temperature fluctuation is ±0.3℃ and resolution is 0.1℃/1℃. Heating time is 100℃/30min. Control is by touch-screen or PID controller with solid state relay. Protection includes a high-temperature cut-out, over-heat protection breaker and control system overload protection. Two loading shelves are supplied. Horizontal-type units place controller and blower to the right of the chamber; vertical-type units place them on top, with air distributed horizontally from the back wall.

    ModelVolume, LInner W x H x D, mmExterior W x H x D, mm
    LEGNO-07272450 x 400 x 400900 x 1050 x 550
    LEGNO-270270600 x 900 x 5001100 x 1600 x 650
    LEGNO-480480800 x 1000 x 6001200 x 1700 x 840
    LEGNO-6006001000 x 1000 x 6001400 x 1750 x 840
    LEGNO-7207201200 x 1000 x 6001750 x 1750 x 840

    Options

    • USB or RS-232 interface for PC control and recording
    • Custom inner chamber size and temperature range

    Specify for your project

    • Chamber volume, 72 to 720 liters
    • Maximum operating temperature
    • Horizontal or vertical type
    • Nitrogen supply and purge flow
    • Power supply: AC 1-phase 110 V or 220 V, or 3-phase 380 V, 60/50 Hz

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Industrial Nitrogen Oven
    • Industrial Nitrogen Oven
    • Industrial Nitrogen Oven
    • Industrial Nitrogen Oven
    • Industrial Nitrogen Oven
  • Product Details

    • Indoor temperature +10℃~50℃, 100℃,150℃,200℃,250℃,300℃,350℃, Customization is available
    • Nitrogen oven is a new type of anaerobic electric oven, can meet the electronics, medical and health care, instruments and meters, factories, institutions of higher learning, scientific research departments for no oxidation drying requirements.


    Features

    • Heavy-duty construction allows efficient, high-temperature operation for heavy throughput
    • Pre-heated gas manifold guarantees temperature uniformity during gas flow
    • Includes high-temperature cut-out for safe operation
    • Tempered glass window permits full viewing of contents

    Model types:

    • Horizontal-type: Controller and blower to the right of the chamber
    • Vertical-type: Controller and blower at the top of the chamber (air distributed horizontally from back wall)

    Optional accessories

    USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

    Technical parameters:

    Model NoLEGNO-072LEGNO-270LEGNO-480LEGNO-600LEGNO-720
    Volume(L)72270480600720
    Inner chamber size(mm)W*H*D 450*400*400600*900*500800*1000*6001000*1000*6001200*1000*600
    Exterior chamber size(mm)W*H*D900*1050*5501100*1600*6501200*1700*8401400*1750*8401750*1750*840
    Temperature rangeIndoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,Customization is available
    PerformanceTemperature fluctuation±0.3℃
    Temperature resolution0.1℃/1℃
    Heating up time100℃/30min
    MaterialExterior chamber materialStainless steel plate+ Power Coated
    Inner chamber materialSUS#304 stainless steel plate
    Insulation MaterialPU& Fiberglass wool
    Systemcirculation systemSirocco fan
    Heating systemSUS#304 stainless steel high-speed heater
    Nitrogen systemEquipped with Nitrogen flow meter and differential pressure gauge.
    ControllerTouch-screen controller or PID temperature controller+ S.S.R.
    Other ComponentsCable port(50mm), control status indicator lights, loading shelves(2pcs for free)
    Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
    Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized serviceWelcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.
    The technical information will be subjected to change without notice
