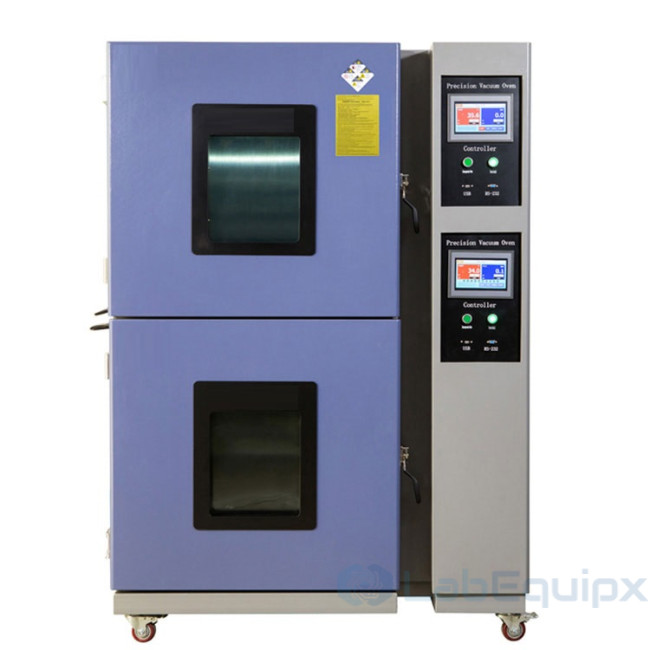

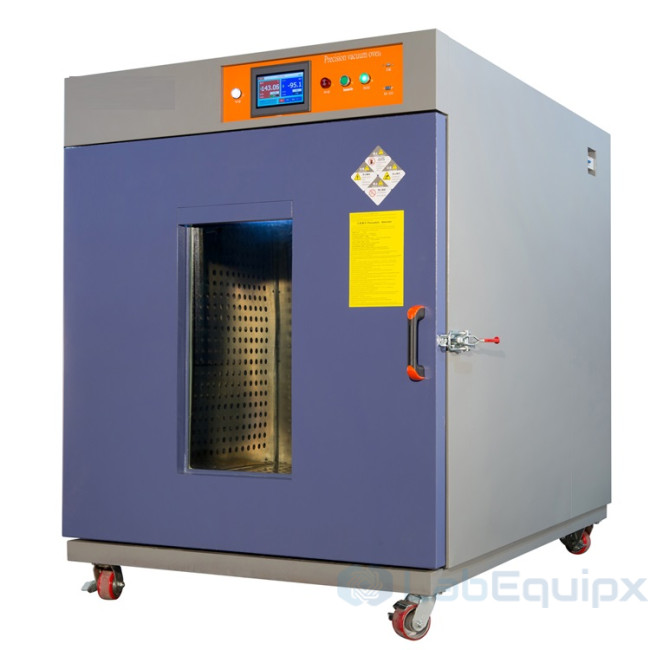

Water Ring Vacuum Drying Oven LEGVO

Liquid Water Ring Vacuum Drying Oven.

Vacuum Limit:Atmospheric pressure～3KPa.

Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃, 300℃,350℃,500℃,600℃,700℃, 800℃, 900℃,1000℃, 1200℃,1400℃,1600℃,1800℃, 2000℃, 2500℃, 3000℃,Customization is available

Attractive appearance,widely use,Safe and reliable

Precision vacuum oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive,easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.

Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances, it is able to inject inert gas internally, in particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.

High quality materials,Good sealed,Convenient and Practical

Material of outer case The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;Material of inner case Imported high-grade stainless steel (SUS304).
Special structure,Durable and operate easily
The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
Door handle: Introduce the door handle without counteraction for easy operation.

High performance,efficiency and speed

Introducing IR Ni-Cr alloy high-speed heating electric heater
Totally independent high-temperature system shall not affect low temperature test, high temperature test and alternating hot and humid test.
The output power of temperature & humidity control shall be calculated by micro computer to achieve electricity use benefits of high precision and high efficiency.

Optional accessories

USB,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

Technical parameters:

Model No		LEGVO-072	LEGVO-100	LEGVO-270	LEGVO-480	LEGVO-600	LEGVO-720	LEGVO-1000
Volume(L)		72		270	480	600	720	1000
Inner chamber size(mm)WHD		450400400	400500500	600750600	800800750	1000800750	10007201000	100010001000
Exterior chamber size(mm)WHD		9001550550	9001650800	11001600650	12001700840	14001750840	175017501200	175017501500
Temperature range		RT+10℃~+200℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,2500℃,3000℃,Customization is available
Vacuum degree		Atmospheric pressure～3KPa
Final Vacuum		Atmospheric pressure～3KPa
Performance	Temperature fluctuation	±0.5℃
	Temperature Uniformity	Atmospheric pressure:±2℃.-98Kpa Vacuum state:±50℃.(Options:±5℃,±10℃,±15℃,±30℃)
	Temperature resolution	0.1℃
	Heating up time	RT+10℃～250℃<90min(Nonlinear,No load)RT+10℃～400℃<120min(Nonlinear,No load)
Material	Exterior chamber materia	Stainless steel plate+ Power Coated
	Inner chamber material	SUS#304 stainless steel plate
	Insulation Material	PU& Fiberglass wool
System	circulation system	Sirocco fan
	Heating system	SUS#304 stainless steel high-speed heater
	Controller	Touch-screen controller or Omron E5AZ controller+ S.S.R.
	Vaccuum system	Equipped with vacuum pump
Other Components		control status indicator lights, loading shelves(2pcs for free)
Safety protection device		Over-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
Power Supply		AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service		Welcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc.
The technical information will be subjected to change without notice
