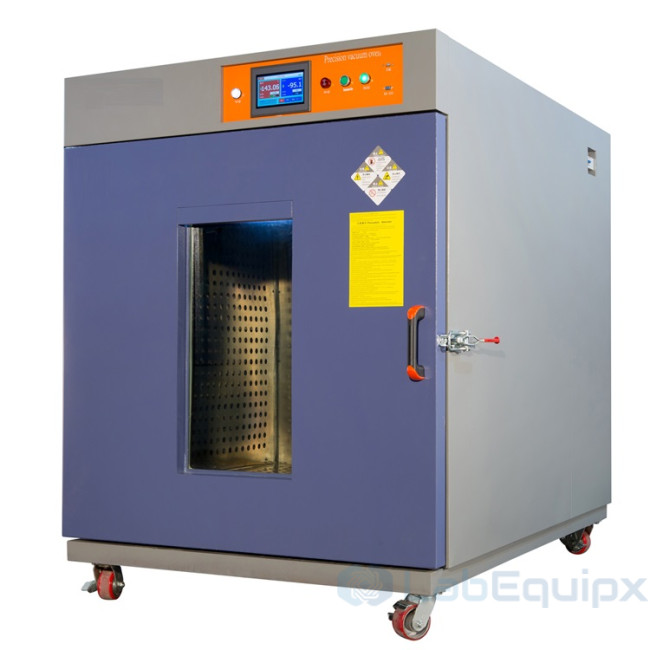

Cabinet Vacuum Drying Oven

  • The LEGVO series are cabinet vacuum drying ovens, from 72 to 1000 liters, for drying heat-sensitive, easily decomposed or easily oxidized materials at reduced pressure. Laboratories and production units in chemistry, pharmaceuticals, electronics, biochemistry, agriculture and environmental work use them for powder drying and baking, and for sterilizing glass containers. Inert gas can be injected into the chamber during drying.

    Design

    The inner chamber is SUS304 stainless steel plate; the exterior is powder-coated steel plate, and insulation is PU and fiberglass wool. A high-speed heater with a sirocco circulation fan heats the load. The door tension is adjustable and a one-piece silicone rubber seal holds vacuum. The oven comes with a vacuum pump and reaches from atmospheric pressure down to 3 kPa.

    Control is by a touch-screen controller or a PID controller with solid state relay. Temperature fluctuation is ±0.5℃ and resolution is 0.1℃. At atmospheric pressure uniformity is ±2℃. Heating from RT+10℃ to 250℃ takes less than 90 min without load. Safety devices include an over-heat protection breaker and control system overload protection with indicator lamp. Two loading shelves are supplied.

    ModelVolume, LInner W x H x D, mmExterior W x H x D, mm
    LEGVO-07272450 x 400 x 400900 x 1550 x 550
    LEGVO-100100400 x 500 x 500900 x 1650 x 800
    LEGVO-270270600 x 750 x 6001100 x 1600 x 650
    LEGVO-480480800 x 800 x 7501200 x 1700 x 840
    LEGVO-6006001000 x 800 x 7501400 x 1750 x 840
    LEGVO-7207201000 x 720 x 10001750 x 1750 x 1200
    LEGVO-100010001000 x 1000 x 10001750 x 1750 x 1500

    Options

    • USB or RS-485 interface for PC control and data recording
    • Custom inner chamber size and temperature range

    Specify for your project

    • Chamber volume, 72 to 1000 liters
    • Maximum drying temperature
    • Required vacuum level, down to 3 kPa
    • Inert gas purge, if needed
    • Power supply: AC 1-phase 110 V or 220 V, or 3-phase 380 V, 60/50 Hz

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Cabinet Vacuum Drying Oven
    • Cabinet Vacuum Drying Oven
    • Cabinet Vacuum Drying Oven
    • Cabinet Vacuum Drying Oven
    • Cabinet Vacuum Drying Oven
  • Attractive appearance,widely use,Safe and reliable

    Precision vacuum oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive,easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.

    Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances, it is able to inject inert gas internally, in particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.

    High quality materials,Good sealed,Convenient and Practical

    Material of outer case The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;Material of inner case Imported high-grade stainless steel (SUS304).

    Special structure,Durable and operate easily

    • The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
    • Door handle: Introduce the door handle without counteraction for easy operation.

    High performance,efficiency and speed

    • Introducing IR Ni-Cr alloy high-speed heating electric heater
    • Totally independent high-temperature system shall not affect low temperature test, high temperature test and alternating hot and humid test.
    • The output power of temperature & humidity control shall be calculated by micro computer to achieve electricity use benefits of high precision and high efficiency.

    Optional accessories

    USB,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

    Technical parameters:

    Model NoLEGVO-072LEGVO-100LEGVO-270LEGVO-480LEGVO-600LEGVO-720LEGVO-1000
    Volume(L)72100
    2704806007201000
    Inner chamber size(mm)W*H*D 450*400*400400*500*500600*750*600800*800*7501000*800*7501000*720*10001000*1000*1000
    Exterior chamber size(mm)W*H*D900*1550*550900*1650*8001100*1600*6501200*1700*8401400*1750*8401750*1750*12001750*1750*1500
    Temperature rangeRT+10℃~+200℃,300℃,350℃,Customization is available
    Vacuum degreeAtmospheric pressure~3KPa
    Final VacuumAtmospheric pressure~3KPa
    PerformanceTemperature fluctuation±0.5℃
    Temperature UniformityAtmospheric pressure:±2℃.(Options:±5℃,±10℃,±15℃,±30℃)
    Temperature resolution0.1℃
    Heating up timeRT+10℃~250℃<90min(Nonlinear,No load)
    MaterialExterior chamber materiaStainless steel plate+ Power Coated
    Inner chamber materialSUS#304 stainless steel plate
    Insulation MaterialPU& Fiberglass wool
    Systemcirculation systemSirocco fan
    Heating systemSUS#304 stainless steel high-speed heater
    ControllerTouch-screen controller or PID controller + S.S.R.
    Vaccuum systemEquipped with vacuum pump
    Other Componentscontrol status indicator lights, loading shelves(2pcs for free)
    Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
    Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized serviceWelcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc.
    The technical information will be subjected to change without notice
