    • Precision Hot Air Class 100/Class 1000 Clean Ovens LEGIOC

    • Includes a HEPA filter to maintain cleanliness.

      These models are used extensively in heat treatment/drying or burn-in of semiconductor wafers, liquid crystals, disks,mining, medical, pharmacy, biology, electric, chemical industry, scientific research and other components and devices requiring clean air conditions.

    • Indoor temperature

      +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,Customization is available.

      It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.

      These units can also be prepared for installation in clean-room environments. Class 100 or Class 1000 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance models (with MS suffix) provides stable performance even during heat-up or cooling.

      Features

      • Heat-resistant HEPA filter
      • Clean meter indicates when filter needs replacement
      • Compact vertical design
      • SUS#304 Stainless steel interior
      • Controller with large LED display
      • Two-step programmability with functions for automatic start, stop, ramp, and repeat
      • Visual and audible alarm with diagnostic fault code
      • Two-step programmability with functions for automatic start, stop, ramp, and repeat
      • Specimen power supply control terminal--turns specimen off if chamber faults
      • Four-tiered safety system for overheat conditions
      • Two shelves included standard, rated for 40 lbs. or more

      Optional accessories

      USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

      Technical parameters:

      Model NoLEGIOC-072LEGIOC-270LEGIOC-480LEGIOC-600LEGIOC-1000
      Volume(L)72270480600720
      Inner chamber size(mm)W*H*D 450*400*400600*900*500800*1000*6001000*1000*6001200*1000*600
      Exterior chamber size(mm)W*H*D900*1050*5501100*1600*6501200*1700*8401400*1750*8401750*1750*840
      Temperature rangeIndoor temperature +10℃～+200℃,300℃,500℃,600℃,700℃,Customization is available
      PerformanceTemperature fluctuation±0.3℃
      Temperature Uniformity±1℃
      Temperature resolution0.1℃
      Dustproof classClass 100,Class 1000
      Heating up tim30min
      MaterialExterior chamber materiaStainless steel plate+ Power Coated
      Inner chamber materialSUS#304 stainless steel plate(SUS#201 when max temperature is below 200℃
      FiltersHEPA Filters
      Insulation MateriaPU& Fiberglass wool
      Systemcirculation systemSirocco fan
      Heating systemSUS#304 stainless steel high-speed heater
      Controller Touch-screen controller or Omron E5AZ controller+ S.S.R.

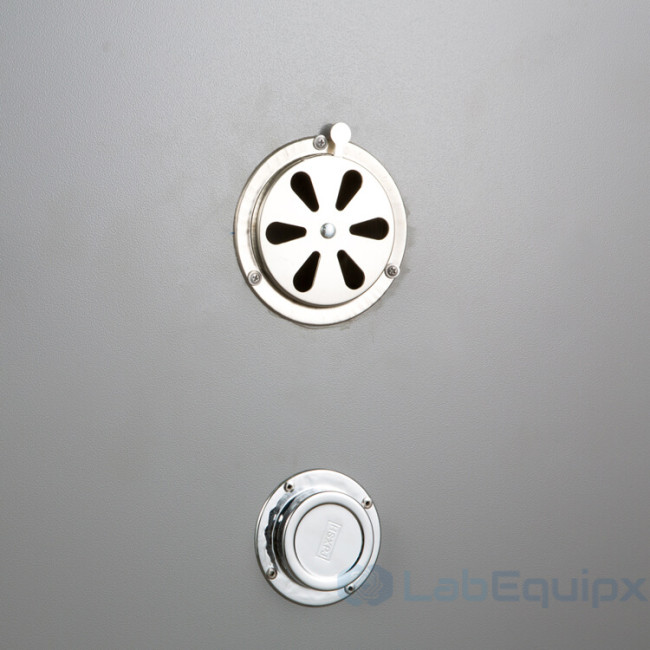

      Other ComponentsCable port(50mm), control status indicator lights, loading shelves(2pcs for free)
      Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
      Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
      Customized serviceWelcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.
      The technical information will be subjected to change without notice
