LEMVOC

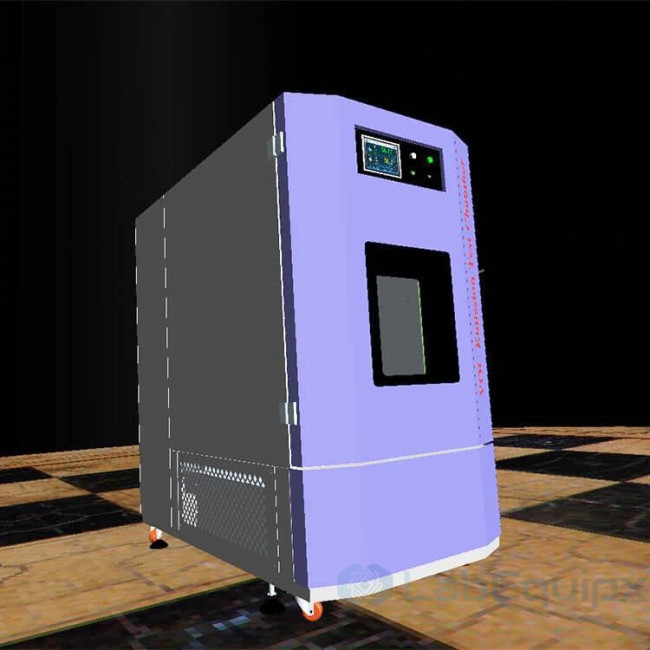

Micro VOC Emission Test Chamber LEMVOC
Application of Micro VOC Emission Test Chamber LEMVOC
- Test the concentration of VOC and SVOC in materials and products for regular quality control
- Test radioactive materials
- Test the content of water steam permeated into the material when temperature changes
- Analyze components of essences and spices
- Confirm technical data of volatile matters and molecular materials
- Compare characteristics of different products within an effective range
- Exam properties of prototypes
- Ensure consistent product quality and property.
Advantages of Micro VOC Emission Test Chamber LEMVOC
- The coated stainless steel wall improves the adsorption capacity of LEMVOC test chamber for high-boiling-point materials and polar compounds.The recovery rate of tetradecane and 4-phenyl-1-cyclohexene can achieve more than 80%.
- The micro LEMVOC emission chamber provides standard testing environment and main testing items include LEMVOCconcentration,SVOC concentration,water content and so forth.
This micro LEMVOC emission chamber adopts ISO 12219-3:2012 (en) screening chamber and the testing object.The technology helps to reduce the surface adhesive fore,largely reducing LEMVOC’s adhesiveness on chamber’s interior wall.In this way,the testing result of samples stored in the sampling bag is more close to the result of testing object in chamber,and the testing precision of emission chamber is largely improved.
Technical Parameters of Micro VOC Emission Test Chamber LEMVOC
Model LEMVOC-4 LEMVOC-6 LEMVOC-8 Environment temperature 5℃~35℃ Environment humidity ≤90%RH Environment requirement TVOC≤500ug/m³ Volume Ф64×H34mm,116ml Sample holders 6 (4/6/8 optional) Temperature adjustment range 60℃~200℃,more than 260℃ for high-temperature cleaning Humidity adjustment range (Optional) 5%RH(65℃) Pressure 10±5pa Temperature fluctuation ±0.3℃ Temperature deviation ±1℃ Humidity fluctuation (Optional) ±2.5%RH Humidity deviation (Optional) 3% Air exchange rate 105~00 times/h,±5% Air flow 10~500mL/min Power supply AC 220V/50Hz Start-up power 3kw Running power 1.5kw Size of climate chamber W580×D890×H1050mm Background concentration of formaldehyde Less than 15ug/m³,minimum value:6ug/m³ Background concentration of LEMVOC Single LEMVOC:less than 2ug/m³,TVOC:less than 20ug/m³ Recovery rate More than 80% Pressure of air purification system More than 1.0Mpa Cooling method Air cooling Controller Mitsubishi,color touchscreen human-computer interface We have produced an adjustment device for dynamic adjustment of the air content in the mixing box to effectively control the humidity of the air in mixing box.Micro LEMVOC emission test chamber is the only product in the market that achieves humidity control.
| Model | LEMVOC |
| Brand | LabEquipx |
