LEWTC

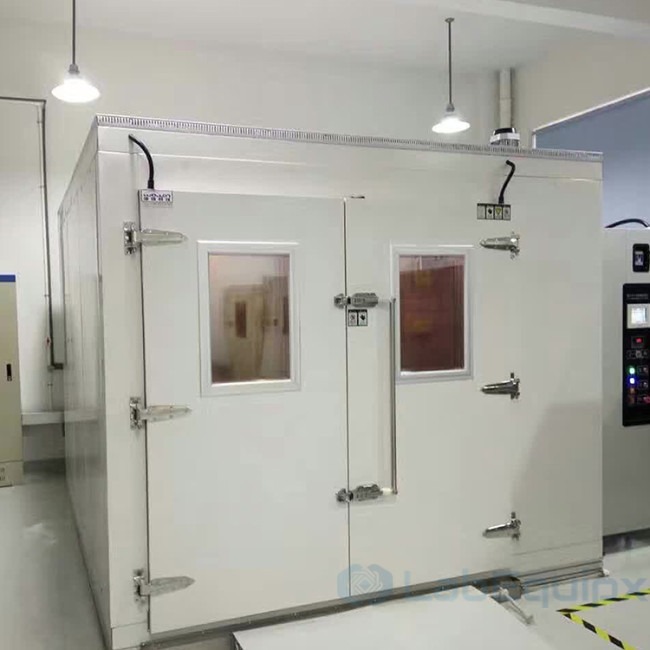

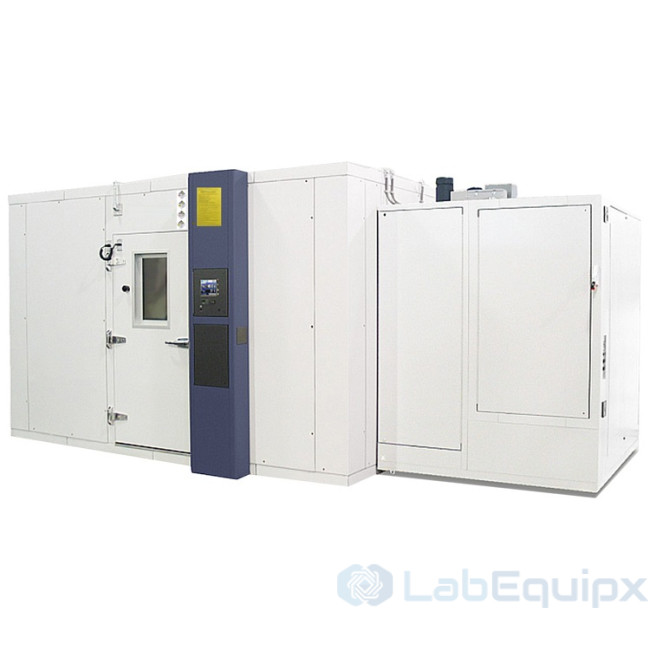

Walk-in Test Chamber LEWTC
Walk-in Test Chamber LEWTC - standard air conditioning systems, called Modular Air Plenums (MAP). These MAPs are designed with the proper heating, refrigeration, and humidity control to achieve your desired performance and capabilities. The MAP simply rolls-up to an assembled panel chamber to complete installation.
Walk-in Climate Chambers/rooms
- Especially designed for steady-state operation
- Stability walk-in rooms are designed for light-duty testing or long-term steady-state evaluation of pharmaceuticals and other products.
Panelized Chamber/Room
Our panelized walk-in chambers use urethane-foam panels in a stainless steel or galvanized interior skin. The panels are locked together with internal cam latches. This is the same construction used for walk-in coolers in restaurants and supermarkets, but of a higher quality.
Features
- PID controller
- Stainless steel interior (or galvanized for savings)
- Painted galvanized steel exterior for long life
- MAP service doors are hinged (no tools or lifting)
- Easy access to components
- Reliable steam generator system for humidity applications
- Sheathed electric heaters for safety and reliability
- Adjustable vanes in supply grille allow directing of airflow as needed
Technical parameters:
Working room(L) Please kindly give us your request and details,it is custom service. Inner chamber size(mm)W*H*D Temperature Range 0℃；-20℃；-40℃；-60℃～+120℃（+120℃） Humidity Range 20～90%RH Performance Temp.&Humi.Fluctuation ±0.3℃；±2.5%RH Temp.&Humi.Uniformity ±0.1℃；±5%RH Temp.&Humi.Resolution 0.1℃； 0.1%RH/0.01； 0.1%RH Heat up time(20℃~high temp.) ℃ 80 min 50 Cool down time(20℃~low temp.) ℃ 0 -20 -40 min 55 70 100 Material Inner chamber material Stainless steel plate+ powder coated Exterior chamber material SUS#304 stainless steel plate Insulation Material Polyurethane foam 100mm(75mm)(50mm) System Wind Circulation Siroco fans Heating system SUS#304 stainless steel high-speed heater Humidifying system Surface evaporating system Refrigeration system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser Dehumidifying system ADP critical dew point cooling/dehumidifying method Controlling system Digital electronic indicators+S.S.R.With PID automatic calculation capability Other Components Vaccum glass inspection window, cable port(50mm), control status indicator lights,
chamber lamp, loading shelves(2pcs for free)Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. Power Supply 3Ψ 380V 60/50Hz Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice
| Model | LEWTC |
| Brand | LabEquipx |
