Thermal Vacuum Chamber

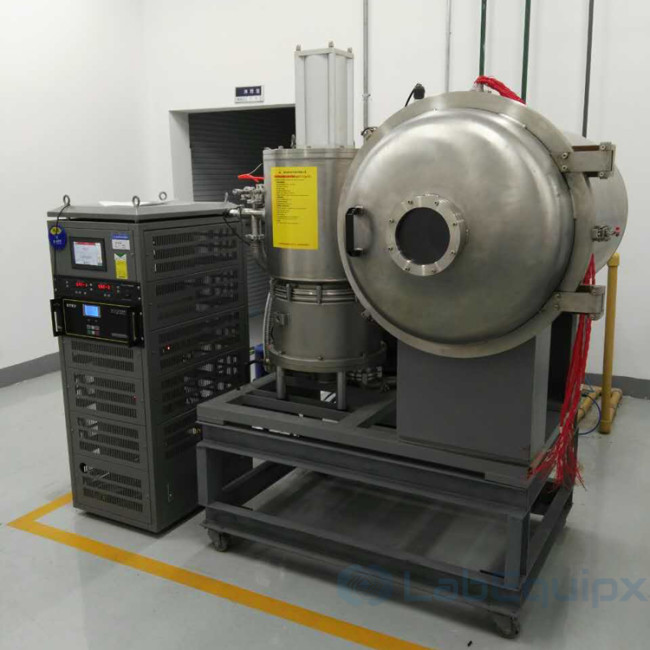

  • The LEVC is a cylindrical thermal vacuum chamber for thermal vacuum cycling of satellite systems and other space hardware. A pumped vacuum vessel with a temperature-controlled thermal shroud reproduces the vacuum and thermal load of orbit, so test engineers can check that a device under test (DUT) survives the space environment before flight. The family runs from LEVC-500 to LEVC-3000, named by working diameter in mm.

    Design

    The chamber body is a cylinder on a supporting structure, built in horizontal or vertical layout. Inside sits a thermal shroud whose working space is sized to the project. The shroud carries a DUT base plate on rails, so the plate slides partly out of the chamber when the door is open. A lamp or LED with an ON/OFF switch lights the DUT for observation through the view port.

    • Vacuum: no-load ultimate vacuum of 1×10⁻⁵ Pa for LEVC-500 to LEVC-2500 and 5×10⁻⁵ Pa for LEVC-3000. Venting from vacuum takes less than 20 minutes with clean air through a 5-micron filter.
    • Cooling: liquid nitrogen circulates in the shroud for temperatures from -190 °C up to 200 °C. Refrigeration methods: liquid refrigerant, refrigerating machine, nitrogen gas temperature control or bath oil temperature control.
    • Heating and irradiation: infrared heating array or infrared heating cage, irradiance 100 W/m2 to 2200 W/m2. Solar simulator, ultraviolet irradiation simulator and lighting environment simulation are available.
    • Leak tightness: fixed and demountable joints are helium mass spectrometer leak tested to less than 1×10⁻⁸ mbar·L/s, with a test report.

    Control and data

    A PC-based control and instrumentation system runs the vacuum pumps and drive motors, with automated start-up and shut-down. The GUI shows DUT, shroud and base plate temperatures, chamber pressure, component status and safety interlocks, and plots temperature profiles over time. Test programs are created, stored and run from the GUI. Data logging is protected against loss during a power or system failure, and the acquisition period is programmable.

    Specify for your project

    • Horizontal or vertical layout, working diameter and working length
    • DUT mass, envelope and heat load
    • Required shroud and base plate temperature range
    • Infrared heating method and irradiance; solar or UV simulation
    • Clean room class and floor load limit at the installation
    • Power supply: AC 3Ψ 220 V, 380 V or 480 V + N + G, 50/60 Hz
    ModelWorking diameter, mmWorking length, mm
    LEVC-5005001000
    LEVC-120012001500
    LEVC-150015002000
    LEVC-200020003000
    LEVC-25002500 to 170005000 to 32000
    LEVC-30003000 to 170006000 to 32000

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Thermal Vacuum Chamber
    • Thermal Vacuum Chamber
    • Thermal Vacuum Chamber
    • Thermal Vacuum Chamber
    • Thermal Vacuum Chamber
  • Thermal vacuum chamber series LEVC: working diameter, working length, ultimate vacuum and temperature range by model. Chamber size, shroud layout, base plate and control system are engineered per project.

    Container way Horizontal Vertical
    Model No LEVC-500 LEVC-1200 LEVC-1500 LEVC-2000 LEVC-2500 LEVC-3000
    Working Diameter(mm) 500 1200 1500 2000 2500~17000 3000~17000
    Working Length(mm) 1000 1500 2000 3000 5000~32000 6000~32000
    No-load ultimate vacuum /Pa 1×10﹣5Pa 5×10﹣5Pa
    temperature range /℃ -190℃~200℃
    refrigerating method liquid refrigerant,refrigerating machine,Nitrogen gas temperature,Bath oil temperature
    Infrared heating mode Infrared heating array,Infrared heating cage
    irradiance 100W/m2~2200W/m2
    Irradiation way solar simulator,Ultraviolet irradiation simulator,Lighting environment simulation system
    power conditions AC 3Ψ 220V;3Ψ380V; 3Ψ480V+N+G, 60/50Hz
