LETO

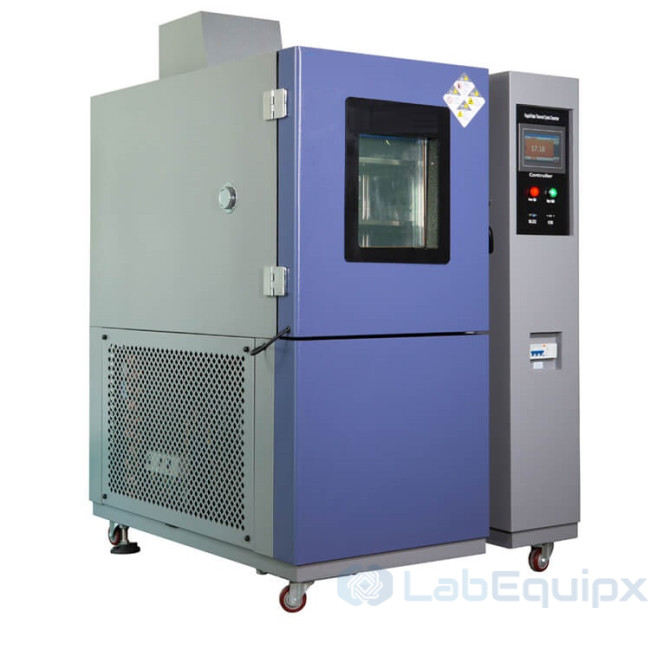

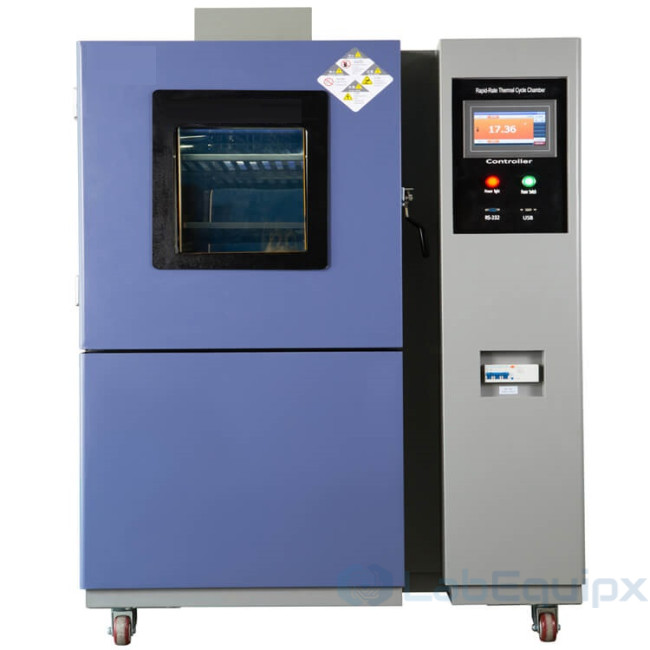

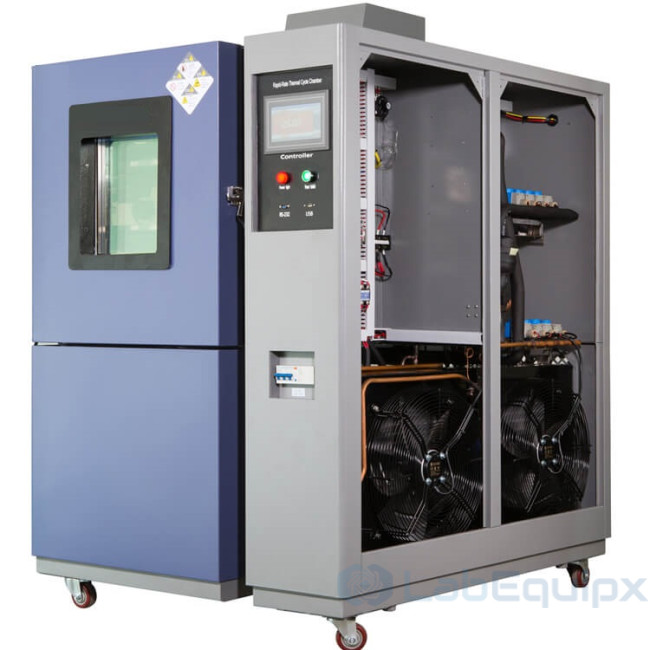

Temperature Only Test Chamber/High And Low Temperature Test Chamber LETO
The Temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements.
Temperature Only Test Chambers
- Temperature chamber models designed to save lab space
- The Temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements.
- Lowest temperature: -20 or -70°C (-4 or -100°F)
- Highest temperature: 180°C (354°F)
- The extended temperature ranges of the Standard series make testing at extreme conditions possible without buying a larger, stand-alone chamber. Two chamber sizes are available, as well.
- The programmer includes a temperature alarm as just one part of Grande's three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.
Features
- High performance and quiet operation (65 dBa)
- Space-saving footprint, designed for flush installation to wall
- Stainless steel exterior
- Full thermal break around doorframe

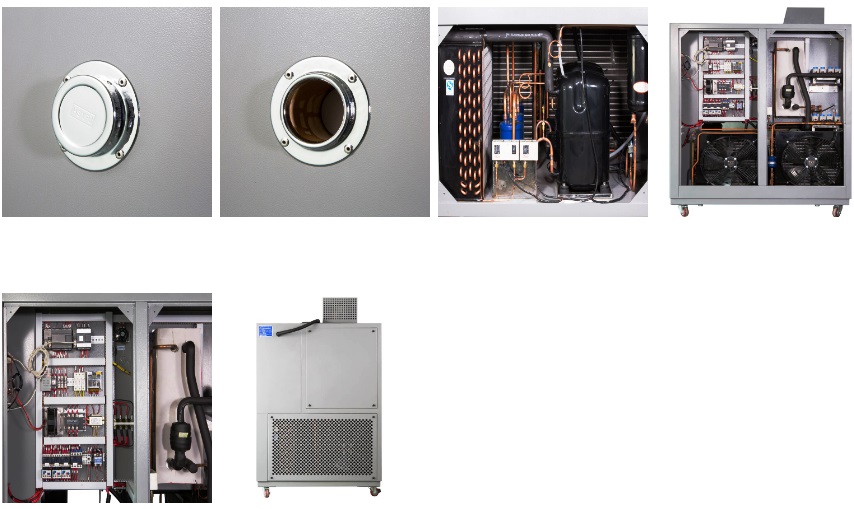

- One 50mm (2") or 100mm (4") diameter cable port on left, with flexible silicone plug
- Three levels of overheat protection, plus overcool protection
- Easy lift-off service panels, electrical access on left
- Detachable eight-foot power cord with plug
- ETL listed electrical panel conforming to UL 508A

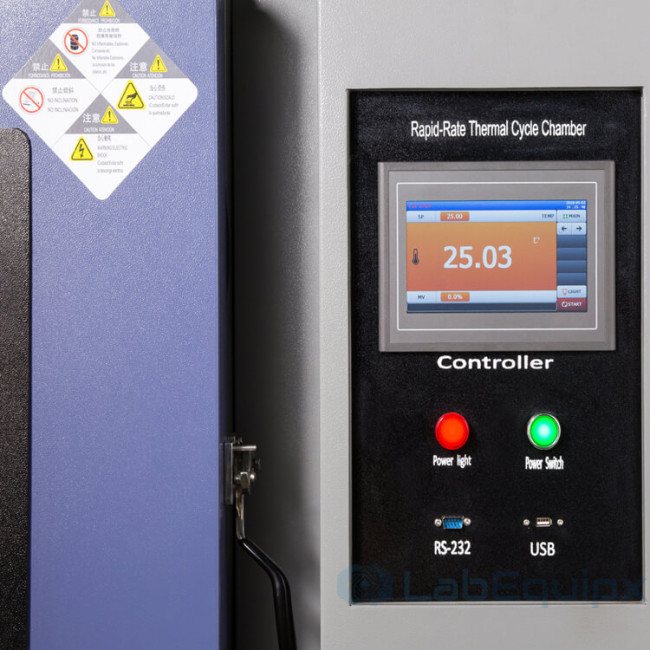

Touch-screen programmer/controller with Ethernet
- Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
- One event relay for external device control, plus specimen power interlock relay for safety
- Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.
Corresponding Standard of the Temperature and Humidity Test Chamber:
1.GB11158 high-temperature testing condition
2.GB10589-89 low-temperature testing condition
3.GB10592-89 high-low-temperature testing condition
4.GB/T10586-89 humidity testing condition
5.GB/T2423.1-2001 low-temperature testing condition
6.GB/T2423.2-2001 high-temperature testing condition
7.GB/T2423.3-93 humidity testing condition
8.GB/T2423.4-93 alternating temperature testing machine
9.GB/T2423.22-2001 temperature testing method
10.IEC60068-2-1.1990 low-temperature testing method
11.IEC60068-2-2.1974 high-temperature testing method
12.GJB150.3 high-temperature test
13.GJB150.4 low-temperture test
14.GJB150.9 humidity test
Technical parameters:
Model No LETO-080 LETO-150 LETO-225 LETO-408 LETO-800 LETO-1000 Working room(L) 80 150 225 408 800 1000 Inner chamber size(mm)W*H*D 400*500*400 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000 Exterior chamber size(mm)W*H*D 900*900*1500 950*1500*1050 950*1650*1150 1050*1750*1350 1450*1900*1350 1450*1900*1550 Packaging volume(CBM) 2 3 03.май 04.май 05.май 6 G.W.(KGs) 300 320 350 400 600 700 Heating & Cooling Rate 3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min linear average or nonlinear average Performance Temperature range -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃,600℃,700℃, 800℃,900℃,1000℃ Temp.fluctuation ±0.5°C Temp.Uniformity ±1.5°C,No-load operation,After stead state 30 min. Temp.resolution 0.01°C Heating rate ≥3°C/min Cooling rate ≥1°C/min Material Inner chamber material SUS#304 stainless steel plate Exterior chamber material Stainless steel plate+ powder coated Insulation Material PU & Fiberglass wool System Air circulation system Cooling fan Fan Sirocco fan Heating System SUS#304 stainless steel high-speed heater Air flow Forced Air Circulation(It enters at bottom and leaves at top) Refrigeration system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser Refrigerating fluid R23/ R404A USA Honeywell. Condensation Air(Water)-cooling condenser Controlling system Digital electronic indicators+S.S.R.With PID automatic calculation capability Operation interface Grande Expertise in Temperature & Humidity Controller,Chinese-English Shift. Controller Programmable capability Save 120 profiles with up to 1200 steps each Setting range Temperature：-100℃+300℃ Reading accuracy Temperature：0.01℃ Input PT100 or T Sensor Control PID control Communication interface Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet Print function Japan Yokogawa Temperature Recorder(Optional accessories) Auxiliary Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch) Accessories Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set. Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice Optional accessories
- Inner glass door with manual operating ports.
- Temp./Humi.Recorder.
- RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
- Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
| Model | LETO |
| Brand | LabEquipx |
