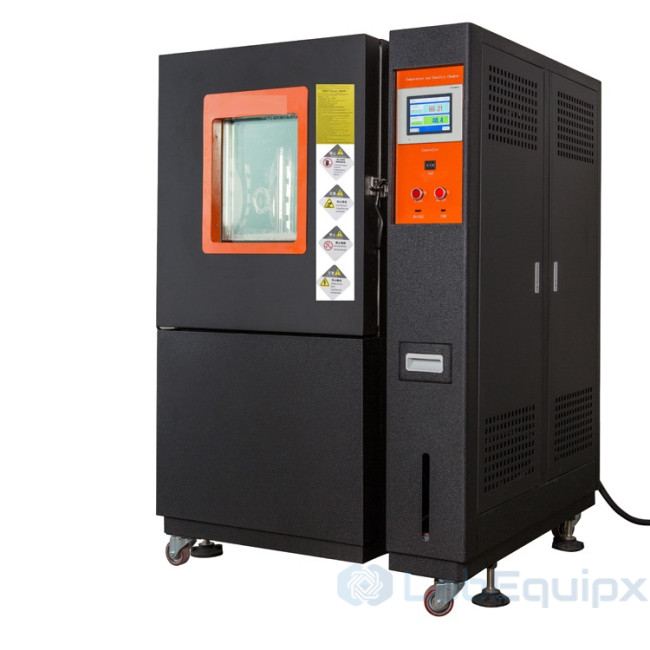

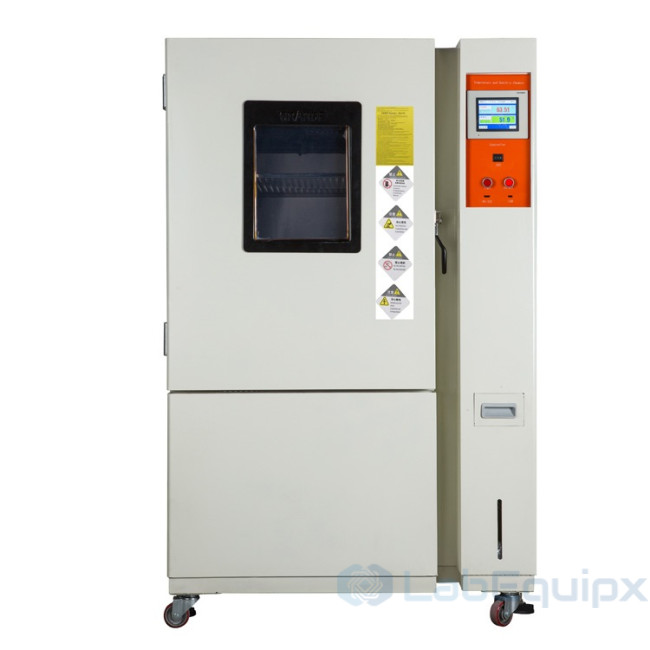

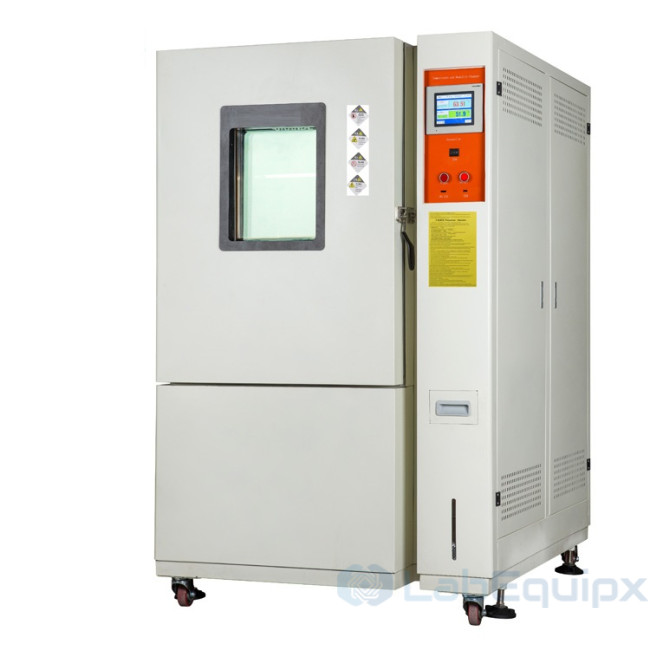

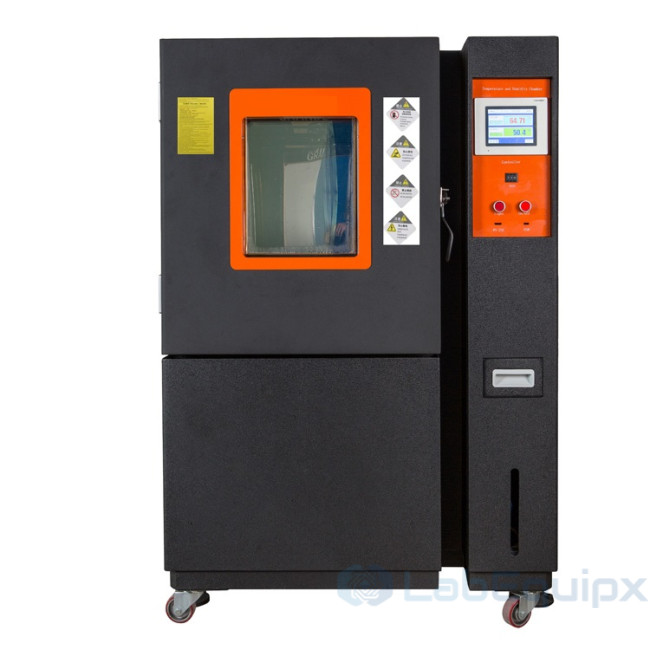

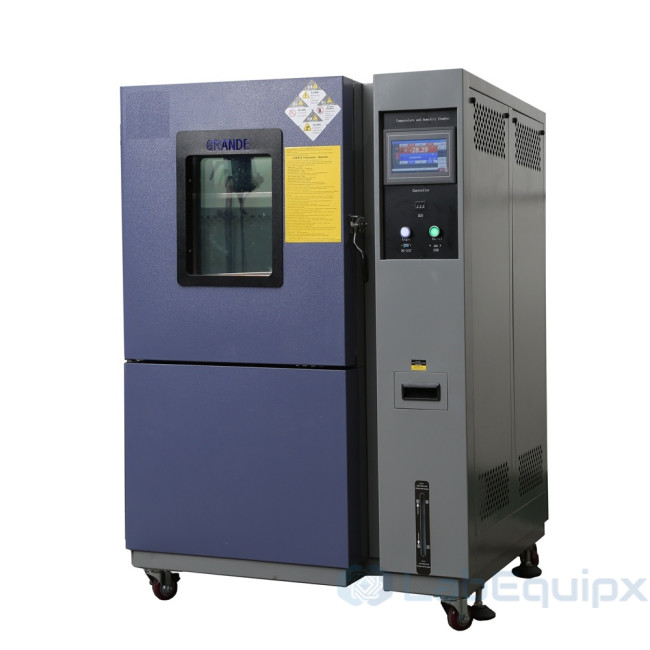

Programmable Temperature and Humidity Test Chamber LEGTHP

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material.

Programmable Temperature and Humidity Test Chambers

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.

The programmer includes a temperature alarm as just one part of Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.

Corresponding Standard of the Temperature and Humidity Test Chamber:

1.GB11158 high-temperature testing condition

2.GB10589-89 low-temperature testing condition

3.GB10592-89 high-low-temperature testing condition

4.GB/T10586-89 humidity testing condition

5.GB/T2423.1-2001 low-temperature testing condition

6.GB/T2423.2-2001 high-temperature testing condition

7.GB/T2423.3-93 humidity testing condition

8.GB/T2423.4-93 alternating temperature testing machine

9.GB/T2423.22-2001 temperature testing method

10.IEC60068-2-1.1990 low-temperature testing method

11.IEC60068-2-2.1974 high-temperature testing method

12.GJB150.3 high-temperature test

13.GJB150.4 low-temperture test

14.GJB150.9 humidity test

Expertise in Humidity Control

Controlling humidity in a small environmental chamber can be especially challenging. Expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:

· An external steam generator allows expanded range and is easy to maintain.

· A separate de-humidification coil improves low humidity control and range.

· Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)

· Direct water supply connection is standard, with options for water filtering and recirculating water tank.

Features

· High performance and quiet operation (65 dBa)

· Space-saving footprint, designed for flush installation to wall

· Stainless steel exterior

· Full thermal break around doorframe

· One 50mm (2") diameter cable port on left, with flexible silicone plug

· Three levels of overheat protection, plus overcool protection

· Easy lift-off service panels, electrical access on left

· Detachable eight-foot power cord with plug

· Direct water supply connection for continuous operation (supply tank optional)

· Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.

Touch-screen programmer/controller with Ethernet

· Watlow F4T with touch-screen and Ethernet port standard

· Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)

· One event relay for external device control, plus specimen power interlock relay for safety

· Exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB,RS-232 and RS-485 ports available, as well.

Technical parameters:

Model No			LEGTHP-080	LEGTHP-150		LEGTHP-225	LEGTHP-408	LEGTHP-800		LEGTHP-1000
Working room(L)			80	150		225	408	800		1000
Inner chamber size(mm)WHD			400500400	500600500		500750600	600850800	10001000800		100010001000
Exterior chamber size(mm)WHD			9009001500	95015001050		95016501150	105017501350	145019001350		145019001550
Packaging volume(CBM)			2	3		03.май	04.май	05.май		6
G.W.(KGs)			300	320		350	400	600		700
Performance	Temperature range		-80℃，-73℃，-60℃,-40℃，-20℃，0℃，+150℃，+180℃,+200℃

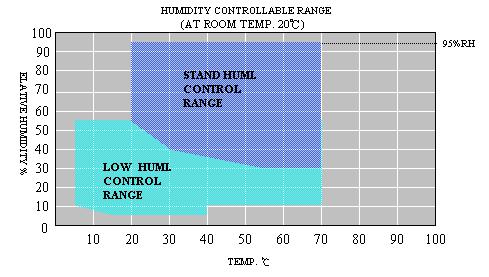

	Humidity range		20%RH ～98%RH(10%RH ～98%RH or 5%RH ～98%RH)
	Temp.&Humi fluctuation		±0.2°C, ±0.5%RH
	Temp.Humi.Uniformity		±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min.
	Temp.humi resolution		0.01°C; 0.1%RH
	Heating up time	°C	100 150
		Min	30 40	30 40	30 45		30 45		30 45	30 45
	Cooling down time	°C	0 -20 -40 -60 -70
		Min	25 40 50 70 80
	Heating rate		≥3°C/min
	Cooling rate		≥1°C/min
Material	Inner chamber material		SUS#304 stainless steel plate
	Exterior chamber material		SUS304 Stainless steel plate+ powder coated
	Insulation Material		PU & Fiberglass wool
System	Air circulation system		Cooling fan
	Fan		Sirocco fan
	Heating System		SUS#304 stainless steel high-speed heater
	Air flow		Forced Air Circulation(It enters at bottom and leaves at top)
	Humidification system		Surface evaporation system
	Refrigeration system		Imported compressor,Tecumseh compressor,finned type evaporator,air(Water)-cooling condenser
	Refrigerating fluid		R23/ R404A USA Honeywell.
	Condensation		Air(Water)-cooling condenser
	Dehumidifying system		ADP critical dew point cooling/dehumidifying method
	Controlling system		PID Digital electronic indicators+S.S.R.With PID automatic calculation capability
	Operation interface		Expertise in Temperature & Humidity Controller,Chinese-English Shift.
Controller	Programmable capability		Save 120 profiles with up to 1200 steps each
	Setting range		Temperature：-100℃+300℃
	Reading accuracy		Temperature：0.01℃
	Input		PT100 or T Sensor
	Control		PID control
	Communication interface		Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
	Print function		Japan Yokogawa Temperature Recorder(Optional accessories)
	Auxiliary		Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
Accessories			Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set.
Safety protection device			Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supply			AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service			Welcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice

Optional accessories

1. Low Humidity and Dehumidifying sytstem.

2. Inner glass door with manual operating ports.

3. Temp./Humi.Recorder.

4. Pure water treatment device

5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.

7. Temperature change rate on average without load(Linear heating up and cooling down); 5℃/min, 10℃/min, 15℃/min, 15℃/min, 20℃/min, 25℃/min, RAMP function.

Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
