3-Layers Temp Humi Test Chamber

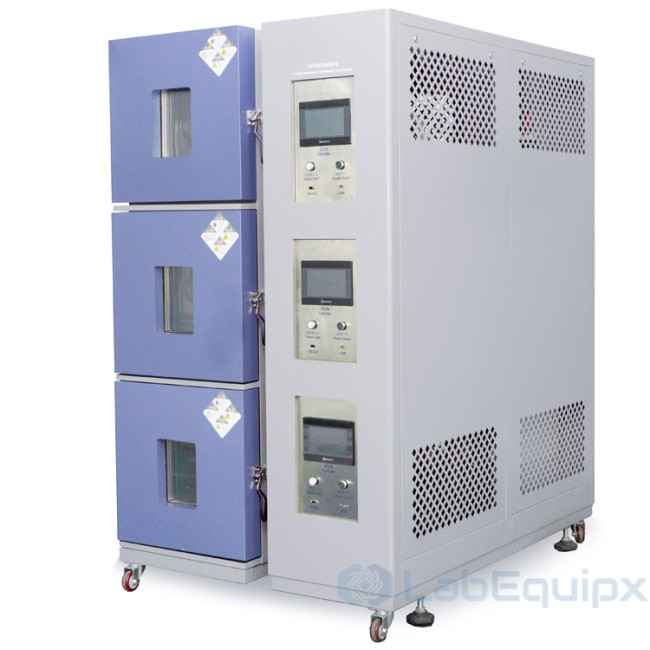

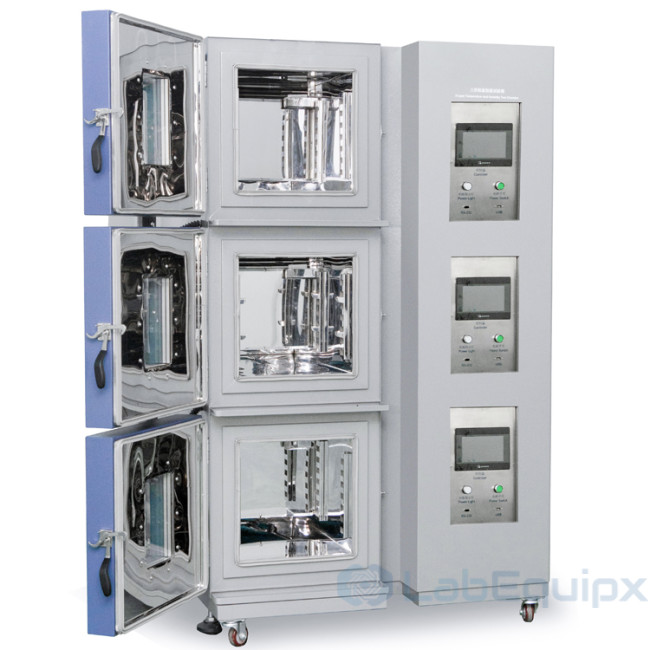

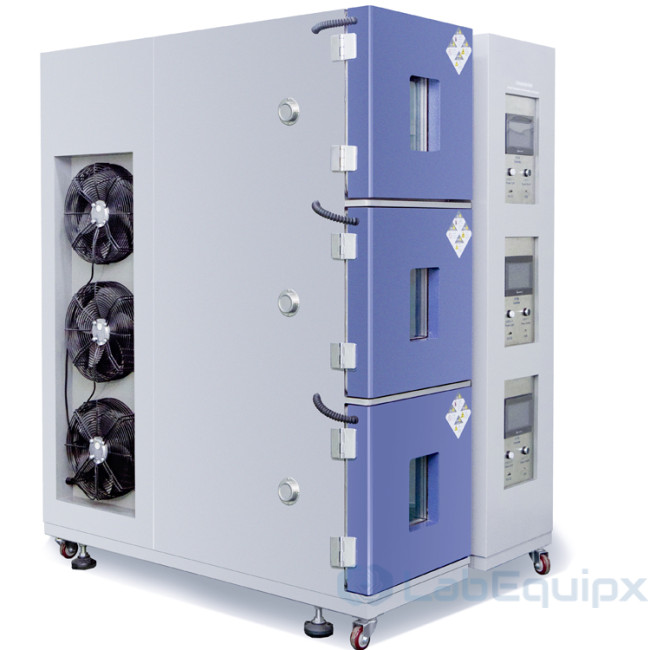

  • The LETH 3-layer test chamber stacks three independent temperature and humidity test areas in one cabinet. Each area has its own refrigeration system, humidifying system and controller, so one unit can run a high temperature test, a low temperature test and a constant temperature humidity test at the same time on different samples. Quality laboratories use it to test heat, cold, dry and moisture resistance of electronic and plastic products, electrical appliances, instruments, food, vehicle parts, metals, chemicals, building materials, aerospace and medical products. The stacked layout saves floor space compared with three separate chambers.

    Performance

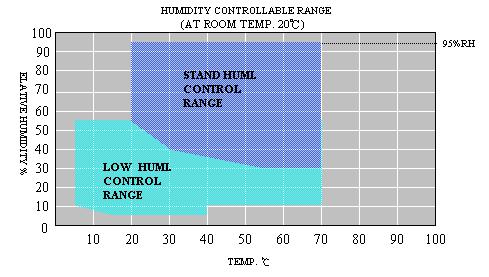

    • Humidity range 20%RH to 98%RH, with 10%RH or 5%RH lower limits as options
    • Fluctuation ±0.2°C and ±0.5%RH
    • Uniformity ±1.5°C; ±2.5%RH at RH≤75%, ±4%RH above 75%, no load, after 30 min steady state
    • Resolution 0.01°C and 0.1%RH
    • Heating rate ≥3°C/min, cooling rate ≥1°C/min

    Temperature limits are chosen from a list: low limits of -80℃, -73℃, -60℃, -40℃, -20℃ or 0℃ and high limits of +150℃, +180℃ or +200℃.

    Design

    The inner chamber is SUS#304 stainless steel plate and the exterior is powder coated steel plate, insulated with PU and fiberglass wool. A sirocco fan forces air in at the bottom and out at the top across an SUS#304 stainless steel high-speed heater. Humidification is by surface evaporation and dehumidification by ADP critical dew point cooling. Refrigeration uses a sealed compressor, finned evaporator and air-cooled or water-cooled condenser.

    The touch controller uses PID control with automatic calculation, PT100 or T sensor input, and stores 120 profiles with up to 1200 steps each. A USB memory port is standard. RS-232, RS-485, GP-IB and Ethernet allow PC connection and control of several chambers. Alarms include limit alarm, self diagnosis with failure cause display, and a timer.

    What is included

    • Multi-layer vacuum glass window, cable port (50mm), chamber light, status lamp
    • Two adjustable specimen shelves, 5 gauze, operation manual

    Specify for your project

    • Model: LETH-072 or LETH-162
    • Low and high temperature limits
    • Humidity range lower limit
    • Communication interface
    • Test standards to be followed, for example IEC60068-2-1 and IEC60068-2-2
    ModelInner W×H×D, mmExterior W×H×D, mm
    LETH-072-(+10)-2Pon request1060×1760×780
    LETH-162-(+10)-2Pon request1260×1910×830

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • 3-Layers Temp Humi Test Chamber
    • 3-Layers Temp Humi Test Chamber
    • 3-Layers Temp Humi Test Chamber
    • 3-Layers Temp Humi Test Chamber
  • It is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

    Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

    The three-in-one design makes the equipment easy to operate and space-saving.Users can do different testings of high temperature,low temperature and costant temperature humidity condition in every single testing area.

    Every system is entirely independant of each other,adopts 3 sets of refrigeration systems,3 sets of humidifying systems and 3 sets of controlling systems,so as to ensure stable and accurate controlling,and povide a longer service life.

    Touch control & setting mode is totally controlled and locked up by automatic micro computer system with PID value automatic calculating ability.

    Corresponding Standard of the Temperature and Humidity Test Chamber:

    1.IEC60068-2-1.1990 low-temperature testing method

    2.IEC60068-2-2.1974 high-temperature testing method. Compliance with GB and GJB standards on request.

    Technical parameters:

    Model No LETH-072-(+10)-2P LETH-162-(+10)-2P
    Inner chamber size(mm)W*H*D on request on request
    Exterior chamber size(mm)W*H*D 1060×1760×780 1260×1910×830
    Performance Temperature range -80℃,-73℃,-60℃-40℃,-20℃,0℃,+150℃,+180℃,+200℃
    Humidity range 20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
    Temp.&Humi fluctuation ±0.2°C, ±0.5%RH
    Temp.Humi.Uniformity ±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%)No-load operation,After stead state 30 min.
    Temp.humi resolution 0.01°C; 0.1%RH
    Heating rate ≥3°C/min
    Cooling rate ≥1°C/min
    Material Inner chamber material SUS#304 stainless steel plate
    Exterior chamber material Stainless steel plate+ powder coated
    Insulation Material PU & Fiberglass wool
    System Air circulation system Cooling fan
    Fan Sirocco fan
    Heating System SUS#304 stainless steel high-speed heater
    Air flow Forced Air Circulation(It enters at bottom and leaves at top)
    Humidification system Surface evaporation system
    Refrigeration system Sealed compressor,finned type evaporator,air(Water)-cooling condenser
    Refrigerant R23 / R404A
    Condensation Air(Water)-cooling condenser
    Dehumidifying system ADP critical dew point cooling/dehumidifying method
    Controlling system Digital electronic indicators+S.S.R.With PID automatic calculation capability
    Operation interface Expertise in Temperature & Humidity Controller,Chinese-English Shift.
    Controller Programmable capability Save 120 profiles with up to 1200 steps each
    Setting range Temperature:-100℃+300℃
    Reading resolution Temperature:0.01℃
    Input PT100 or T Sensor
    Control PID control
    Communication interface Communication interface devices enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
    Print function Temperature recorder (optional accessory)
    Auxiliary Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
    Accessories Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
    Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
    Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders.
    The technical information will be subjected to change without notice

    Optional accessories

    1. Low Humidity and Dehumidifying sytstem.

    2. Inner glass door with manual operating ports.

    3. Temp./Humi.Recorder.

    4. Pure water treatment device

    5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

    6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.

    7. Temperature change rate on average without load(Linear heating up and cooling down):5℃/min,10℃/min,15℃/min,20℃/min,25℃/min,RAMP Function.
