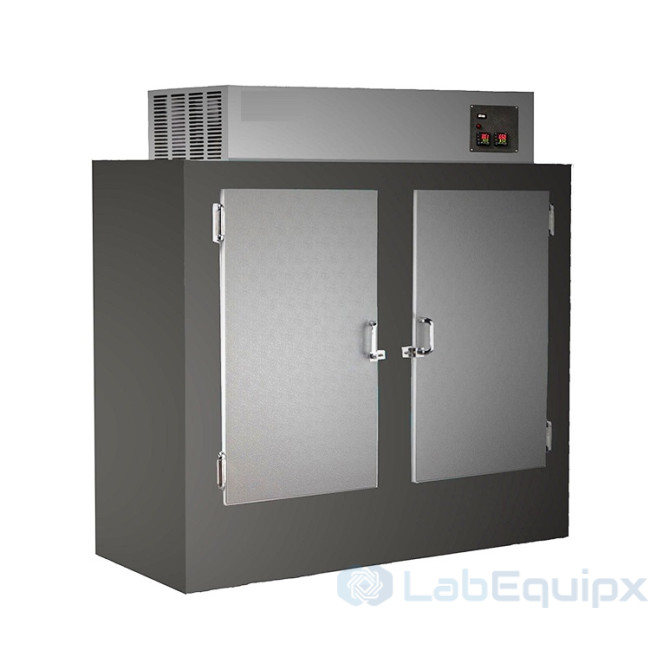

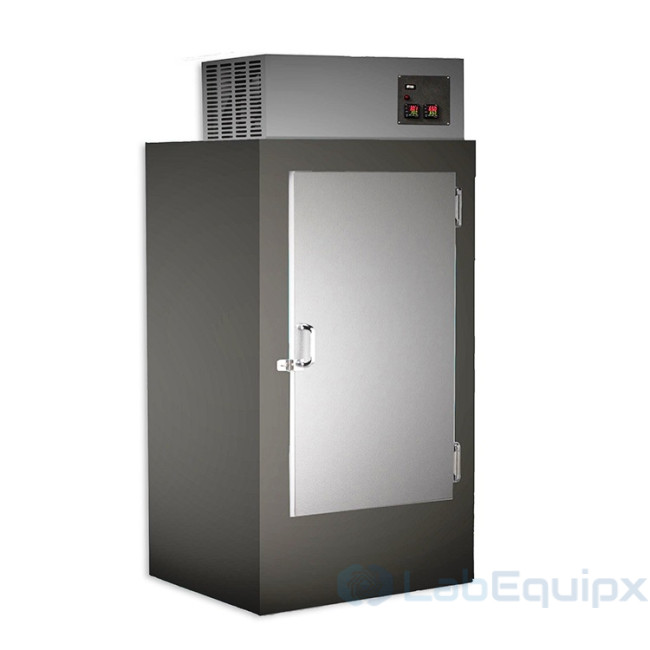

Material Test/Cure Chambers/Standard Curing Chamber For Concrete LEGTH

Available in a variety of sizes, the LEGTH-B Series Material Test/Cure Chambers are ideal for the rigors of precision temperature and humidity control in concrete, asphalt, and related industries.

Unlike the vast majority of “testing” apparatus available to control temperature / humidity for engineering demands, these chambers provide reliable operation, durable construction and accurate results. The LEGTH-B Series offers serious performance to engineers and researchers looking for serious results.

Summary

To set the GTH-B Series apart from typical “environmental chambers” or “home built units,” we have incorporated a number of features to produce the best chamber to meet ASTM, ACI, AASHTO, and other standards.

Cement Concrete Standard Temperature and Humidity Curing Box

This instrument is a laboratory test of cement in a static body of 20 ℃ ± 1 ℃ temperature, water conservation equipment, through automatic control, electronic digital display on the tank water circulating cooling, heating, achieve the temperature requirements. Set in the sink plus a number of tanks, put cement test body mass, so as to achieve the requirements of their trials.

Standard Features

Galvanized Steel Construction
Two Part Polyurethane, Factory Applied Liner for Exceptional Durability
Industrial P.I.D Controls
Robust Refrigeration
Epoxy Coated Cooling Coils
High accuracy Platinum RTD Sensor
Waterproof Interior Fan Motors
Built-in Drain
Corrosion Resistant / Proof Shelving Options
2 1/2″ Minimum Foamed In Placed Polyurethane Insulation
Standard Alarms and Cut-Outs
Standard Ramp / Soak Programming
Exceptional Sample Storage Weight Capability
Unmatched Temperature Control and Uniformity
Conformity with ASTM Standards
Non-Proprietary Controls
Ongoing Sustainability
Pre-Tested and Pre-Charged Refrigeration Systems
Remote Alarm Dry Contacts
Lockable

Optional Features

Back-up Control / Conditioning
Stainless Steel / Special Surfaces
Ethernet / Remote Monitoring / Alarming
Humidification with UV Disinfection
Desiccant Dehumidification with UV Disinfection
Simple Redundancy Options
Multi-Point Digital Recording
Water-Cooled Or Air-Cooled Condensers
Custom Lighting Systems
Custom Shelving
Freeze / Thaw Operation/li>
Glass Doors
Available Service Agreements
Calibration / Validation / Maintenance Services
Touchscreen Control Interface

The Advantage

All installed instrumentation is calibrated to NIST traceable standards and provided with a calibration form. In-house, factory calibrations are performed using state-of-the-art equipment with great accuracies. These reports are three-point verifications, traceable calibration documents.

Technical Parameters:

Inner size :1450x580x1350mm
Control Temperaturer: 20℃±1℃
Control humidity:≥90%(Adjust)
Refrigeration power:145Wx2
Net Wiehgt:280Kg
Can be Place Mold Amount:150x150x150mm Cube Molds 150PCS

Model No	LEGTH-420B	LEGTH-650B	LEGTH-1100B
Working room(L)	420	650	1100
Inner chamber size(mm)WHD	7005501100	9206501100	14505801350
Exterior chamber size(mm)WHD	90010001300	112011001300	165012001550
Packaging volume(CBM)	4.5	5.5	6
G.W.(KGs)	150	200	250
Capacity of the Concrete	150150150mm,30pcs	150150150mm,45pcs	150150150mm,150pcs
Temperature range	0—50℃ adjustable
Humidity range	RH 20-98%
Temp.&Humi fluctuation	±1°C, ±1%RH
Compressor power(W)	165	175	145*2
Heater power(W)	600	600	1000
Humidifier power(W)	15	15	45
Accessories	Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set.
Safety protection device	Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supply	AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service	Welcome to Non-standard,Specail requirements,OEM/ODM orders.
he technical information will be subjected to change without notice

Model	LEGTH
Brand	LabEquipx
