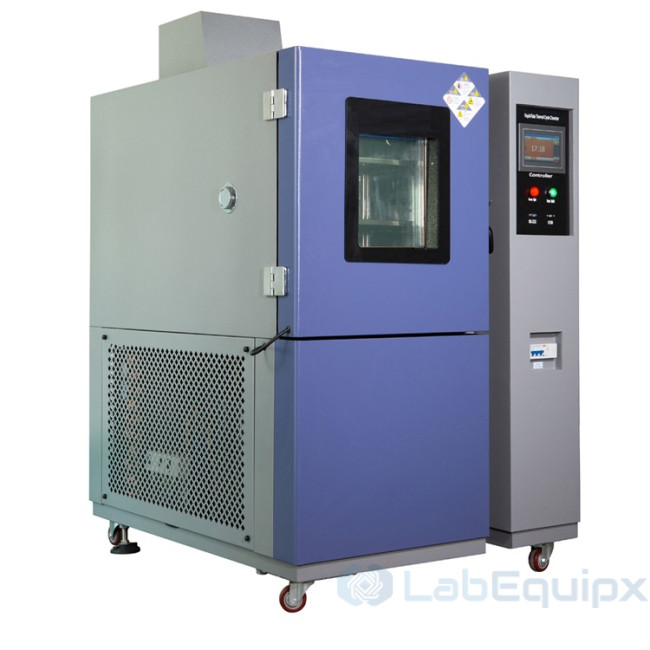

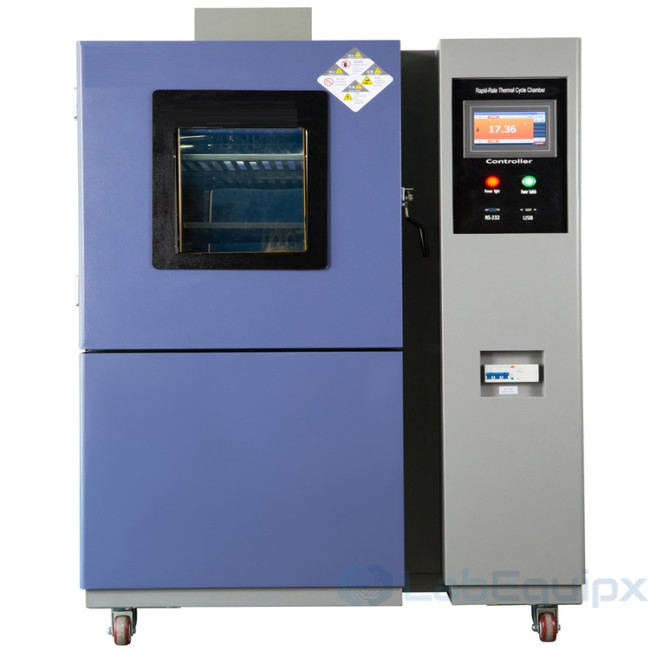

Rapid-Rate Thermal Cycle Chamber

  • The LETC series are rapid temperature change chambers for thermal cycling of instruments, electrical and electronic products, machines and parts. Scroll compressors give fast cycling in a compact frame, with ramp rates from 3 to 30 °C/min. Seven sizes run from 80 L (LETC-080) to 1000 L (LETC-1000). Faster ramps let a test lab run aggressive thermal stress methods and shorten total test time.

    How it works

    Air enters at the bottom and leaves at the top under forced circulation by a sirocco fan. A SUS#304 stainless steel high-speed heater and a refrigeration circuit with finned evaporator and air- or water-cooled condenser drive the temperature. Refrigerants are R23 and R404A. A pressure relief port releases air volume changes during fast ramps. Rate performance follows IEC 60068 3-5, measured at the supply air over the middle 80% of each transition; actual rates depend on load and end temperatures.

    • Ramp rate: 3, 5, 8, 10, 15, 20, 25 or 30 °C/min, linear or nonlinear average
    • Rapid change ranges: -50 to +85 °C (KS), -20 to +85 °C or 0 to +85 °C (KL)
    • Fluctuation ±2.0 °C, uniformity ±1.5 °C, resolution 0.01 °C
    • Humidity range: on request

    Construction and control

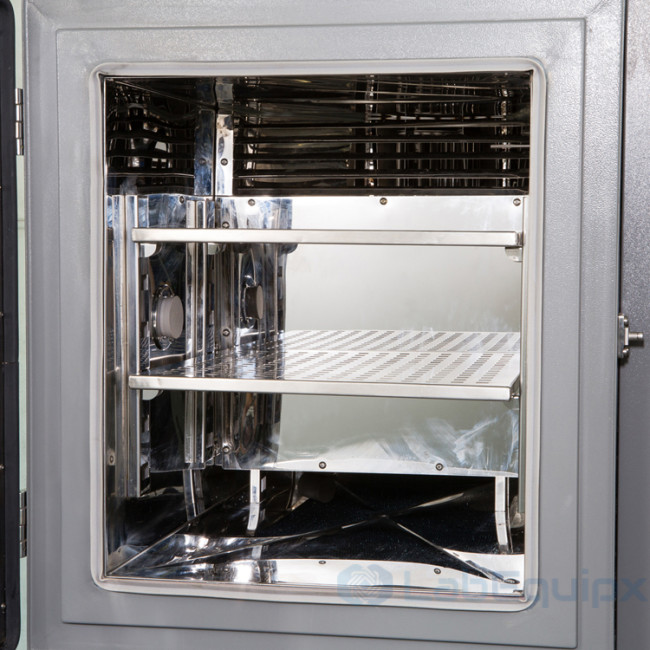

    Stainless steel interior with rounded corners, PU and fiberglass insulation, full thermal break at the door, one 2" (50mm) to 4" (100mm) cable port with silicone plug, three levels of overheat protection. The PID touch-screen controller stores 120 profiles of up to 1200 steps (ramp, soak, jump, auto-start, end), reads PT100 or T sensor input, and has Ethernet, USB, RS-232 and RS-485. Options: dry air purge and product temperature control from a second sensor.

    Models

    ModelVolume, LWork space, mmG.W., kg
    LETC-08080400×500×400380
    LETC-150150500×600×500450
    LETC-225225500×750×600480
    LETC-306306600×850×600550
    LETC-408408600×850×800600
    LETC-8008001000×1000×800800
    LETC-100010001000×1000×1000900

    Specify for your project

    • Working volume, 80 to 1000 L
    • Temperature range and ramp rate
    • Humidity, if required
    • Load mass and cable feedthroughs

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Rapid-Rate Thermal Cycle Chamber
    • Rapid-Rate Thermal Cycle Chamber
    • Rapid-Rate Thermal Cycle Chamber
    • Rapid-Rate Thermal Cycle Chamber
    • Rapid-Rate Thermal Cycle Chamber
  • The faster cycle times can be used to meet more aggressive test methods that require thermal stress during transitions. Significant test time can be saved in completing tests, as well.

    To demonstrate performance, use the international standard IEC 60068 3-5 measured at the supply air. Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance. Your actual cycling results will vary depending on methodology, including the start and end temperatures, and the amount of samples loaded.

    Quality Construction

    • Stainless steel exterior and interior
    • Rounded interior corners for easy cleaning
    • Full thermal break around doorframe and door
    • Rotating door latch is easy and secure
    • Dual-layer insulation of fiberglass and expanded foam for thermal integrity
    • One 2" (50mm) to One 4" (100mm) diameter cable port on the left, with an impervious, flexible silicone plug
    • Easy lift-off service panels
    • Pressure relief port to allow air volume changes due to rapid temperature changes
    • Three levels of overheat protection

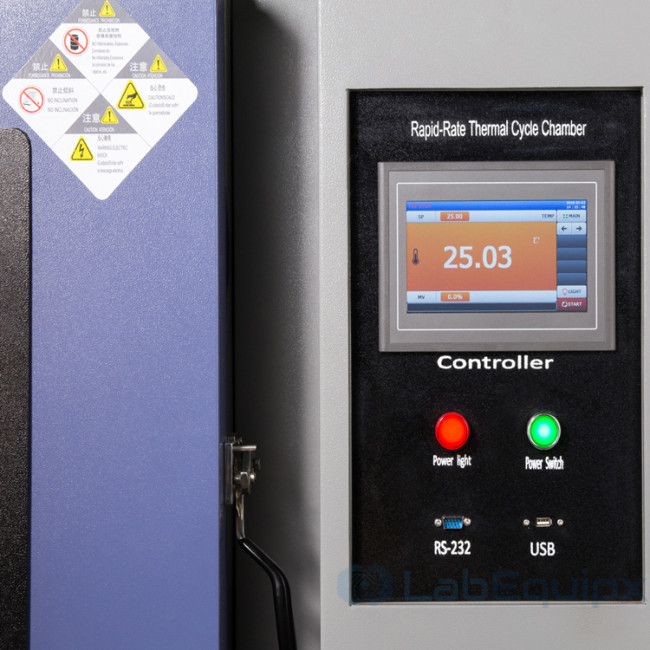

    FTF Programmer/Controller

    • Popular PID controller with touch-screen operation
    • Stores 120 different profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
    • Step types include: ramp, soak, jump, auto-start, and end
    • Ethernet interface for remote monitoring and operation

    Recommended options

    • Dry air purge, to compensate for quickly shrinking air during cooling, as well as to reduce risk of condensation.
    • Product temperature control, allows feedback from a second sensor on the product. Ensures faster completion of transition steps.

    Technical parameters:

    Model No LETC-080 LETC-150 LETC-225 LETC-306 LETC-408 LETC-800 LETC-1000
    Working room(L) 80 150 225 306 408 800 1000
    Inner chamber size(mm)W*H*D 400*500*400 500*600*500 500*750*600 600*850*600 600*850*800 1000*1000*800 1000*1000*1000
    Exterior chamber size(mm)W*H*D 900*900*1500 950*1500*1050 1500*1800*1550 1600*2030*1550 1600*2030*1750 2100*2280*1950 2100*2280*1950
    G.W.(KGs) 380 450 480 550 600 800 900
    Testing temperature range on request
    Rapid Changes Temp.Range -70℃:-50~+85℃(KS);-40℃:-20~+85℃(KL);-20℃:0~+85℃(KL)
    Heating & Cooling Rate 3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min,20°C/min,25°C/min,30°C/min linear or nonlinear average
    Performance Temperature range on request
    Humidity range on request
    Temp.fluctuation ±2.0℃
    Temp.Uniformity ±1.5℃
    Temp.resolution 0.01℃
    Heating rate -70~150℃<60min;-40~150℃<50min;+20~150℃<35min
    Cooling rate +20~-70℃<70min;+20~-40℃<55min;+20~-20℃<35min
    Material Exterior chamber material Stainless steel plate+ powder coated
    Inner chamber material SUS#304 stainless steel plate
    Insulation Material PU & Fiberglass wool
    System Air circulation system Cooling fan
    Fan Sirocco fan
    Heating System SUS#304 stainless steel high-speed heater
    Air flow Forced Air Circulation(It enters at bottom and leaves at top)
    Humidification system Surface evaporation system

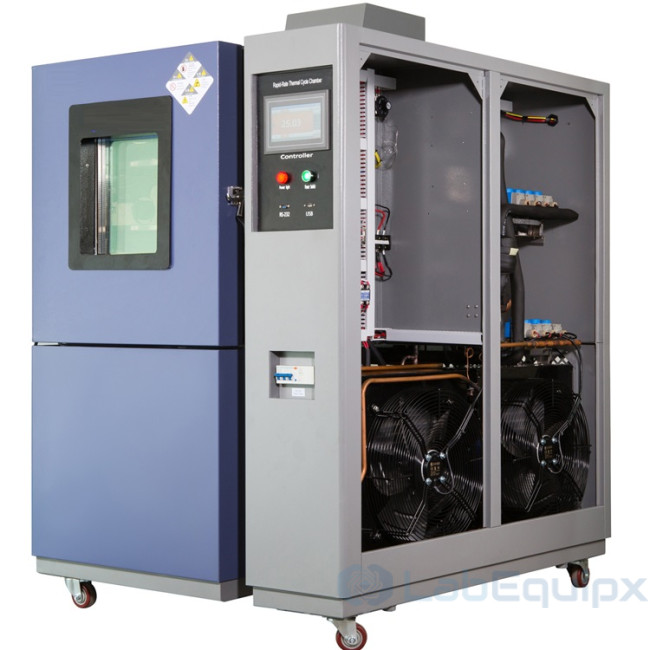

    Refrigeration system Compressor,finned type evaporator,air(Water)-cooling condenser
    Refrigerating fluid R23/ R404A.
    Condensation Air(Water)-cooling condenser
    Dehumidifying system ADP critical dew point cooling/dehumidifying method
    Controlling system PID Digital electronic indicators+S.S.R.With PID automatic calculation capability
    Operation interface Expertise in Temperature & Humidity Controller,Chinese-English Shift.
    Controller Programmable capability Save 120 profiles with up to 1200 steps each
    Setting range Temperature:-100℃+600℃
    Reading accuracy Temperature:0.01℃
    Input PT100 or T Sensor
    Control PID control
    Communication interface Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
    Print function Temperature Recorder(Optional accessories)
    Auxiliary Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
    Accessories Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
    Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
    Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders.
    The technical information will be subjected to change without notice

    Optional accessories

    1. Inner glass door with manual operating ports.
    2. Temp./Humi.Recorder.
    3. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
    4. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
