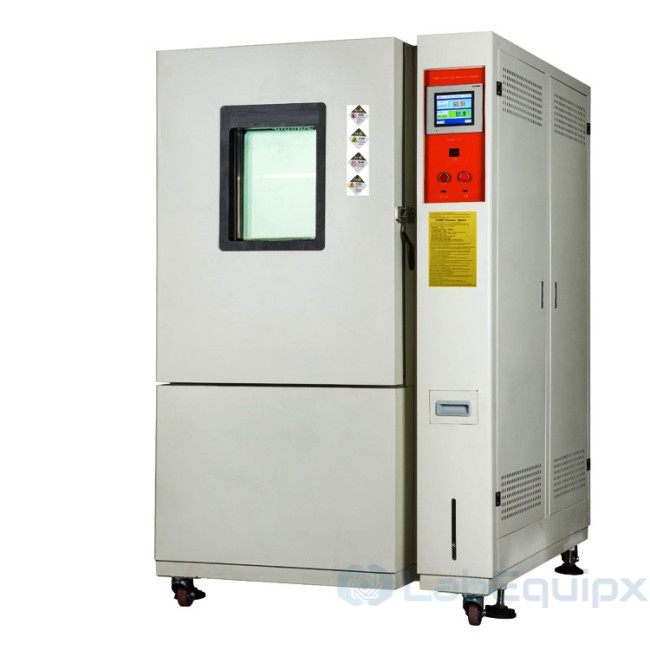

Mould Test Chamber/Bacteriological Incubator

The Mould Test Chamber / Bacteriological Incubator LEGMT is an alternating humid-heat chamber for bacteria storage, biological cultivation and mildew resistance testing. Specimens are held at a set temperature and relative humidity, then inspected to judge how their parameters and properties changed after exposure. Research departments in medicine, electronics, chemistry and biology use it for materials qualification, packaging evaluation and laboratory microbiology.

How it works

Temperature and humidity are set on a controller with a 7 inch color LCD touch display. Setting and indication resolution is 0.1 °C for temperature and 1 percent RH for humidity. A USB port on the controller allows stored data to be browsed or sent to an optional printer. Humidification uses a shallow groove method. The humidifier is driven by contact-less equal-period pulse-width modulation through a solid state relay, with automatic water level compensation and a water shortage alarm, and humidity is regulated by PID control acting through the same SSR channel.

Cooling comes from a cascade refrigeration system with a compressor, sized for the required cooling rate and lowest temperature. The working range is 20 to 80 °C and 45 to 98 percent RH. Temperature fluctuation is 0.5 °C or less and uniformity 2 °C or less with no load; humidity deviation is +2 / -3 percent RH. Heating rate is 1.0 to 3.0 °C/min and cooling rate 0.7 to 1.2 °C/min.

What is included

• Insulated test chamber with a working room of 100, 225, 500 or 1000 L (LEGMT-100-RM to LEGMT-1000-RM)
• Temperature and humidity controller with touch display and USB port
• Humidification system with SSR drive, water level compensation and low water alarm
• Cascade refrigeration system

Specify for your project

• Working room volume: 100, 225, 500 or 1000 L; inner chamber from 450 x 450 x 500 mm to 1000 x 1000 x 1000 mm
• Specimen type, loading and rack arrangement
• Temperature and humidity set points
• Data output: USB download or optional printer
• Floor space: exterior sizes from 1200 x 1000 x 1650 mm to 1850 x 1600 x 2250 mm, 300 to 390 kg
• Non-standard, OEM or ODM requirements

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

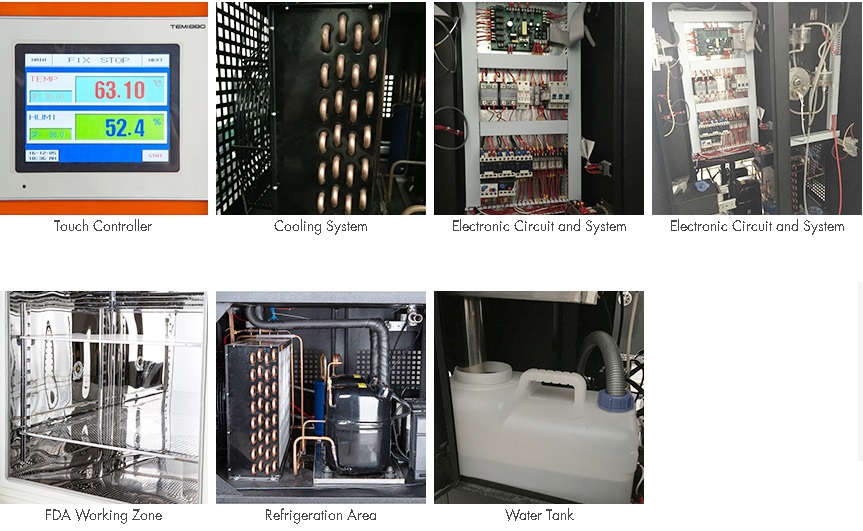

Product Details

• Introduces imported original Japan UNIQUE temperature and humidity controller, 7’’ HD true color LCD touch display to bring you dignity and comfort in touch and vision.
• The controller has a USB port so that the data can be browsed or printed through ITAG printer under drive of the port (optional).
• Shallow groove humidification method
• Humidifier control method: Contact-less equal-period pulse-width modulation, SSR (Solid State Relay),Water level automatic compensation and water shortage alarming system
• Humidity control introduces the same channel coordination control method of P.I.D + S.S.R system.
• Refrigeration principle and compressor: In order to meet the requirements of test chamber on temperature decrease rate and lowest temperature, the test chamber's refrigeration system introduces the cascade refrigeration system composed of imported compressor, and boasts such advantages as reasonable matching, high reliability, easy operation and maintenance and so on.

Technical parameters:

Model No	LEGMT-100-RM	LEGMT-225-RM	LEGMT-500-RM	LEGMT-1000-RM
Working room(L)	100	225	500	1000
Inner chamber size(mm)W*H*D	450*450*500	500*600*750	700*800*900	1000*1000*1000
Exterior chamber size(mm)W*H*D	1200*1000*165 0	1300*1150*1900	1450*1400*2100	1850*1600*2250
Packaging volume(CBM)	2	3	4.5	6
G.W.(KGs)	300	320	360	390
Temperature range	20℃～80℃
Humidity range	45～98%RH
Volatility / Uniformity	≤0.5℃/≤2℃（No Loading)
Humidity deviation	+2、－3%RH
Temperature increase rate	1.0～3.0℃/min
Temperature decrease rate	0.7～1.2℃/min
Controller	Imported original Japan UNIQUE temperature and humidity controller
Accuracy range	Setting accuracy： Temperature 0.1℃、 Humidity 1%RH，Indication accuracy： Temperature 0.1℃、 Humidity 1%RH
Customized service	Welcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
