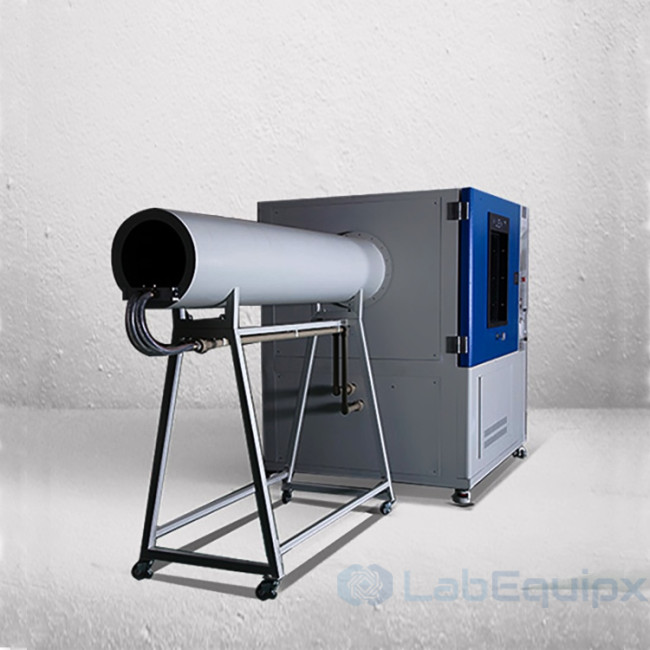

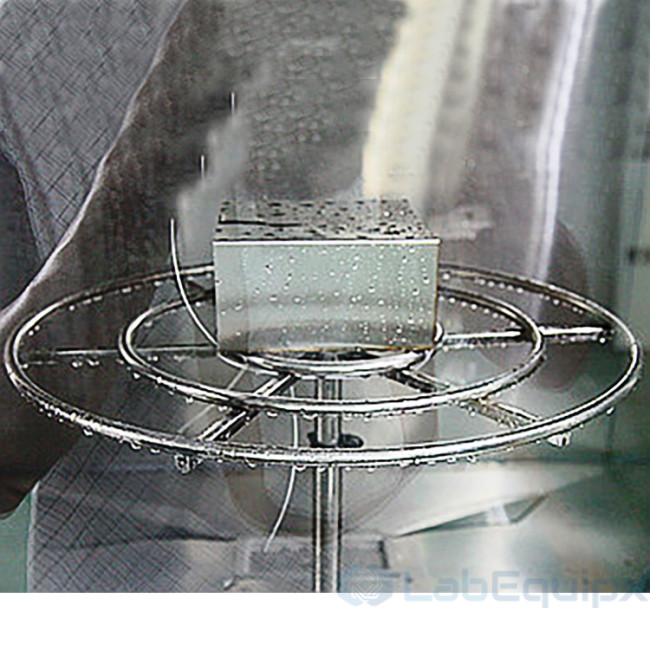

    • Waterproof Test Chambers LEIPX5/6

    • The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

    • Product Details

      1. meet gb4208-2008/iec60529:2001 and gb 7000.1-2015/iec 60598-1:2014 part 9 (dustproof,antisolids and waterproof) which is waterproof test standard of ip65.
      2. the test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. during test, the sample would spin around the center line.
      3. can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
      4. plc, lcd panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
      5. servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
      6. best after sales service: one year free parts maintenance.
      7. customization is available & welcomed.

      features

      1. LEIPX56 waterproof test chamber is applied for workshops,labs.,etc,to proceed with waterproof test of 【LEIPX5】/【LEIPX6】.
      2. perfect designs,constitute test chamber and water inlet pipe,cycling use of water,energy conservation and environment protection,save the cost of construction test room.
      3. built-in storage tank,water level float valve automatically controls water and low-water alarm device,to prevent water pump to be broken since lack of water.
      4. controller:korea samwon temi880
      5. spray gun(airbush) can swing up and down,and the rotary table rotate,it can meet full spray on samples.
      6. LEIPX5/LEIPX6 spray flow is adjusted by flow meter，manual adjustment.
      7. inner installment have sample power socket（ac220v,10a；ip66 waterproof grade），sample power on/off time can controlled by program：power off（0-999min） —power on（0 -999min）— power off（0-999min ），apply to power on/off when sample is testing.
      8. inner chamber installed waterproof led light，convenience customers to observe the status of testing.
      9. testing time can setting on touch pannel，time setting range：0-999min（adjustable），testing over，automatic stop.
      10. added“remote operation”function：user can process parameters setting、start、stop、clear data,etc. action on mobile phone or computer（download corresponding software）.

      material description

      1. ip65 waterproof testing chamber-out box：high quality stainless steel plate，surface spray paint，attractive and durable。
      2. ip65 waterproof testing chamber-inner box and turntable：manufacture by sus304#，insure rustless for long time using.
      3. control system：use colours 7〞 touch screen+panasonic plc.
      4. electrical apparatus element：use like lg、omron, etc. import brand(the wiring process meets national standard ）.
      5. water pump ：stainless steel multistage water pump.

      Technical parameters:

      Structure Parameter
      Out chamber size L:3800*D:1050*H:1600mm(contain aqueduct）
      Inner chamber size L:800*D:800*H:800mm
      Water storage tank volume About 100L，L:500×W:450×H:450mm
      Sample turntable size Diameter 400mm
      LEIPX5 water spray bore diameter Diameter 6.3mm
      LEIPX6 water spray bore diameter Diameter 12.5mm
      Functional Parameter
      LEIPX5 spray flow 12.5±0.625（L/min）
      LEIPX6 spray flow 100±5（L/min）
      Flow control method Manual Adjustment（Rotor flow meter）
      Water spray distance 2.8 Meter（Nozzle distance away from turntable central）
      Spray gun fixing method Mechanical Fixing （Program Setting、Adust Spray Gun Angle）
      Turntable maximum load-bearing 50KG
      Electric Parameter
      Power Voltage 380V
      Equipment Power 3.0kW
      Safety Protestion Function Earth Leakage Protection、Water Protection、Short-circuit Protection

      Packing list:

      1. LEIPX56 Waterproof test chamber 1set (Standard configuration)
      2. Standard parts:Water inlet pipes
      3. LEIPX56 Waterproof test chamber-Certificate of qualification
      4. Detailed list
      5. Delivery Order

      Main configuration:

      No. Main parts name Brand/Origin/Specifications Quantity
      Controlling system(Main parts)
      1 Main frame Aluminum frame,transparent density board 1group
      3 PLC processor Mitsubishi, Japan 1group
      4 Communication module Mitsubishi, Japan 1group
      5 Controlling panel (English interface) WEINVIEW, Taiwan 1group
      6 Stepping motor GUOYOU, China 1group
      7 Dc motor and reducer GUOYOU , China 1group
      8 Transducer 0.75KW/220V 1group
      Water line(Main parts)
      1 Glass float flowmeter Range 7L/min 1pcs
      2 Precision pressure gauge 0.4MPa 1pcs
      3 Electric contact pressure sensor 0-0.8MPa 1group
      4 Stainless steel water pump Nanfang, Hangzhou, China 1pcs
      5 Solenoid valve GUOYOU 220V 2group
      6 Throttle valve GUOYOU, China 2group
      Other parts
      1 Turntable Stainless steel 1group

      Package:

      1. Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber.
      2. Usually we delivery the equipment by air,by sea or by express. it depends on customer.
      • Waterproof Test Chambers LEIPX5/6
      • Waterproof Test Chambers LEIPX5/6
      • Waterproof Test Chambers LEIPX5/6
      • Waterproof Test Chambers LEIPX5/6
    • Waterproof Test Chambers LEIPX5/6
    • Waterproof Test Chambers LEIPX5/6
    • Waterproof Test Chambers LEIPX5/6
    • Waterproof Test Chambers LEIPX5/6
      ModelLEIPX5/6
      BrandLabEquipx
