LEIPDRTC

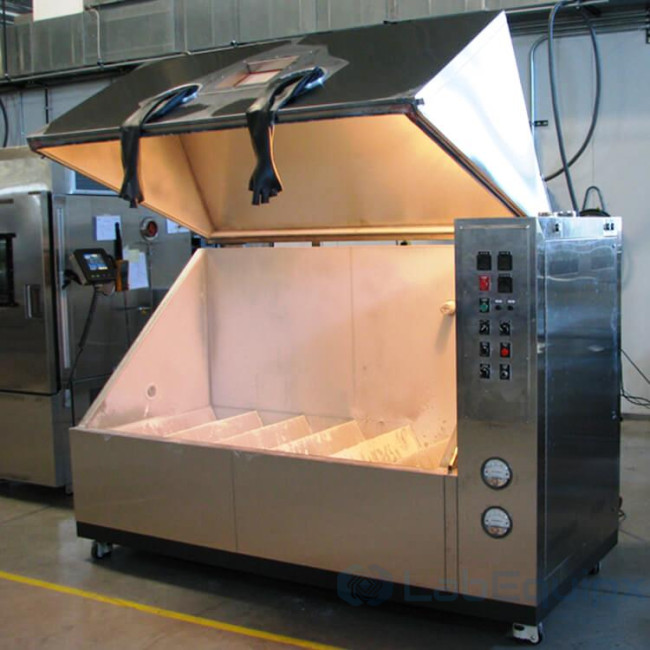

IP Dust Resistance Test Chamber LEIPDRTC

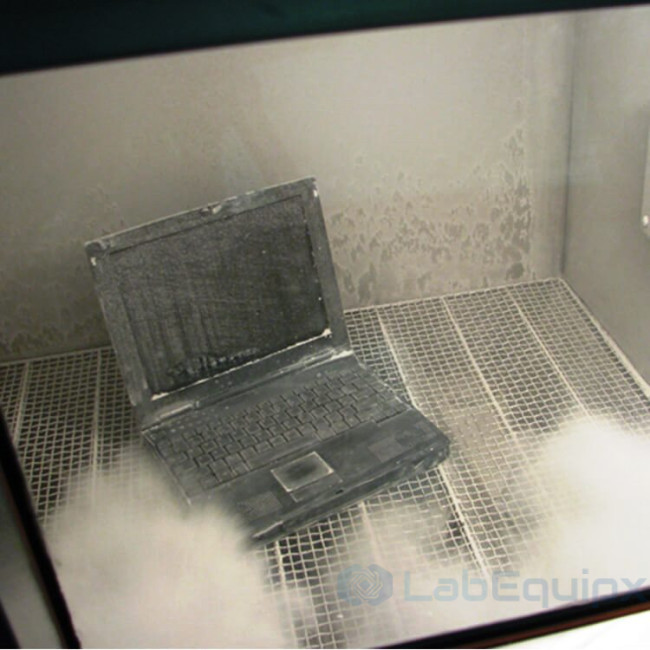

Dust resistance test chamber is designed for sealing performance test and reliability test, widely used in electrical, electronics, automobile, motorcycle, LED and other products. It is suitable for the work ability test on the shell sealing performance, product in dust free settlement, in the environment without apparent air flow or with a strong blast air and a large amount of sand dust, and similar conditions.
Dust proof test machine
- We are manufacturer, offer reasonable price for you.
- Customization of non-standard models are available.
- Major parts adopt imported brands.
Features:
- Temperature Range: environmental temperature + 5~50℃ (Adjustable)
- Humidity Range: 45%~75% (Adjustable)
- Metal net standard nominal line diameter: 50μm
- Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)
- Environmental air pressure: 85Kpa~106Kpa
- Test dust: dry talcum powder, portland cement, smoke ash and etc.
- Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)
- Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air source configuration, require the pressure: 1~3 kg/cm³)
- Power supply: 380V 3phases 50 Hz/60Hz
Besides dust proof test machine, our business range also covers:
Thermal shock chamber, Temperature humidity chamber, Ramp rate temperature chamber, Walk-in climatic chamber, Solar radiation test chamber, Ozone test chamber, Salt spray chamber, Industrial hot air oven, Dustfree hot oven, Temperature humidity control cabinet, Rain spray test chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Burn-in aging test room, Steam aging test chamber, Ventilation aging chamber, Vibration tester, Drop tester, Tensile tester, etc.
Technical parameters:
Model No LEIPDRTC-216-F LEIPDRTC-500-F LEIPDRTC-1000-F LEIPDRTC-1000-C(IEC-529) Working room(L) 216 500 Inner chamber size(mm)W*H*D 600*600*600 800*800*800 1000*1000*1000 1000*1000*1000 Exterior chamber size(mm)W*H*D 1050*1550*1050 1250*1750*1250 1350*1950*1350 1350*1950*1350 Packaging volume(CBM) 4 5 6 6 G.W.(KGs) 300 320 380 380 Testing Type F1 F2 F3 IEC60529 C1 C2 Concentration of dust(mg/m3) >60,000 >3000 >100 >5,000 >100 Testing Temp. 20℃±15℃ Humidity.Range 45%RH～85%RH Flow rate of dust(M /S) Not specified 5m/s 10m/s Testing Time Swirl time 5s No Rest time 15Mins Total time 5H 8H 8H 2H 6H Material Inner chamber material SUS#304+Powder Coated Exterior chamber material SUS#304 Other Components Chamber lamp,Wiper,Casters with adjusters Power Source(K.W.) C 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz 4KW Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice
| Model | LEIPDRTC |
| Brand | LabEquipx |
