Integrated Tensile/Environmental Test Chamber

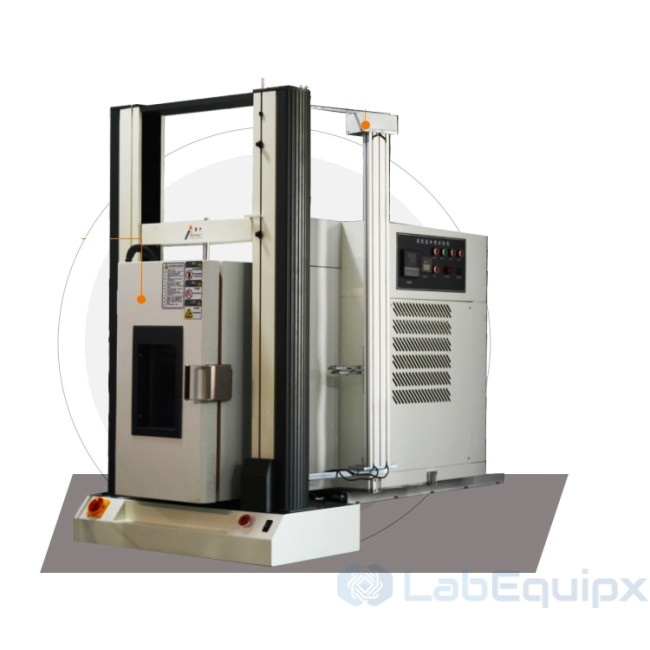

  • The LEITETC is a temperature chamber that mounts on a tensile or universal test frame so that metals, plastics, composites, fibers, films and paper can be tested away from room temperature. Grips enter through slots in the top and bottom of the chamber, and the specimen is loaded by the test machine while the chamber holds the set temperature. Chamber and cart are made to fit test machines and benches of other makes.

    How it works

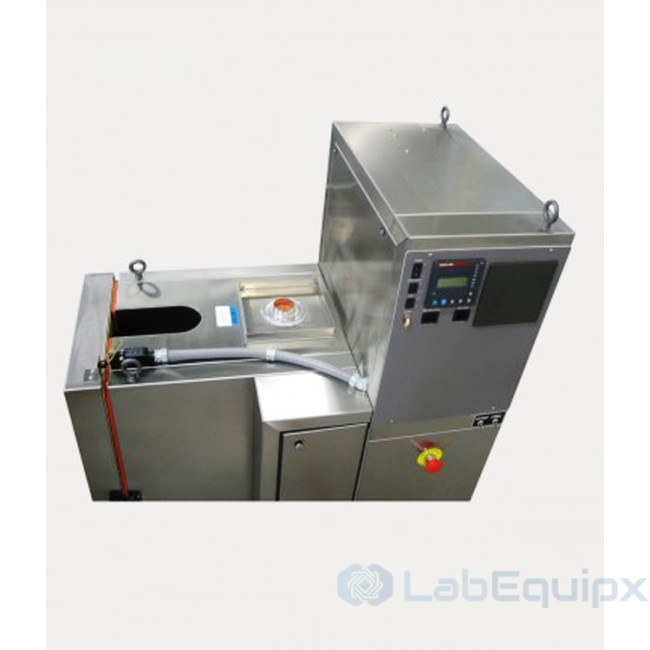

    A rear-mounted plenum holds the cooling coil and nichrome wire heaters, and a fan drives forced convection through the test space. A PID controller with auto-tuning holds the set point; the programmable controller has a touch screen and Ethernet. An air-cooled refrigeration system with hermetic compressors cools the chamber without liquid nitrogen, and humidity models add a steam generator and a dehumidification coil. Door interlocks cut heating, cooling and the fan when the door opens. A heated window allows video or other non-contacting extensometers at low temperature.

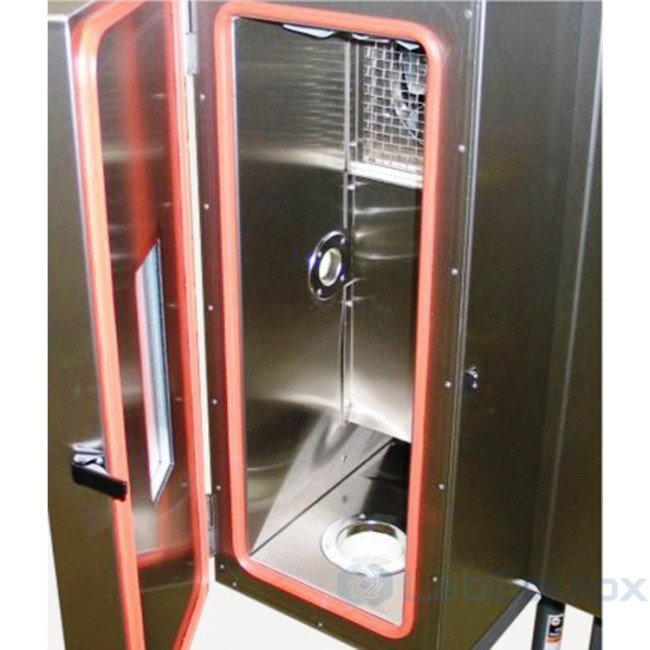

    The interior and exterior are stainless steel. The full-opening door is hinged on the left with silicone gaskets, and lifting eyebolts help positioning. Floor model chamber: internal 660 x 400 x 400 mm (26.0 x 15.7 x 15.7 in), external 810 x 550 x 855 mm (31.9 x 21.6 x 33.7 in).

    Temperature ratings

    ChamberTemperature rating
    Floor model systems-40 to +350°C, -70 to +350°C or -150 to +600°C
    Table model systems-100 to +350°C, -120 to +350°C or -150 to +350°C

    Options

    • CO2 cooling module, to -70°C, or LN2 cooling module, to -150°C, with a controller-operated solenoid valve
    • Rigid mounting brackets or roller carriage brackets
    • Lift stands for floor and table model systems
    • Pull rods, push rods, grips and extensometers

    Specify for your project

    • Test machine make, model and frame type (floor or table)
    • Temperature range from the table above
    • Cooling method: refrigeration, CO2 or LN2
    • Humidity control, if required
    • Mounting type and grip or pull rod set

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Integrated Tensile/Environmental Test Chamber
    • Integrated Tensile/Environmental Test Chamber
    • Integrated Tensile/Environmental Test Chamber
    • Integrated Tensile/Environmental Test Chamber
    • Integrated Tensile/Environmental Test Chamber
  • Features of Tensile Test Chambers

    1. Chamber and cart designed to fit tensile test machines and benches by other brands.

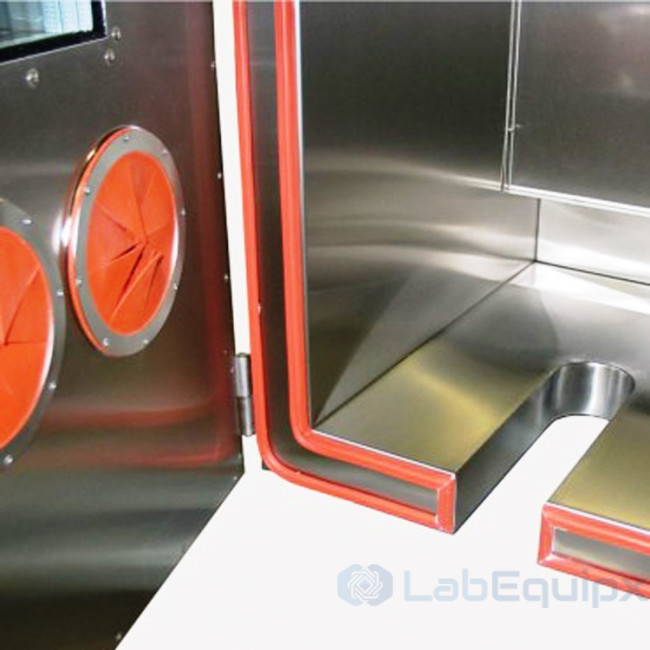

    2. Full-opening door with silicone gaskets and hinged on left side
    3. Slots in top and bottom of chamber for test grips
    4. Lifting eyebolts to aid in positioning
    5. Interior and exterior is stainless steel

    Refrigeration and Plenum

    1. Rear-mounted plenum with cooling coil and nichrome wire heaters
    2. Air-cooled refrigeration system using hermetic compressor(s)
    3. Humidity models include steam generator and dehumidification coil

    System Controls

    1. Attached instrumentation console
    2. Programmable controller with touch-screen and Ethernet

    Environmental Chambers

    Environmental chambers provide extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions.

    Environmental Chambers

    The environmental chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers is available.
    Principle of Operation

    The chambers use forced convection for optimum temperature distribution and a sophisticated PID controller ensures minimum overshoot and excellent set-point stability. The auto-tuning temperature controller gets you to set-point quickly without the need to adjust other parameters. Rapid heat-up and recovery times lower cost per test by improving throughput. Air-cooled skin reduces external temperature and interlocks cut the heating/cooling and fan when the door is opened minimizing non-ambient air reaching the operator. Dual window heaters ensure optimum clarity at low temperatures giving more useful test time when using non-contacting extensometers or other optical devices

    Units SI(Metric)

    Item Name Temperature Rating
    Environmental Chamber for Floor Model Systems -40 to +350°C
    Environmental Chamber for Floor Model Systems -70 to +350°C
    Environmental Chamber for Floor Model Systems -150 to +600°C
    Environmental Chamber for Table Model Systems -100 to +350°C
    Environmental Chamber for Table Model Systems -120 to +350°C
    Environmental Chamber for Table Model Systems -150 to +350°C

    Unit US Customary

    Item Name Temperature Rating
    Environmental Chamber for Floor Model Systems -40 to +660°F
    Environmental Chamber for Floor Model Systems -94 to +660°F
    Environmental Chamber for Floor Model Systems -240 to +1110°F
    Environmental Chamber for Table Model Systems -150 to +660°F
    Environmental Chamber for Table Model Systems -184 to +660°F
    Environmental Chamber for Table Model Systems -240 to +660°F

    Environmental Chamber for Floor Model Systems

    Temperature range: Ambient to +350 °C (+660 °F).

    Includes:

    • ID temperature controller
    • Internal light
    • Removable wedge-ports with instrumentation cut-out
    • Left-hand hinged door with optical-quality heated glass window for use with video extensometers.

    Note: Cooling options available for testing below ambient temperatures.

    Dimensions:

    Internal

    • Height: 660 mm (26.0in)
    • Width: 400 mm (15.7 in)
    • Depth: 400 mm (15.7 in)

    External

    • Height: 810 mm (31.9 in)
    • Width: 550 mm (21.6 in)
    • Depth: 855 mm (33.7 in)

    Cooling modules for Environmental Chamber

    Cooling modules are optional devices that allow Environmental Chambers to be used below room temperature using CO2 or LN2 gases.

    Principle of Operation

    The cooling module is a solenoid valve that injects cooling gas into the chamber. It is activated automatically by the temperature controller of the chamber.

    Unit SI(Metric)

    Item Name Temperature Rating
    CO2 Cooling Module-Environmental Chambers
    Coolant Inlet Hose for CO2 -70°C
    Coolant Inlet Hose for CO2 -70°C
    Coolant Inlet Hose for LN2 -150°C
    Coolant Inlet Hose for LN2 -150°C
    LN2 Cooling Module-Environmental Chambers

    US Customary

    Item Name Temperature Rating
    Coolant Inlet Hose for CO2 -95°F
    Coolant Inlet Hose for CO2 -95°F
    Coolant Inlet Hose for LN2 -240°F
    Coolant Inlet Hose for LN2 -240°F

    Mounting Brackets and Lift Stands for Environmental Chambers

    Environmental Chambers need to be firmly attached to the test system during use. Both rigid and roller mountings are available.

    Rigid mountings are simple, fixed brackets which bolt to the attachment holes in the test system. Roller mountings allow the chamber to be pushed to the rear of the test system when not in use.

    Item Name
    Lift Stand - Floor Model Systems with Base Extension
    Lift Stand for use
    Lift Stand for use with Table Model Systems
    Rigid Mounting Brackets-Chambers
    Rigid Mounting Brackets-Table Model Chambers
    Roller Carriage Brackets-Chambers

    Pull Rods and Push Rods for Environmental Chambers

    A full range of pullrods and pushrods is available to allow compatible grips and fixtures to be used within an Environmental Chamber

    Principle of Operation

    Pullrods and pushrods are manufactured from stainless steel for resistance to corrosion and oxidation. Pullrods for pneumatic grips feature integral air channels to avoid the use of pipes within the chamber

    Item Name
    Cooling Fan - Crosshead Mounted Temperature Chambers
    Cooling Fan for Base Mounted Temperature Chambers
    Cooling Fan for Base-Mounted Temperature Chambers
    Cooling Fan for Crosshead Mounted Temperature Chambers
    Lower Pullrod, Type D
    Lower Pullrod, Type D to D
    Lower Pullrod, Type D to D
    Lower Push/Pullrod, Type D
    Push/Pullrod and Convection Shield, Type Df, Dm
    Push/Pullrod, Type 1
    Push/Pullrod, Type 1f, 1m
    Push/Pullrod, Type 1f, 1m
    Push/Pullrod, Type Dm
    Push/Pullrod, Type Of, Om
    Push/Pullrod, Type Of, Om
    Upper Pullrod, Type Bm to Bf
    Upper Pullrod, Type Bm to Bf
    Upper Pullrod, Type C
    Upper Pullrod, Type C
    Upper Pullrod, Type Cm to Cf
    Upper Pullrod, Type Cm to Cf
    Upper Pullrod, Type D to D
    Upper Pullrod, Type Dm to Df
    Upper Pullrod, Type Dm to Df
Coretest
