Pharmaceutical Stability Chamber/Drug Test Chamber/Comprehensive Drug Test Chamber LEGDST

Drug Stability Test Chamber It can be used in painstaking research of pharmaceutical industry, medical industry, biological technology industry and other industries related to life science. According to GMP principle, constant and stable test conditions of 25℃/60%RH shall be maintained. In the stability test system field of pharmaceutical industry, the standard of 40℃/75%RH shall remain for 6 months in acceleration test, mainly simulating the temperature, humidity and illumination.

Introduces imported original Japan UNIQUE temperature and humidity controller, 7’’ HD true color LCD touch display to bring you dignity and comfort in touch and vision.
The equipment has powerful network monitoring and control functions, so that you can conduct operation and monitoring through computer real-timely and know the operation situation of the equipment even if you are not near the machine.

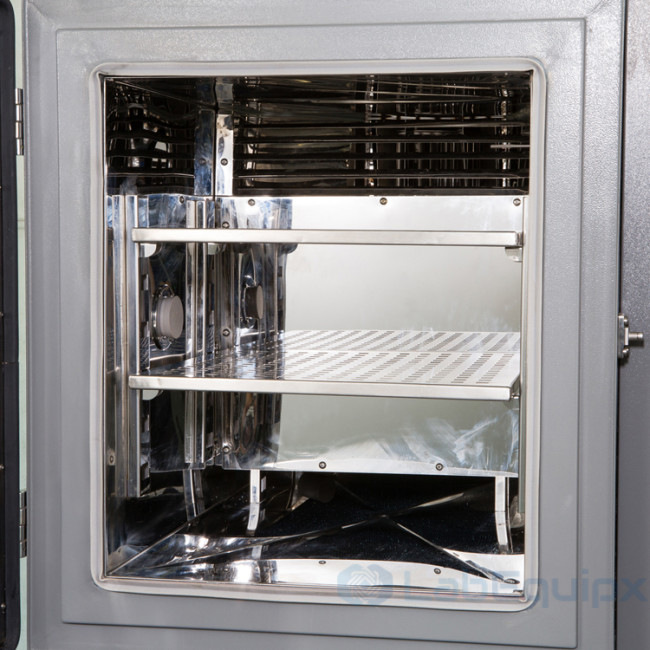

Height of sample shelf can be adjusted as required.
8-10 fluorescent lamps are installed on inner wall of the chamber for illumination test.
To protect the service life of the lamp, an additional tempered glass door is installed for the internal working room to separate product and lamp.
High-quality door sealing strips and insulation materials are introduced to enhance the performance of the entire machine.Shallow groove humidification method
Humidifier control method: Contact-less equal-period pulse-width modulation, SSR (Solid State Relay),Water level automatic compensation and water shortage alarming system,
Humidity control introduces the same channel coordination control method of P.I.D + S.S.R system.

Description	Drug Test Chamber		Comprehensive Drug Test Chamber
Model	LEGDST-150		LEGDST-150
	LEGDST-250		LEGDST-250
	LEGDST-500		LEGDST-500
Volume,Inner & Exterior chamber	150 L	600405620mm	8009101630mm
	250 L	680500730mm	88010101740mm
	500 L	800700900mm	100012101900mm
Temperature Control Range	0~65℃ (Without light)		10～65℃(with light)
Temperature Fluctuation	±0.5˚C
Humidity Range	40~95%RH
Controller	Japanese OYO meter		Korean TEMI880 meter
Accessories	Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set.
Safety protection device	Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supply	AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service	Welcome to Non-standard,Special requirements,OEM/ODM orders.
The technical information will be subjected to change without notice

Model	LEGDST
Brand	LabEquipx
