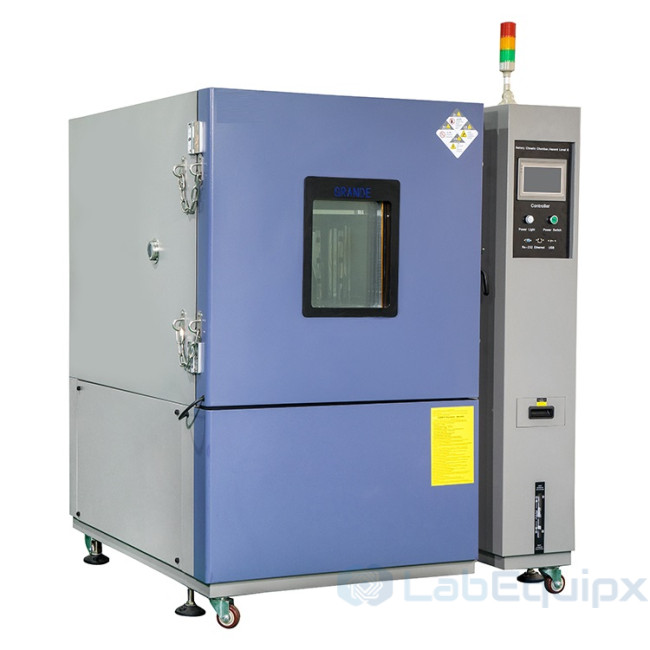

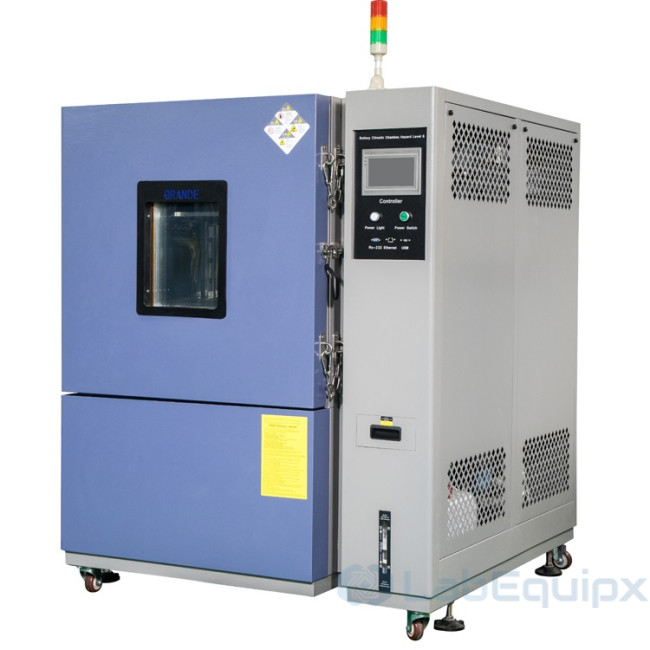

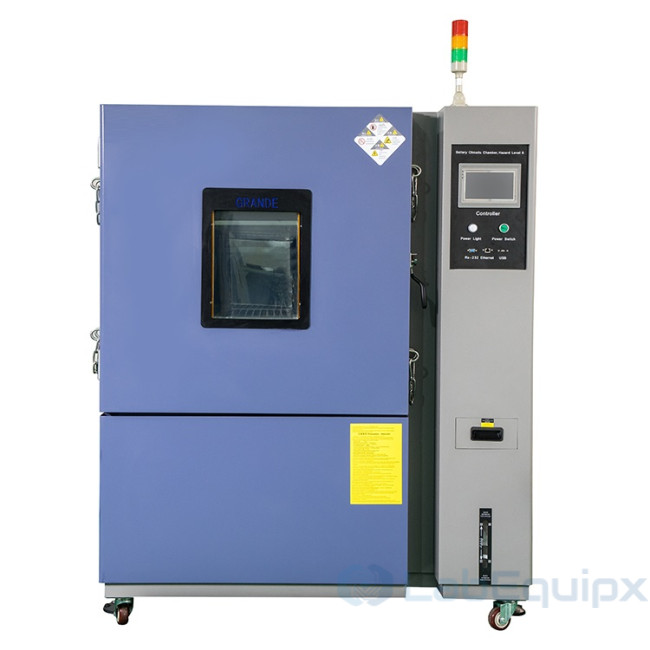

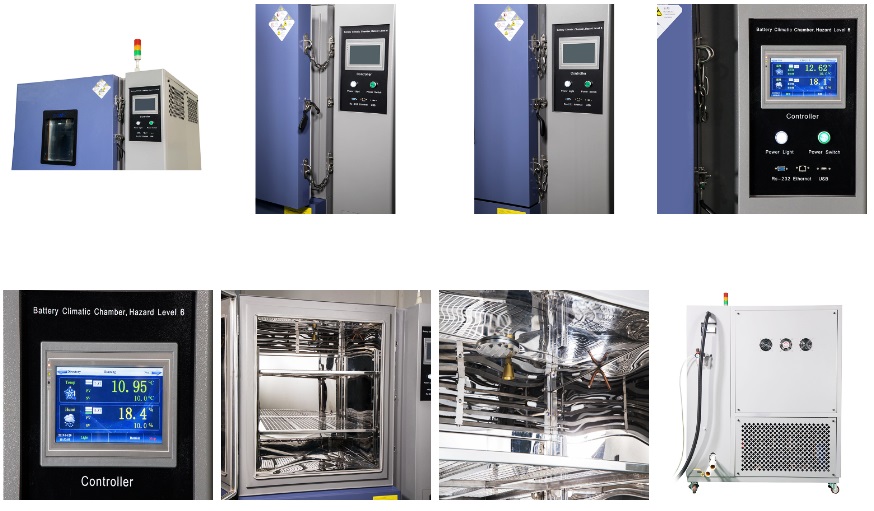

Explosion-Proof Battery Climatic Chamber, Hazard Level 6, LETHB

  • The LETHB battery climatic chamber is an explosion-protected temperature and humidity test chamber for items that may vent, burn or explode during a test: power batteries, electronics, machinery, components and materials. It is built to hazard level 6, the highest level in its safety equipment table, with permanent nitrogen inerting and oxygen measurement in the working room. Model sizes are LETHB-080, LETHB-150, LETHB-225, LETHB-408, LETHB-800 and LETHB-1000.

    Safety equipment by hazard level

    All levels have a status indicator and an electrical door lock. From level 4, a reversible pressure release flap, mechanical door lock, sealing plug with detention clamp and particle blocker are added. Level 5 adds fire detection by CO gas detection or temperature sensor, and flushing with N2 or CO2. Level 6, as on this chamber, uses N2 permanent inertisation and an O2 measuring unit.

    The control panel carries a USB or RS232 port, a three-level battery surface temperature alarm light, battery fault alarm, harmful gas alarm, exhaust indicator, emergency stop switch, fire indicator and over-temperature protection.

    Climate and control

    The chamber simulates heat, cold, dry and humid conditions. Humidity is generated by an external steam generator, a separate dehumidification coil improves low humidity control, and a wet-bulb sensor measures humidity without risk of failure from over-saturation. Direct water supply is standard. Over-temperature protection has three tiers: controller alarm, thermal fuse and an independent user-set limit, plus overcool protection. A specimen power terminal with interlock relay lets powered specimens run safely. A touch-screen programmer with Ethernet stores up to 120 profiles. One 50 mm cable port with silicone plug is fitted on the left.

    Standards

    IEC 62133:2002, UL1642:2006, IEC 61960:2003, IEC 61951-1 and -2:2003, IEC 60068-2-1 and -2, GB/T 2423.1 to 2423.4, GJB 150.3, 150.4 and 150.9.

    Specify for your project

    • Working volume, model LETHB-080 to LETHB-1000
    • Battery type, size and test standard
    • Hazard level and safety equipment
    • Temperature and humidity range
    • Interfaces: USB, RS-232, RS-485 or Ethernet

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
    • Battery Climatic Chamber Hazard Level 6
  • SAFETY EQUIPMENT* HAZARD LEVEL
    0-3 4 5 6
    Status indicator √ √ √ √
    Electrical door lock √ √ √ √
    Reversible pressure release flap √ √ √
    Mechanical door lock √ √ √
    Sealing plug and detention clamp √ √ √
    Particle blocker √ √ √
    Fire detection via CO gas detection or temperature sensor √ √
    Flushing device with N2,or with CO2 √
    N2-permanent-inertisation √
    O2-measuring-unit √

    The control panel is provided with USB or RS232 port, a battery surface temperature detection display light( will be divided into three level alarm), a battery fault alarm reminder, a harmful gas alarm, an exhaust indication light, an emergency stop switch, out fire indication light and over temperature protection.

    Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the Performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.

    The programmer includes a temperature alarm as just one part of Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.

    Corresponding Standard of the Temperature and Humidity Test Chamber:

    1.GB11158 high-temperature testing condition

    2.GB10589-89 low-temperature testing condition

    3.GB10592-89 high-low-temperature testing condition

    4.GB/T10586-89 humidity testing condition

    5.GB/T2423.1-2001 low-temperature testing condition

    6.GB/T2423.2-2001 high-temperature testing condition

    7.GB/T2423.3-93 humidity testing condition

    8.GB/T2423.4-93 alternating temperature testing machine

    9.GB/T2423.22-2001 temperature testing method

    10.IEC60068-2-1.1990 low-temperature testing method

    11.IEC60068-2-2.1974 high-temperature testing method

    12.GJB150.3 high-temperature test

    13.GJB150.4 low-temperture test

    14.GJB150.9 humidity test

    15.GB8897.4-2002(idt IEC60086-4:2000)

    16.GB8897.5-2006(idtIEC60086-5:2005)

    17.IEC 62133:2002

    18.IEC61951-1:2003

    IEC61951-2:2003

    19.IEC61960:2003

    20.UL1642:2006

    Expertise in Humidity Control

    Controlling humidity in a small environmental chamber can be especially challenging. Expertise in humidity control brings intelligent design that is carefully integrated into the chamber. The humidity subsystems are designed for reliability, convenience, and performance:

    • An external steam generator allows expanded range and is easy to maintain.
    • A separate de-humidification coil improves low humidity control and range.
    • Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation.
    • Direct water supply connection is standard, with options for water filtering and recirculating water tank.

    Features

    • Space-saving footprint, designed for flush installation to wall
    • Stainless steel exterior
    • One 50mm (2") diameter cable port on left, with flexible silicone plug
    • Three levels of overheat protection, plus overcool protection
    • Easy lift-off service panels, electrical access on left
    • Direct water supply connection for continuous operation (supply tank optional)
    • Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.

    Touch-screen programmer/controller with Ethernet

    • Touch-screen controller with Ethernet port standard
    • Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
    • One event relay for external device control, plus specimen power interlock relay for safety
    • Options include: WIFI, web controller for full remote access; PC software for basic data logging and monitoring. USB,RS-232 and RS-485 ports available, as well.

    Technical parameters:

    Model No LETHB-080 LETHB-150 LETHB-225 LETHB-408 LETHB-800 LETHB-1000
    Working room(L) 80 150 225 408 800 1000
    Inner chamber size(mm)W*H*D 400*500*400 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000
    Exterior chamber size(mm)W*H*D 900*900*1500 950*1500*1050 950*1650*1150 1050*1750*1350 1450*1900*1350 1450*1900*1550
    Packaging volume(CBM) 2 3 on request on request on request 6
    G.W.(KGs) 300 320 350 400 600 700
    Performance Temperature range on request
    Humidity range 20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
    Temp.&Humi fluctuation ±0.2°C, ±0.5%RH
    Temp.Humi.Uniformity ±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min.
    Temp.humi resolution 0.01°C; 0.1%RH
    Heating up time °C 100 150
    Min 30 40 30 40 30 45 30 45 30 45 30 45
    Cooling down time °C 0 -20 -40 -60 -70
    Min 25 40 50 70 80
    Heating rate ≥3°C/min
    Cooling rate ≥1°C/min
    Material Inner chamber material SUS#304 stainless steel plate
    Exterior chamber material SUS304 Stainless steel plate+ powder coated
    Insulation Material PU & Fiberglass wool
    System Air circulation system Cooling fan
    Fan Sirocco fan
    Heating System SUS#304 stainless steel high-speed heater
    Air flow Forced Air Circulation(It enters at bottom and leaves at top)
    Humidification system Surface evaporation system
    Refrigeration system Sealed compressor,finned type evaporator,air(Water)-cooling condenser
    Refrigerating fluid R23 / R404A
    Condensation Air(Water)-cooling condenser
    Dehumidifying system ADP critical dew point cooling/dehumidifying method
    Controlling system PID Digital electronic indicators+S.S.R.With PID automatic calculation capability
    Operation interface Expertise in Temperature & Humidity Controller,Chinese-English Shift.
    Controller Programmable capability Save 120 profiles with up to 1200 steps each
    Setting range Temperature:-100℃+300℃
    Reading resolution Temperature:0.01℃
    Input PT100 or T Sensor
    Control PID control
    Communication interface Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
    Print function Temperature recorder (optional accessory)
    Auxiliary Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
    Explosion Proof System Standard configuration 2 Ø100MM pressure relief port, 4 explosion-proof chainsExplosive pressure relief deviceWhen the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:A. When the test items explode,there is a pressure release pipeB. Protect the test equipment from sudden air pressure damageC.Protecting the human beings and property
    Multipoint temperature Adopts developed controller, which can be used to acquire surface temperature points of multiple products
    monitor
    CO2 fire extinguisher Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
    CO & H2 gas detector When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard
    Exhaust valve/Ventilator When the test sample produces harmful gas, ventilate and exhaust internally.When the pressure in the tank exceeds the pressure of the safety valve and opens the pressure relief valve,the exhaust fan is automatically turned on.
    Accessories Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
    Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
    Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
    Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders.
    The technical information will be subjected to change without notice

    Optional accessories

    1. Low Humidity and Dehumidifying sytstem.

    2. Inner glass door with manual operating ports.

    3. Temp./Humi.Recorder.

    4. Pure water treatment device

    5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

    6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.

    7. Temperature change rate on average without load(Linear heating up and cooling down); 5℃/min,10℃/min, 15℃/min, 20℃/min, 25℃/min, RAMP function.
