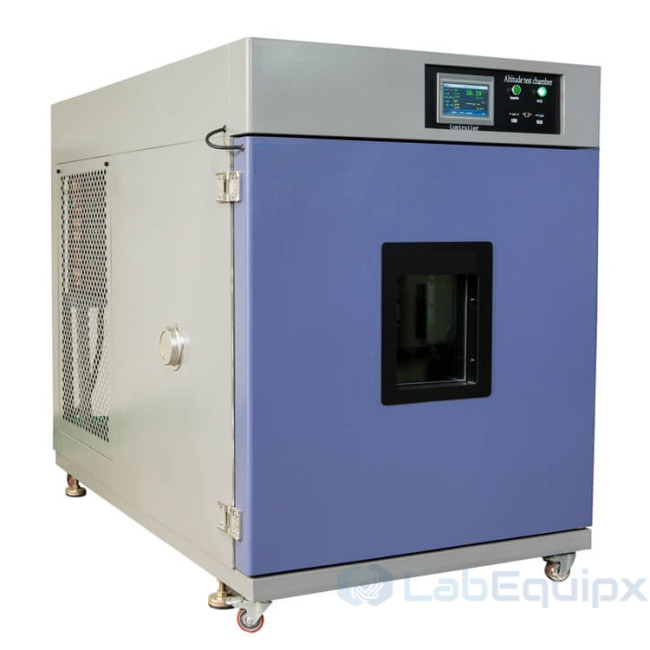

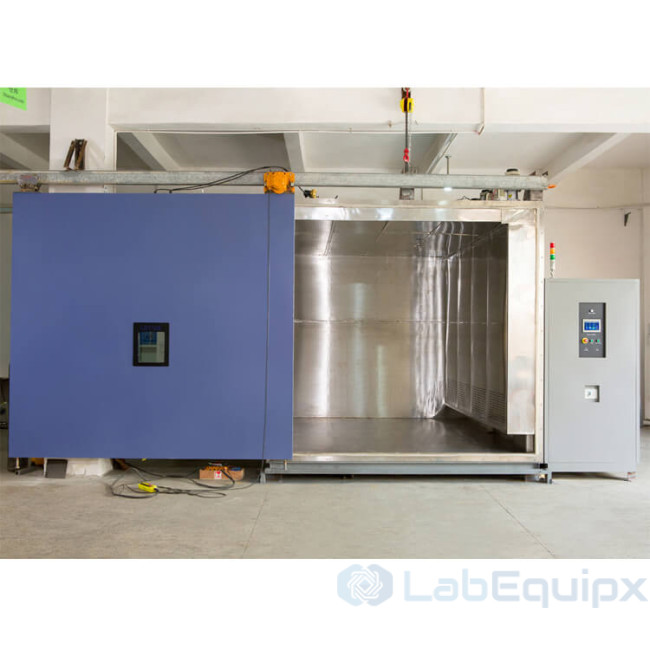

    • High Altitude Low Pressure Simulation Test Chamber/Altitude Test Chamber LEATCH

    • Altitude test chambers are custom systems, and differing requirements may significantly change the cost and utility requirements.

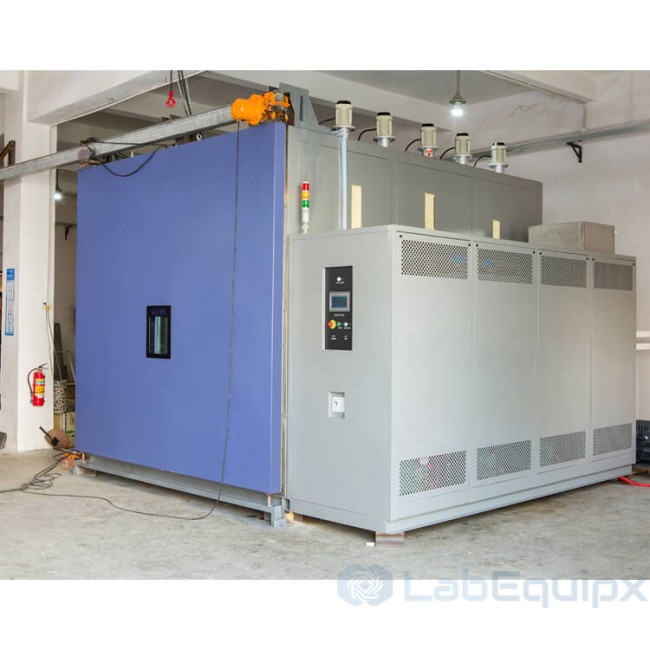

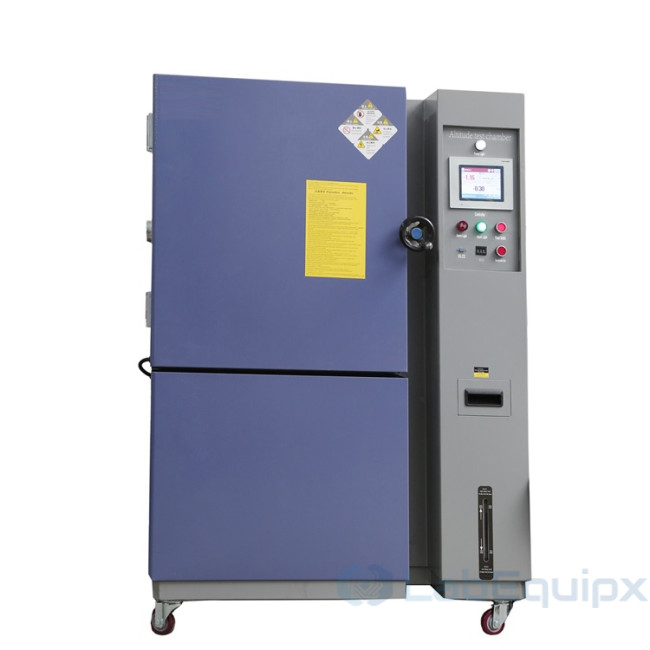

    • Altitude Test Chambers

      Temperature testing at altitudes up to 100,000 feet,or Atmospheric pressure～-98KPa,-106KPa;～133pa,0pa;～-0.1MPA;～0mmHg; 0.05Torr; 1*10-3Pa

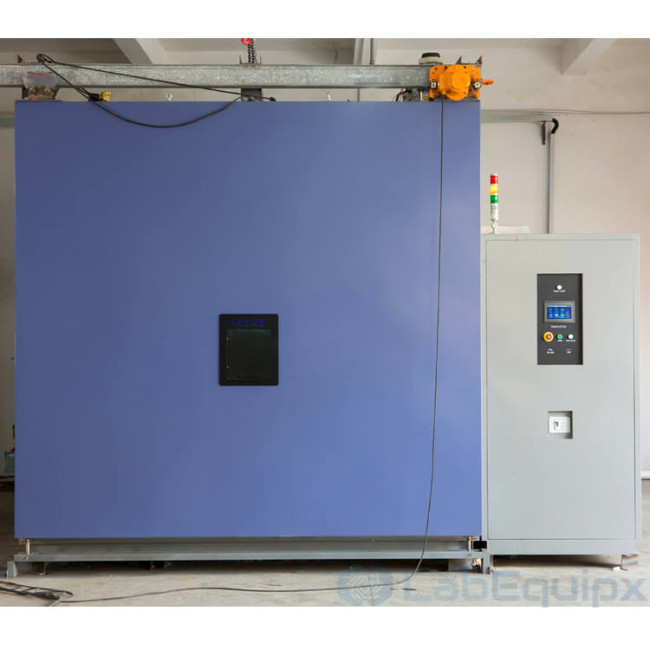

      Can provide custom-built chambers for simultaneous testing of temperature and low-pressure altitude conditions. Two common applications are:

      · Testing of avionics or other aerospace equipment to simulate actual conditions it might experience.

      · Simulation of high-altitude conditions like might be found in mountainous regions.

      NOTE: Altitude test chambers are custom systems, and differing requirements may significantly change the cost and utility requirements.

      Features

      · Temperature range from -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃

      · Altitude range from ground to 100,000 feet,or Atmospheric pressure～-98KPa,-106KPa;～133pa,0pa;～-0.1MPA;～0mmHg; 0.05Torr; 1*10-3Pa

      · Optional humidity control when altitude system is off

      · Chamber interior size specified by customer

      · Automatic altitude control, integrated with temperature controller
      —No manual setting of altitude level!

      · Vacuum pump sized for climb/dive rate required by application

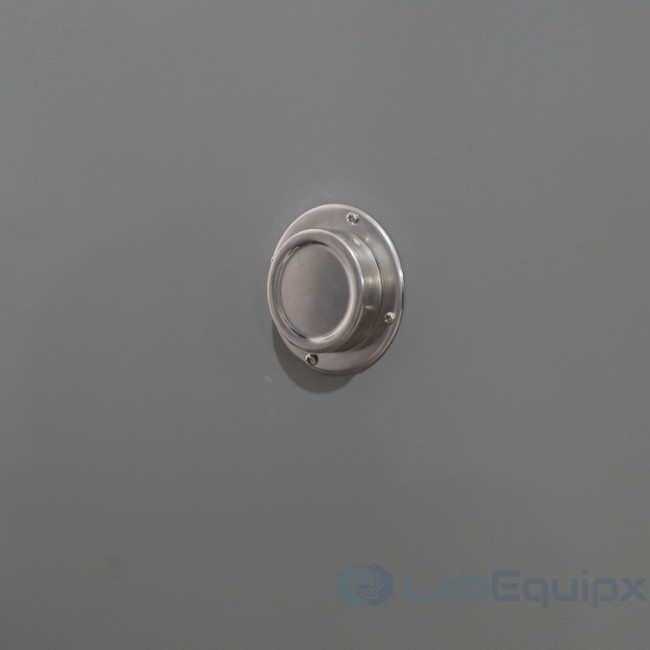

      · Viewing window and cable ports available

      Corresponding Standard of the Temperature and Humidity Test Chamber:

      1. GB10590-89 Low-temperature and low atmospheric pressure testing condition

      2. GB10591-89 High-temperature and low atmospheric pressure testing condition

      3. GB11159-89 low atmospheric pressure technical condition

      4. GB/T2423.25-1992 Low-temperature and low atmospheric pressure test chamber

      5. GB/T2423.26-1992 High-temperature and low atmospheric pressure test chamber

      6. GJB150.2-86 High-temperature and low atmospheric pressure(Altitude) test

      7. IEC60068-2-1.1990 Testing methods of Low-temperature test chambers

      8. IEC60068-2-2.1974 Testing methods of High-temperature test chambers

      9. IEC-540

      10. ASTM D2436

      11. JIS K7212

      12. DIN 50011

      13. BS2648

      14. Mil-Std 202G (conditions 105C, A/B/C/F)

      15. Mil-Std 810G (condition 500.5)

      16. IEC 60068-2-39

      17. IEC 60068-2-40

      18. RTCA/DO-160F

      19. JIS W 0812

      Technical parameters:

      Model No LEATCH-150 LEATCH-225 LEATCH-408 LEATCH-800 LEATCH-1000
      Working room(L) 150 225 408 800 1000
      Inner chamber size(mm)W*H*D 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000
      Exterior chamber size(mm)W*H*D 1000*1600*1400 1000*1750*1500 1100*1850*1700 1500*2000*1700 1850*1600*2250
      Packaging volume(CBM) 3 03.май 04.май 05.май 6
      G.W.(KGs) 320 350 400 600 700
      Testing temperature range -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃
      Performance Temperature range -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃
      Temp.fluctuation ±0.5℃（Room pressure）
      Temp.accuracy ±2.0℃（Room pressure）
      Heating up time ≤60min（+20℃～+150℃、RP、No-Load）
      Cooling down time ≤45min(RP) ≤60min(RP) ≤90min(RP)
      Pressure range Atmospheric pressure～-98KPa,-106KPa;～133pa,0pa;～-0.1MPA;～0mmHg;0.05Torr;1*10-3Pa
      Pressure control tolerance ±0.1kPa(≤2kPa)，±5%(2kPa～40kPa)，±2kPa(≥40kPa)
      Depressurization time ≤20min ≤25min ≤30min ≤45min ≤50min
      Working environment Temp：+5℃～+35℃；Humidity：≤90%RH；Airpressure：86-106kPa

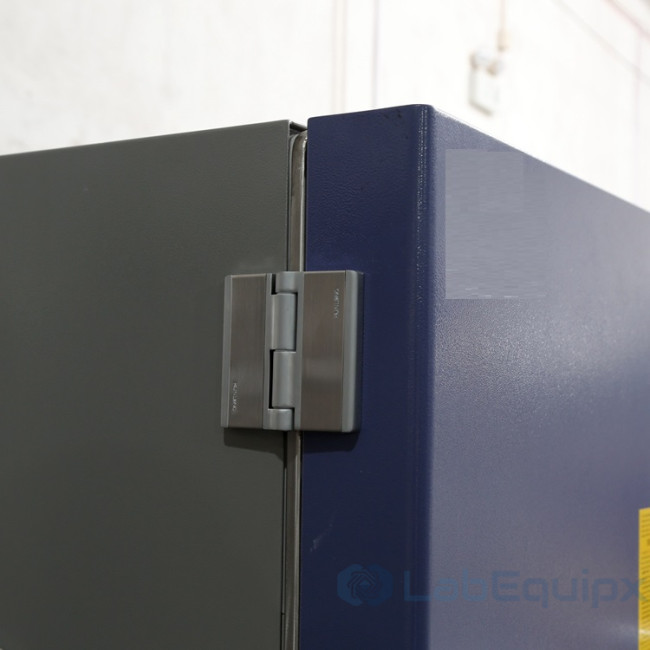

      Material Exterior chamber materia Stainless steel plate+ powder coated
      Inner chamber materia SUS#304 stainless steel plate
      Insulation Material PU Fiberglass wool
      System Air circulation system Cooling fan
      Heating System SUS#304 stainless steel high-speed heater
      Humidification system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
      Dehumidification system ADP critical dew point cooling/dehumidifying method
      Controlling system TEMI880，990
      Power kw 8 10 12 15 20
      Water supply Water temperature:≤30℃;water pressure:0.2～0.4MPa;flow rate:≥10T/h
      Other components Specimen holders 2pcs,electrical wire 1pc(3M),pressure testing port.
      Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
      Power supply AC 3Ψ380V 60/50Hz
      Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders.

      Optional accessories

      1. Low Humidity and Dehumidifying sytstem.

      2. Inner glass door with manual operating ports.

      3. Temp./Humi.Recorder.

      4. Pure water treatment device.

      5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

      6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
