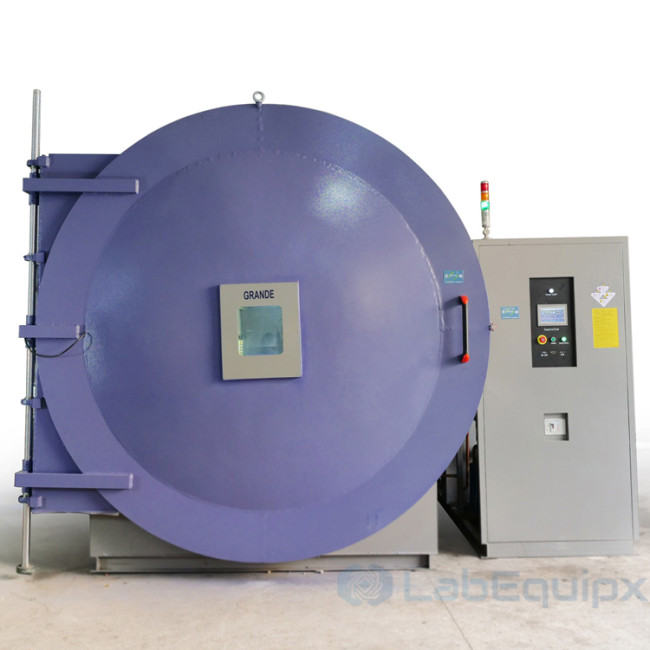

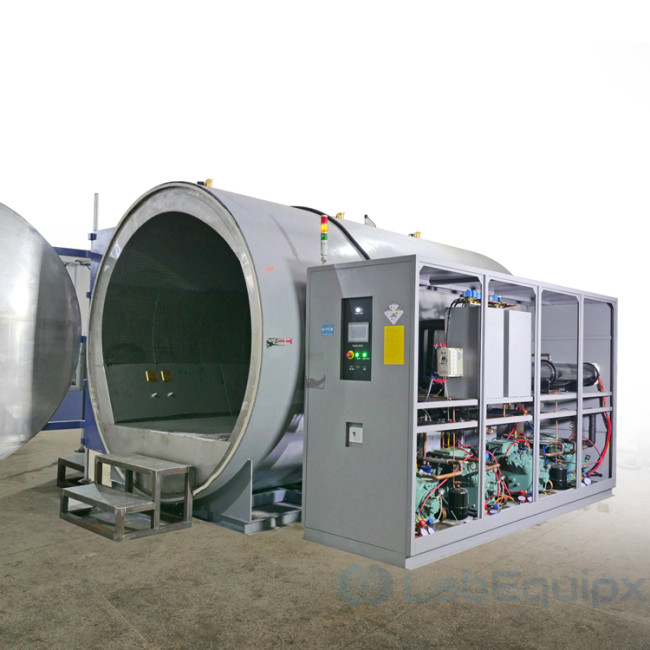

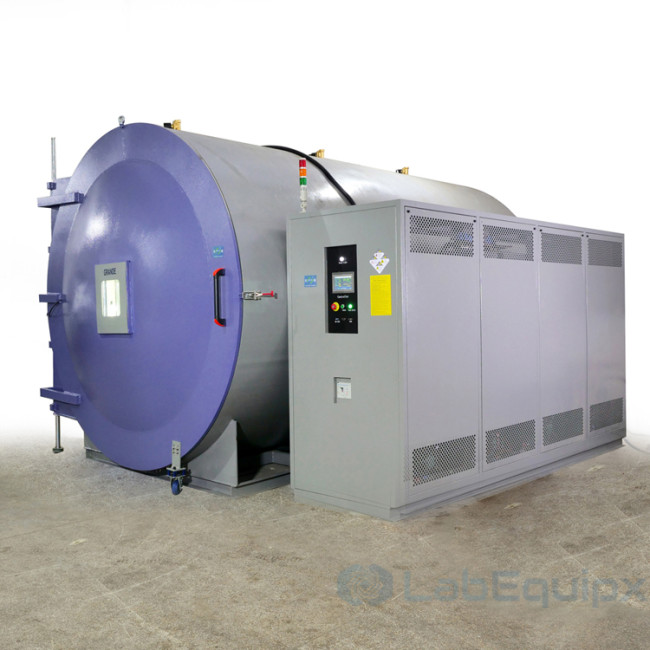

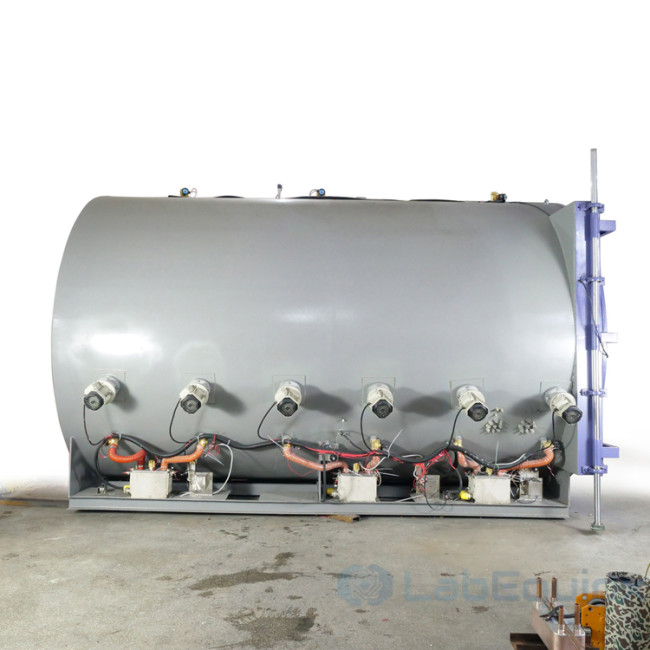

Altitude Test Chamber
The LEATC altitude test chamber combines a temperature test chamber with a vacuum system that simulates altitude from ground level to 100,000 feet. Aerospace and electronics test laboratories use it to expose avionics, components and packaging to the low pressure they meet in flight, and to reproduce the thin air of mountainous regions. Five standard sizes run from LEATC-150 to LEATC-1000; interior size can also be specified by the customer.
Design
The specimen sits in a SUS 304 stainless steel inner chamber with PU and fiberglass wool insulation inside a powder-coated stainless steel exterior. A vacuum pump, sized for the climb and dive rate of the application, lowers chamber pressure. Altitude control is automatic and integrated with the temperature controller, with no manual setting of altitude level. Pressure control tolerance is ±0.1 kPa up to 2 kPa, ±5% from 2 to 40 kPa and ±2 kPa above 40 kPa, with 0.1 kPa resolution (1 Pa or 0.0001 kPa optional).
A SUS 304 high-speed heater and compressor refrigeration with ADP dew point dehumidifying cover lower limits from -160 °C to 0 °C and upper limits from +150 °C to +500 °C. Temperature fluctuation is ±0.5 °C and accuracy ±2.0 °C at room pressure. Heating from +20 °C to +150 °C takes 60 min or less without load. Humidity control, 20 to 98% RH, works when the altitude system is off.
Model Working room (L) Inner W×H×D (mm) Power (kW) Depressurization (min) LEATC-150 150 500×600×500 8 ≤20 LEATC-225 225 500×750×600 10 ≤25 LEATC-408 408 600×850×800 12 ≤30 LEATC-800 800 1000×1000×800 15 ≤45 LEATC-1000 1000 1000×1000×1000 20 ≤50 What is included
- Two specimen holders, 3 m electrical wire and a pressure testing port
- Over-heat, compressor, control and humidifier overload protection with indicator lamp
Options
- Low humidity system (10 or 5% RH lower limit), recorder, pure water treatment
- RS-485 PC interface, inner glass door with operating ports, LN2 or LCO2 fast cooling
Specify for your project
- Working volume or interior size
- Temperature limits from the list above
- Altitude and climb/dive rate
- Test standard, for example MIL-STD-810G condition 500.5, RTCA/DO-160F or IEC 60068-2-39
- Site supply: 3-phase 380 V, 50/60 Hz, cooling water at 0.2 to 0.4 MPa
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
NOTE: Altitude test chambers are custom systems, and differing requirements may significantly change the cost and utility requirements.
Features
· Temperature range:-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~ +150℃,200℃,250℃,300℃,400℃,500℃
· Altitude range from ground to 100,000 feet
· Optional humidity control when altitude system is off
· Chamber interior size specified by customer
· Automatic altitude control, integrated with temperature controller
· No manual setting of altitude level!
· Vacuum pump sized for climb/dive rate required by application
· Viewing window and cable ports available
Corresponding Standard of the Temperature and Humidity Test Chamber:
1. GB10590-89 Low-temperature and low atmospheric pressure testing condition
2. GB10591-89 High-temperature and low atmospheric pressure testing condition
3. GB11159-89 low atmospheric pressure technical condition
4. GB/T2423.25-1992 Low-temperature and low atmospheric pressure test chamber
5. GB/T2423.26-1992 High-temperature and low atmospheric pressure test chamber
6.GJB150.2-86 High-temperature and low atmospheric pressure(Altitude) test
7. IEC60068-2-1.1990 Testing methods of Low-temperature test chambers
8. IEC60068-2-2.1974 Testing methods of High-temperature test chambers
9. IEC-540
10. ASTM D2436
11. JIS K7212
12. DIN 50011
13. BS2648
14. Mil-Std 202G (conditions 105C, A/B/C/F)
15. Mil-Std 810G (condition 500.5)
16. IEC 60068-2-39
17. IEC 60068-2-40
18. RTCA/DO-160F
19. JIS W 0812
Technical parameters:
Model No LEATC-150 LEATC-225 LEATC-408 LEATC-800 LEATC-1000 Working room(L) 150 225 408 800 1000 Inner chamber size(mm)W*H*D 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000 Exterior chamber size(mm)W*H*D 1000*1600*1400 1000*1750*1500 1100*1850*1700 1500*2000*1700 on request Packaging volume(CBM) 3 on request on request on request 6 G.W.(KGs) 320 350 400 600 700 Performance Temperature range -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃ Testing temperature range -160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃ Humidity range 20%RH ～98%RH(Option 10%RH ～98%RH or 5%RH ～98%RH) Temp.fluctuation ±0.5℃（Room pressure） Temp.accuracy ±2.0℃（Room pressure） Heating up time ≤60min（+20℃～+150℃、RP、No-Load） Cooling down time ≤45min(RP) ≤60min(RP) ≤90min(RP) Pressure range Atmospheric pressure～-98KPa;～133pa,0pa;～-0.1MPA;～0mmHg;0.05Torr Pressure control tolerance ±0.1kPa(≤2kPa)，±5%(2kPa～40kPa)，±2kPa(≥40kPa) Pressure resolution 0.1KPA(Option 1Pa or 0.0001KPA) Depressurization time ≤20min ≤25min ≤30min ≤45min ≤50min Working environment Temp：+5℃～+35℃；Humidity：≤90%RH；Airpressure：86-106kPa Material Exterior chamber materia Stainless steel plate+ powder coated Inner chamber materia SUS#304 stainless steel plate Insulation Material PU Fiberglass wool System Air circulation system Cooling fan Heating System SUS#304 stainless steel high-speed heater Humidification system Compressor,finned type evaporator,air(Water)-cooling condenser Dehumidification system ADP critical dew point cooling/dehumidifying method Controlling system Controller Power kw 8 10 12 15 20 Water supply Water temperature:≤30℃;water pressure:0.2～0.4MPa;flow rate:≥10T/h Other components Specimen holders 2pcs,electrical wire 1pc(3M),pressure testing port. Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. Power supply AC 3Ψ380V 60/50Hz Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. Optional accessories
1. Low Humidity and Dehumidifying sytstem.
2. Inner glass door with manual operating ports.
3. Temp./Humi.Recorder.
4. Pure water treatment device
5. RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.
6. Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
| Brand | Coretest |
