LETHV

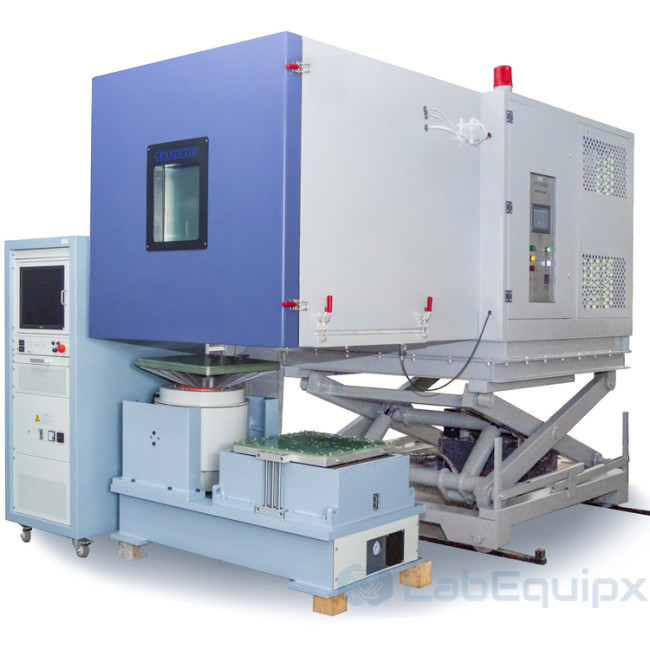

AGREE Chamber LETHV
For years Temp.humidity and vibration compatible Chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications.
Industrial-quality chambers for combination testing with vibration systems
For years Temp. humidity and vibration compatible Chambers have been the workhorses of the environmental test chamber industry. Originally created to meet military test standards, their flexible design has made them suitable for a wide variety of applications. Fast temperature changes of 5 to 25°C/m. are possible, even with significant loads. The chambers have a removable floor, allowing integration with vibration test systems. Custom designs are common, allowing configuration to meet your exact requirements.
Special model can interface with both vertical and horizontal vibration systems
In addition, the touch-screen controller makes running an environmental test chamber a breeze. The full-color, touch-screen interface is remarkably easy to use and understand. The Touch Screen Controller can be managed remotely via our new Ethernet/LAN-based Web Controller, serial port, or GP-IB/Lab View.
Nearly every Agree chamber we build is designed per the application. Here is a review of what is possible with a custom designed chamber.
Feature
- Capacity: 63 L to 6000L
- Temperature Range: -70 to 180C
- Humidity Range: 10-99%RH
- Cooling rate: 2-3C/min (standard), 5C/min, 10C/min , 20C/min as option
- Vibration: maximum up to 5000kgf , 100g
Cabinet
- Full-opening door with multi-panel heated window & interior light
- Chamber floor designed to be changeable to accommodate different “floor plugs” for vibration systems. Standard floor plug provided is “solid” for non-vibration applications (other floors optional). Embedded perimeter heaters in floor plugs to avoid condensation and freeze-up, plus Teflon glides in floor slot make floor replacement very easy.
- One 50mm cable port with flexible plug centered in the left hand wall (additional ports optional)
Refrigeration and Plenum
- Rear-mounted plenum with cooling coil and nichrome wire heaters
- Two ¾ h0p blower motors with one-piece stainless steel shafts
- Non-CFC cascade refrigeration system using semi-hermetic Copeland Discus compressors
- Hinged service access doors with lockable snap-action latches
Technical parameters:
Model No LETHV-306 LETHV-408 LETHV-800 LETHV-1000 Inner chamber size(mm)W*H*D 850*600*600 850*600*800 1000*1000*800 1000*1000*1000 Exterior chamber size(mm)W*H*D 1750*800*1020 1750*800*1320 1900*1200*1320 1900*1200*1520 Max table-board size of Vibrostand(mm) Horizontal：400*400 Max table-board size of Vibrostand(mm) Vertical：400*400 Performance Temperature range -70℃～150℃(S), -40℃～150℃(L),-20℃～150℃(R),+180℃,+200℃ Humidity range 20%～98%R.H （10%～98%R.H；5%～98%R.H Optional）. Temp.&Humi fluctuation ±0.5℃, ±2%. Temp.Humi.Uniformity ±1℃, ±2%. Temp.humi Deviation ≤±2℃/ ±3%RH. Heating up time About 3～4℃/min.（Customized requirements:Fast temperature change rate:5℃～25℃/min,linear average or nonlinear average）. Cooling down time 约About 0.7℃～1℃/min （Customized requirements:Fast temperature change rate:5℃～25℃/min,linear average or nonlinear average）. Material Inner chamber material SUS#304 stainless steel plate Exterior chamber material Stainless steel plate+ powder coated Insulation Material PU & Fiberglass wool System Air circulation system Cooling fan Fan Sirocco fan Heating System SUS#304 stainless steel high-speed heater Air flow Forced Air Circulation(It enters at bottom and leaves at top) Humidification system Surface evaporation system Refrigeration system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser Refrigerating fluid R23/ R404A USA Honeywell. Condensation Air(Water)-cooling condenser Dehumidifying system ADP critical dew point cooling/dehumidifying method Controlling system Digital electronic indicators+S.S.R.With PID automatic calculation capability Operation interface Expertise in Temperature & Humidity Controller,Chinese-English Shift. Controller Programmable capability Save 120 profiles with up to 1200 steps each Setting range Temperature：-100℃+300℃ Reading accuracy Temperature：0.01℃ Input PT100 or T Sensor Control PID control Communication interface Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet Print function Japan Yokogawa Temperature Recorder(Optional accessories) Auxiliary Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch) Accessories Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set. Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice Parameters of Vibration system:
Model No LETHV-11 LETHV-12 LETHV-13 LETHV-14 LETHV-15 LETHV-16 Model No of Vibration exciter GV100/25 GV200/25 GV300/25 GV300/40 GV500/25 GV600/25 Frequency range(Hz) 2-4000 2-4000 2-4000 2-5000 2-3000 2-5000 Max shock excitation(kg.f) 100 200 300 300 500 600 (MMp-p)Maximum displacement 25 25 25 40 25 25 Max accelerated speed(G) 40 80 80 33 83 100 Max speed(cm/s) 150 150 60 120 150 150 Loading(kg) 65 65 110 120 190 190 Mass of moving coil(kg) 2.5 2.5 4 9 6 6 Circumference of moving coil(mm) 140 140 150 225 202 202 Gross weightVibration exciter(kg) 220 250 240 760 690 700 Size(mm) 675*560*660 675*560*660 675*560*660 675*560*660 800*600*710 800*600*710 Model no of Power amplifier SA1K SA2K SA3K SA3K SA5K SA5K G.W of Power amplifier(kg) 210 210 250 300 300 320 Condensation Forced Cooling (mm)Size of power amplifier 720*545*1625 720*545*1625 720*545*1625 720*545*1625 720*545*1625 720*545*1625 Power supply[K.W.] AC 1Ψ 220V/50Hz； 3Ψ 380V 50Hz Total power(KVA) 5 6 6 9 17 18
| Model | LETHV |
| Brand | LabEquipx |
