LEXWT

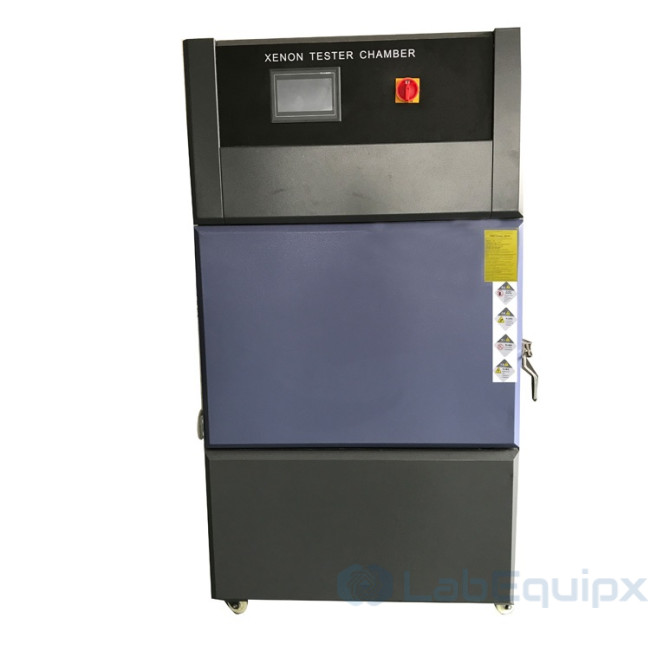

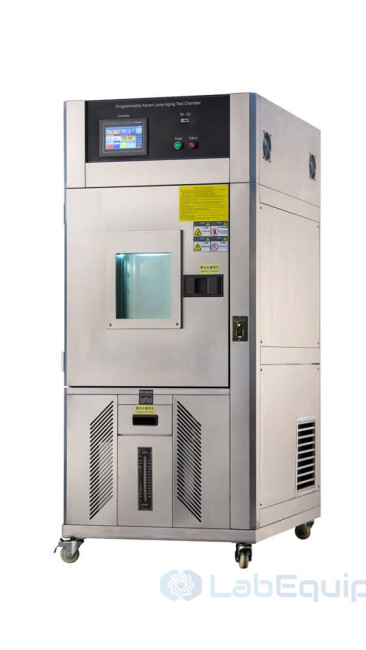

Xenon Water-Cooling Aging Test Chamber LEXWT
Xenon Water-Cooling Aging Test Chamber,is designed to simulate full sunlight spectrum to produce destructive effect on material.
The chamber cansimulates the light, temperature, rainfall (spray) and condensing (humidity), is mainly used to test aging resistance of products or spare parts affected by natural environment, it tests the material aging-resistant performance in sunlight, rain, temperature and humidity, you can know the products quality at a very short time, such as the depigmentation, transmissivity, gloss, peeling, hard, softening.
Specifications:
- We are manufacturer, offer best price for you.
- Major parts adopt imported brands.
- LCD touch screen controller, easy operation.
- Free parts warranty for 12 months.
Features:
- Equipped with black-board temperature meter to adjust temperature inside the chamber.
- Xenon lighting time control.
- Spraying period control.
- Water recycling.
- Automatic constancy of water temperature (cooling of recycling water)
- Spraying, lighting, temperature, humidity and rotating platform can be controlled separately.

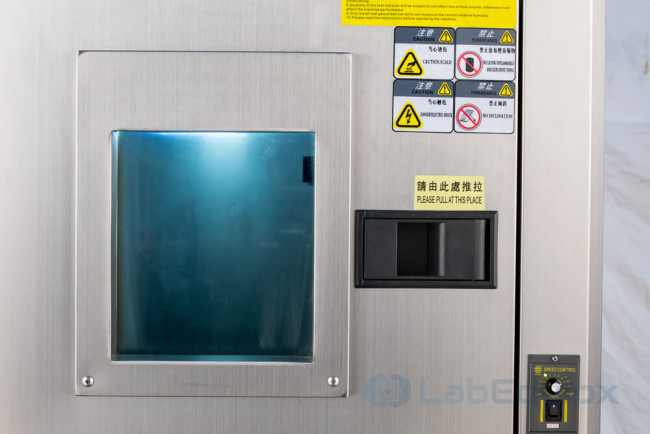

- Equipped with viewing window.
- Water shortage / over-temperature alarm.
- Equipped with irradiance meter to show current light intensity inside the chamber.
- LCD Touch Screen Controller, programmable of temperature, moisture, sun and rain
- Humidity: 50-98%RH
- Temperature: RT to 80C (-20 to 80C as option)
- Blackboard Temperature: 55-100C
- Light Source: Xenon Lamp
- Spray Nozzle: 2mm
Technical parameters:
Model No GXWT-080 GXWT-150 GXWT-225 GXWT-408 GXWT-800 GXWT-1000 Working room(L) 80 150 225 408 800 1000 Inner chamber size(mm)W*H*D 450*500*450 500*600*500 500*600*750 600*850*800 1000*1000*800 1000*1000*1000 Exterior chamber size(mm)W*H*D 900*900*1500 900*920*1500 950*980*1250 1150*1180*1550 1250*1260*1780 1440*1280*2060 Packaging volume(CBM) 3 3.5 4.5 5.5 6 7 G.W.(KGs) 300 320 350 400 600 700 Temperature range RT+10℃~90℃ Performance Temperature range RT+10℃~70℃ Humidity range 50% RH～98%RH Rainfall time 1~9999h/59min adjustable Rainfall cycle 1~240 Min/59min adjustable Xenon lamp power(Kw) 2.2 KW air cooling type,3.3,4.5 or 6KW water cooling type(Lifetime:500 hours) Accuracy range ±0.1℃,±1%RH Material Exterior chamber materia Stainless steel plate+ powder coated Inner chamber materia SUS#304 stainless steel plate Material of sample holder SUS#304 Automatic rotary rack Door insulation High temperature aging silicone rubber door seal System Temperature control Imported weinview color touch screen and PLC control module Siemens Germany Temperature and humidity sensor Platinum resistance.PT100Ω/MV Time controller Programmable time controller Heating System Nichrome heater Humidifying system Stainless steel humidifier Black board temp Metal black board thermometer Water supply Auto water filling system Circulation system Quiet motor and fan Heating System SUS#304 stainless steel high-speed heater Controlling system Digital electronic indicators+S.S.R.+PID Accessories Non-browning glass window 1 set,Rack 2pcs,Xenon lamp 2pcs Leakage, short circuit, over temperature, water shortage, motor overheating, over current protection Power supply AC 3Ψ380V 60/50Hz Power(KW) 7 10 12 12.5 15 16 Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice
| Model | LEXWT |
| Brand | LabEquipx |
