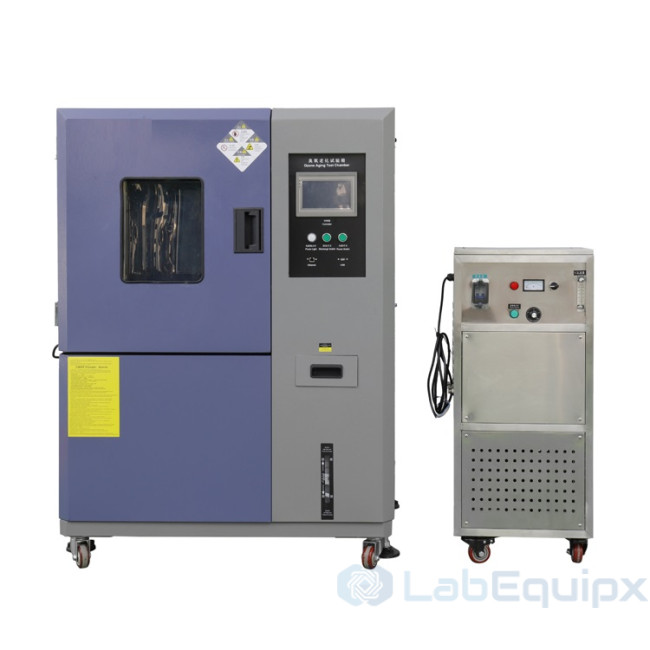

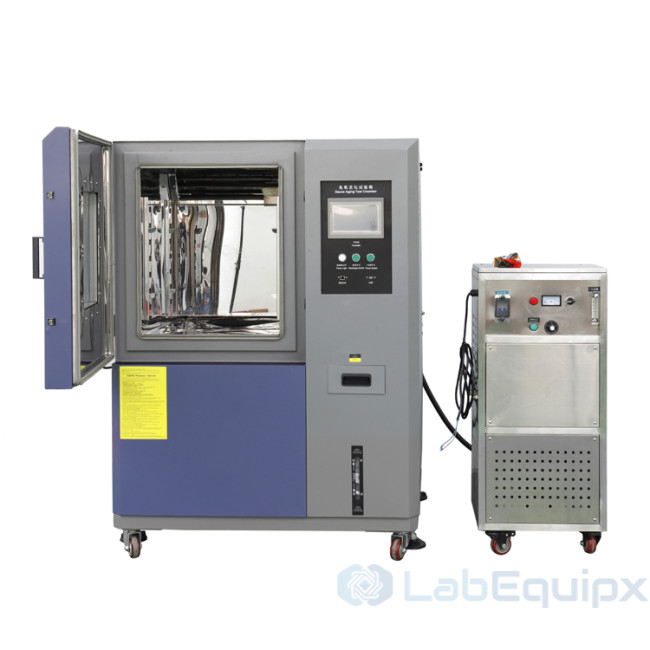

Ozone Aging Test Chamber
The Ozone Aging Test Chamber LEOZT exposes rubber specimens under static tensile deformation, such as vulcanized rubber, thermoplastic rubber and cable insulation sleeves, to a constant ozone concentration and temperature in a sealed, dark chamber for a set time. The specimen surface is then examined for cracks and other property changes to rate its resistance to ozone aging.
How it works
A silent discharge ozone generator feeds the working room and an ozone analyzer measures concentration, which is held within ±10 percent. Ranges offered are 0 to 1000 pphm, a high range of 25000 to 30000 pphm, or 5 to 300 ppm. An air duct interlayer on three walls carries a stainless steel heater, a surface evaporation humidifier and circulating fans; balance exhaust holes on top keep the chamber concentration steady. Temperature runs from room temperature to +80 °C and humidity from 45 to 98 %RH, with fluctuation of ±0.2 °C and ±0.5 %RH. A refrigeration circuit provides cooling and dew point dehumidification. Control is by digital indicators with PID computation and solid state relays. Specimens sit on a rotating aluminum alloy table turning at 1 r/min.
Six sizes are offered, LEOZT-080 to LEOZT-1000, with working rooms of 80, 150, 225, 408, 800 and 1000 L and connected power of 4 to 11.5 kW. The inner chamber is SUS 304 stainless steel, the exterior is powder coated stainless plate, and insulation is PU and fiberglass wool.
What is included
- Chamber with ozone generator and analyzer, heating, humidification, refrigeration and dehumidification systems, and rotating specimen table
- Vacuum glass observation window, 50 mm cable port, status indicator lights, chamber lamp and two loading shelves
- Over-heat circuit breaker; compressor, control system and humidifier overload protection with indicator lamp
Specify for your project
- Chamber volume: 80, 150, 225, 408, 800 or 1000 L
- Ozone concentration range: 0 to 1000 pphm, 25000 to 30000 pphm, or 5 to 300 ppm
- Test standard to be followed, such as ISO 1431
- Specimen form, count and the tensile fixtures required
- Power supply: 110 V or 220 V single phase, or 380 V three phase, 50 or 60 Hz
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Eco-friendly, reliable, industrial, leading status
Refrigeration principle and compressor: In order to meet the requirements of test chamber on temperature decrease rate and lowest temperature.
Creative,efficient, advanced and eco-friendly
Rotary working table: aluminum alloy table board (corrosion resistant). All parts contacting water are made of stainless steel or copper.
Advanced design.Excellent simulation performance
The working room have wind channel inter layer on three walls, equipped with heater and humidifier, circulating fans and other device. On top of the test chamber there are balance exhaust holes to exhaust air in laboratory constantly to keep balance of air concentration in test chamber.
Complied Standards: ISO 1431.
Technical parameters:
Model No LEOZT-080 LEOZT-150 LEOZT-225 LEOZT-408 LEOZT-800 LEOZT-1000 Working room(L) 80 150 225 408 800 1000 Inner chamber size(mm)W*H*D 400*500*400 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000 Exterior chamber size(mm)W*H*D 900*900×950 950*1500*1050 950*1650*1150 1050*1750*1350 1450*1900*1350 1450*1900*1550 Packaging volume(CBM) 2 3 3.5 4.5 5.5 6 G.W.(KGs) 300 320 350 400 600 700 Temperature range RT～+80℃ Humidity range 45%RH～98%RH Performance Temp.&Humi fluctuation ±0.2℃；±0.5%RH Temp.Humi.Uniformity ±1.5℃；±2.5%RH(RH≤75%)，±4%(RH>75%)No-load operation,After stead state 30 min Temp.humi resolution 0.01℃；0.1%RH Ozone concentration 0～1000PPHM, or High concentration 0.025 ~ 0.030 % ( 25000 pphm ~ 30000 pphm),or 5 ~ 300PPM Ozone control accuracy ±10% Ozone generatio Static emissions Sample self rotating speed 1round/min Material Exterior chamber material Stainless steel plate+ powder coated Inner chamber material SUS#304 stainless steel plate Insulation Material PU Fiberglass wool Ozone analyzer Imported ozone density analyzer Ozone generator Silent discharge type ozone generator System Air circulation system Cooling fan Heating System SUS#304 stainless steel high-speed heater Humidification system Surface evaporation system Refrigeration system Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser Dehumidifying system ADP critical dew point cooling/dehumidifying method Controlling system Digital electronic indicators+S.S.R.With PID automatic calculation capability Accessories Multi-layer vacuum glass observation window,cable port(50mm),control status indicator lights, chamber lamp,loading shelves (2pcs for free) Safety protection device Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp. Power supply AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz Power(KW) 4 5.5 5.5 7 9 11.5 Customized service Welcome to Non-standard,Specail requirements,OEM/ODM orders. The technical information will be subjected to change without notice
| Brand | Coretest |
