    • Air-Cooled Industrial Chiller LEACC

    • Product Details

      1. Source components and accessories from original manufacturer or designated agent to make sure they are 100% original
      2. Parts with high energy efficiency to guarantee sufficient heat transfer. Never jerry build our chillers
      3. Specialized control system with Bilingual LCD display, easy to operate
      4. Electrical elements from Schneider to match high standard, insures chiller stability. (Never use low quality electricale lements)

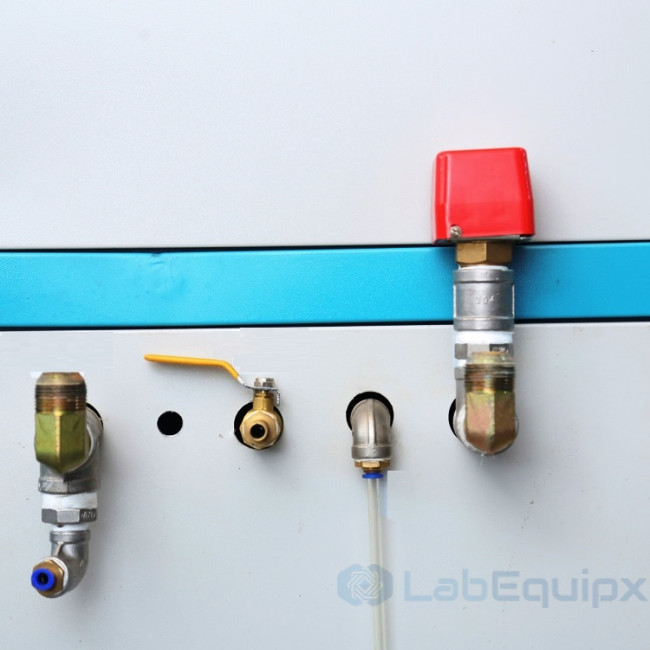

      5. All piping and fittings are with SUS304 material to avoid rusting and corrosion, and ensures higher water quality
      6. Piping interior use anti-vibration pressure hose to reduce leaACCge fault significantly
      7. Installed with protection devices in nine different functions, it will automatically spot the malfunction and feedback to the control panel, easy for fault tracing and maintenance

    • Note:

      1. Cooling capacity is based on chilled water inlet temperature of 12℃, outlet temperature 7℃; cooling inlet air temperature 30℃, outlet air temperature 40℃ calculated
      2. The scope of work chilled water temperature range: 5℃ to 30℃; Chilled water out of the water temperature: 3℃ to 8℃; cooling temperature range: below 35℃ use; cooling air inlet temperature difference: 8℃ to 10℃

      Dimensions above are subject to change without notice.

      Technical Parameters:

      Parameters/Model LEACC-0.6 LEACC-01 LEACC-02 LEACC-03 LEACC-05 LEACC-06 LEACC-08D ACC-10D
      Coolingcapacity KW50HZ/60HZ 1.51.8 2.72.9 5.26.2 7.99.5 13.115.7 15.318.3 20.524.6 26.231.3
      Kcal/h50HZ/60HZ 12901548 23222494 44725332 67948170 1126613502 1315815738 1763021156 2253226918
      Temerature Range5℃~Room Temperature (Below 0℃ can be customized)
      RefrigerantR22 (R410a/R407C/R134a)
      Total Power KW 0.9 1.3 2.2 3.6 5.1 5.9 8.3 10.7
      Power Supply1PH 220V50HZ (110/220V60HZ)3HP 380/415V50HZ (220V/380V/440V/460V60HZ)
      Compressor TypeHermetic RotatingHermetic scroll type or piston
      KW 0.45 0.85 1.7 2.7 4.1 4.8 3.5*2 4.1*2
      Condenser TypeHigh efficient finned copper tube+Low noise outer rotor fan
      Air Volume (m³/h) 750 1000 2000 3000 5000 6000 8000 10000
      Power (W) 45 90 147 216 216*2 216*2 290*2 0.448*2
      Evaporator TypeWater Tank Coil(Shell and tube/Plate type)
      Chilled Water Flow (m³/h) 0.3 0.5 0.9 1.4 2.3 2.7 3.6 4.5
      Tank Volume (L) 16 20 25 50 70 70 120 200
      Pipe Caliber (Inch) 1/2” 1/2” 1/2” 1” 1” 1” 1-1/2” 1-1/2”
      Water Pump Power (KW) 0.37 0.37 0.37 0.75 0.75 0.75 1.5 1.5
      Rated Head (m)20(20-60)
      Size L(mm) 510 550 600 960 1150 1150 1320 1530
      W(mm) 430 480 500 530 560 560 720 780
      H(mm) 760 870 950 1175 1235 1235 1535 1625
      Weight kg 50 73 100 135 175 180 310 450
      Parameters/Model LEACC-12D LEACC-15D LEACC-20D LEACC-25D LEACC-30D LEACC-40F LEACC-50F LEACC-60F
      Cooling capacity KW50HZ/60HZ 30.636.6 37.544.9 55.366.4 61.072.0 83.6100.4 109.6131.5 119.0142.8 150.0179.6
      Kcal/h50HZ/60HZ 2631631476 3225038614 4755857104 5246061920 7189686258 94256113090 102340122808 129000154456
      Temperature range5℃~Room Temperature (Below 0℃ can be customized)
      RefrigerantR22 (R410a/R407C/R134a)
      Total Power KW 12 13.8 19.8 22 32 39 45 60
      Power Supply3HP 380/415V50HZ (220V/380V/440V/460V60HZ)
      Compressor TypeHermetic RotatingHermetic scroll type or piston
      Power KW 4.8*2 5.5*2 8*2 9.1*2 13*2 8*4 9.1*4 13*4
      Condenser TypeHigh efficient finned copper tube+Low noise outer rotor fan
      Air Volume (m³/h) 12000 15000 20000 25000 30000 40000 50000 60000
      Power (W) 448*2 670*2 780*2 780*2 670*4 780*4 780*4 780*6
      Evaporator TypeWater Tank Coil (Shell and tube/Plate type)
      Chilled Water Flow (m³/h) 5.1 7.2 9.5 10.3 14.4 18.9 20.5 28.8
      Tank Volume (L) 200 300 350 350 450 580 580 750
      Pipe Caliber (Inch) 1-1/2” 1-1/2” 2” 2” 2-1/2” 3” 3” 3”
      Water Pump Powe (KW) 1.5 1.5 2.2 2.2 2.2 4 4 4
      Rated Head (m)20(20-60)
      Size L(mm) 1530 1900 1900 1900 1900 2200 2200 2600
      W(mm) 780 950 950 950 1480 1760 1760 1760
      H(mm) 1625 1780 1930 1930 1900 2050 1945 1945
      Weight kg 530 800 830 920 1150 1250 1450 1650
