LEU06

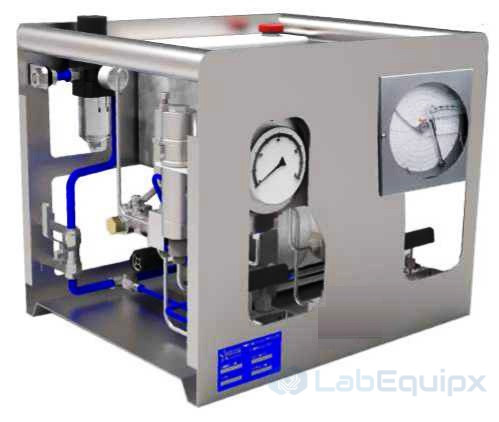

Portable High Pressure Unit LEU06
Features:
- The frame is made of stainless steel plate, which is light and firm.
- Driven by compressed air, the output pressure can be smoothly adjusted by the driving air pressure through the regulator.
- Simple operation, no heating, spark hazard.
- The hydraulic part is made of stainless steel to prevent corrosion.
- Applicable to hydraulic oil, water or other liquid media.
- Pressurization is automatically started after pressure drop, no need to consume gas flow to maintain pressure.

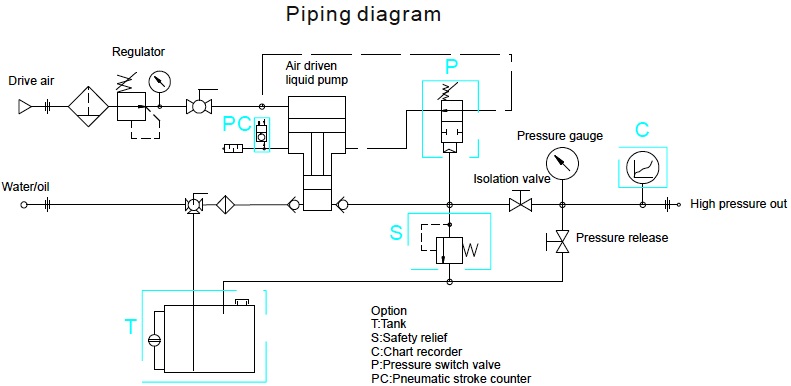

- A variety of accessories are available, such as relief valve, oil tank, pressure sensor, recorder, etc.
Description:
- The drive air pressure range is 1 5psi ~1 50psi, and the pressurization range is 1,600psi~1 00,000psi (the flow rate depends on different air pressure, which can be selected according to the type table behind).
- Suitable for a variety of application scenarios, hydraulic tools, hose blasting test, test system pressure supply, leakage test, high pressure loading, railway wheel equivalence.
Construction & Dimension Portable High Pressure Unit LEU06:
Drive air pressure 1 5~1 50psi Material of high pressure pump head 17-4PH Seal material PTFE & Buna.N Work temperature -40~250°F(-40 ~120°C)Standard Construction:
* The size is shown in the model parameter selection table.
Ordering Code:
Type & Parameters:
Code Max.pressure (psi) Max.flow rate (l/min) Hydraulic outlet Drive air inlet Diemension(mm) - L Diemension(mm) - H* Diemension(mm) - W LEU06-1S-10 1600 19.9 1/2FNPT G3/8 540 430 480 LEU06-1S-1 5 2400 13.3 1/2FNPT G3/8 540 430 480 LEU06-1S-25 4000 8 1/2FNPT G3/8 540 430 480 LEU06-1S-35 5700 5.7 1/2FNPT G3/8 540 430 480 LEU06-1S-60 10000 3.3 1/2FNPT G3/8 540 430 480 LEU06-1S-100 15000 2 1/2FNPT G3/8 540 430 480 LEU06-1S-1 50 22500 1.3 1/4HF G3/8 540 430 480 LEU06-1S-225 33750 0.7 1/4HF G3/8 540 430 480 LEU06-1S-300 45000 0.5 1/4HF G3/8 540 430 480 LEU06-1S-450 60000 0.3 1/4HF G3/8 540 430 480 LEU06-2S-20 3200 19.9 1/2FNPT G3/8 540 430 480 LEU06-2S-30 4800 13.3 1/2FNPT G3/8 540 430 480 LEU06-2S-50 5000 8 1/2FNPT G3/8 540 430 480 LEU06-2S-70 11000 5.7 1/2FNPT G3/8 540 430 480 LEU06-2S-120 19000 3.3 1/2FNPT G3/8 540 430 480 LEU06-2S-200 33000 1.5 1/4HF G3/8 540 430 480 LEU06-2S-300 50000 1 1/4HF G3/8 540 430 480 LEU06-2S-450 70000 0.7 1/4SF G3/8 540 430 480 LEU06-2S-600 75000 0.5 1/4SF G3/8 540 430 480 LEU06-3S-675 70000 0.41 1/4SF G3/8 650 430 480 LEU06-3S-900 75000 0.33 1/4SF G3/8 650 430 480 LEU06-3S-1350 100000 0.2 1/4SF G3/8 650 430 480 LEU06-1D-10 1600 29.9 1/2FNPT G3/8 540 430 480 LEU06-1D-15 2400 19.9 1/2FNPT G3/8 540 430 480 LEU06-1D-25 4000 11.9 1/2FNPT G3/8 540 430 480 LEU06-1D-35 5700 8.6 1/2FNPT G3/8 540 430 480 LEU06-1D-60 10000 4.9 1/2FNPT G3/8 540 430 480 LEU06-1D-100 16500 3 3/8MF G3/8 540 430 480 LEU06-1D-150 22500 2 3/8MF G3/8 540 430 480 Code Max.pressure(psi) Max.flow rate(l/min) Hydraulic outlet Drive air inlet Diemension(mm) - L Diemension(mm) - H* Diemension(mm) - W HPU06-1D-7L 1000 132 3/4FNPT G3/8 650 430 480 HPU06-1D-12L 1850 82.1 3/4FNPT G3/8 650 430 480 HPU06-1D-35L 4375 31 1/2FNPT G3/8 650 430 480 HPU06-1D-60L 7500 18.1 1/2FNPT G3/8 650 430 480 HPU06-1D-100L 10000 10.8 1/2FNPT G3/8 650 430 480 HPU06-2D-70 11000 8.6 1/2FNPT G3/8 650 430 480 HPU06-2D-120 19000 4.9 1/2FNPT G3/8 650 430 480 HPU06-2D-200 33000 3 1/4HF G3/8 650 430 480 HPU06-2D-300 50000 2 1/4HF G3/8 650 430 480 - H* is the height of the standard 5L oil tank. When 10L is selected, the height(H) is 480mm;
- 1psi=0.0689bar,1l/min=0.264gallon/min;
- Ordering codes listed are standard. Other sizes, materials and types are available upon request.
| Model | LEU06 |
| Brand | LabEquipx |
