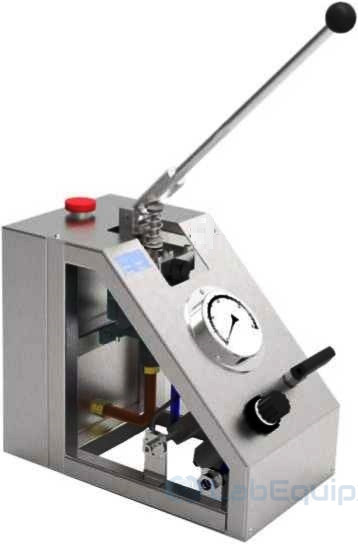

Lightweight Mini Hydraulic Unit LEU03

Features:

• The frame is made of stainless steel square tube, which is light and firm;
• It could be driven by compressed air or manual drive (optional) ,The output pressure can be smoothly adjusted by the driving air pressure through the regulator;
• Simple operation, no heating, spark hazard;
• The hydraulic part is made of stainless steel to prevent corrosion;
• Applicable to hydraulic oil, water or other liquid media;
• Automatically start pressurization after pressure drop, no need to consume gas flow to maintain pressure.

Description:

• The air pressure range is 15psi ~1 50psi, and the pressurization range is 625psi~ 25,000psi (the flow rate depends on different air pressure, which can be selected according to the type table behind);
• Suitable for a variety of application scenarios, hydraulic tools, hose blasting test, test system pressure supply, leakage test, high pressure loading, railway wheel equivalence.
