Hand Pump Hydraulic Unit LEUM

Features:
- The frame is made of stainless steel square tube, which is light and firm.
- Manual drive, suitable for no air source, power supply and other non-power occasions.
- Simple operation, no heating, spark hazard.
- The hydraulic part is made of stainless steel to prevent corrosion.
- Applicable to hydraulic oil, water or other liquid media.
Description:
- The pressurization range is 2,500psi~30,000psi.

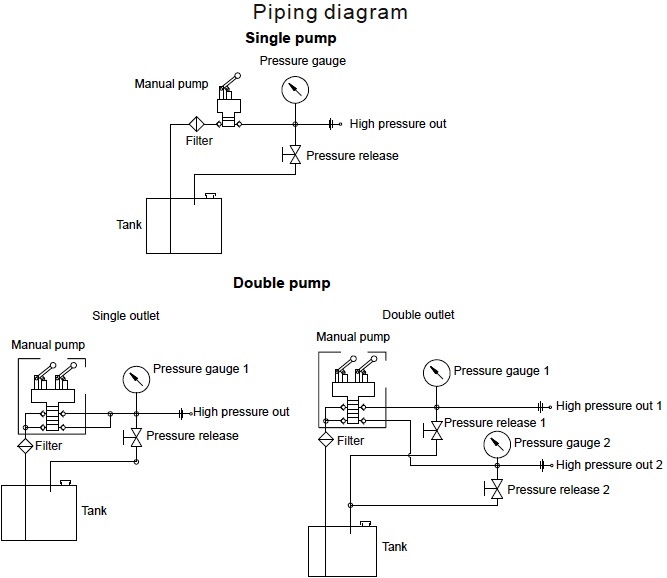

- In a double pump single output structure, the two outputs through the pipeline confluence, low pressure high flow, high pressure low flow, effectively improve the output efficiency.
- Double output structure is suitable for the situation that two channels need different pressure supply at the same time.
- Suitable for a variety of applications, hydraulic tools, hose blasting test, test system pressure supply, leakage test, high pressure loading, railway wheel equivalence.

Construction & Dimension Hand Pump Hydraulic Unit LEUM:

Tank volume	5L	Material of high pressure pump head	17-4PH
Seal material	PTFE & Buna.N	Work temperature	-40~250°F(-40 ~120°C)Standard

Construction:

Ordering Code:

Type & Parameters:

Single pump

Code	Action	Max. pressure(psi)	Dis. flow rate(ml)	Hydraulic outlet
LEUM-SS-0A	Single action	20000	2.6	3/8FNPT
LEUM-SS-1A	Single action	10000	4.1	3/8FNPT
LEUM-SS-2A	Single action	5000	9.2	3/8FNPT
LEUM-SS-3A	Single action	2500	17.7	3/8FNPT
LEUM-SS-1D	Double Action	10000	2500psi under 9.2 2500psi up 4.1	3/8HF
LEUM-SS-2D	Double Action	20000	5000psi under 9.2 5000psi up 2.6	3/8HF
LEUM-SS-3D	Double Action	30000	2500psi under 9.2 2500psi up 1.7	3/8HF

Double pump

Code	Max. pressure(psi) - High pressure pump	Max. pressure(psi) - Low pressure pump	Dis. flow rate(ml) - High pressure pump	Dis. flow rate(ml) - Dis. flow rate(ml)	Hydraulic outlet
LEUM-SS-1B2B	10000	5000	4.1	9.2	3/8HF
LEUM-SS-2B3B	5000	2500	9.2	17.7	3/8HF
LEUM-SS-1B3B	10000	2500	4.1	17.7	3/8HF

1psi=0.0689bar,1l/min=0.264gallon/min;
Ordering codes listed are standard. Other sizes, materials and types are available upon request.

Model	LEUM
Brand	LabEquipx
