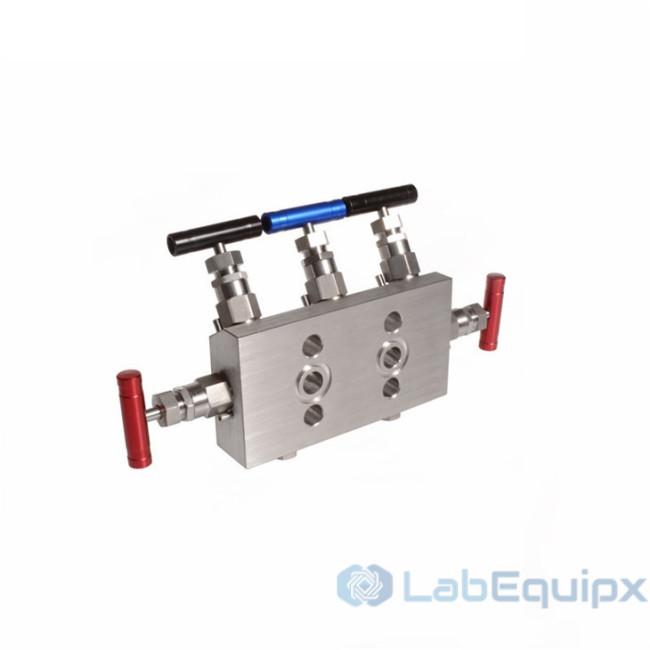

  • The le119928348 is a five-valve integration manifold for a differential pressure transmitter. Block, equalize, vent and test functions sit in one stainless steel SS316 body that the transmitter mounts onto. Instrument technicians use it to isolate, zero and calibrate a transmitter on a flow or differential pressure line while the process piping stays connected and under pressure.

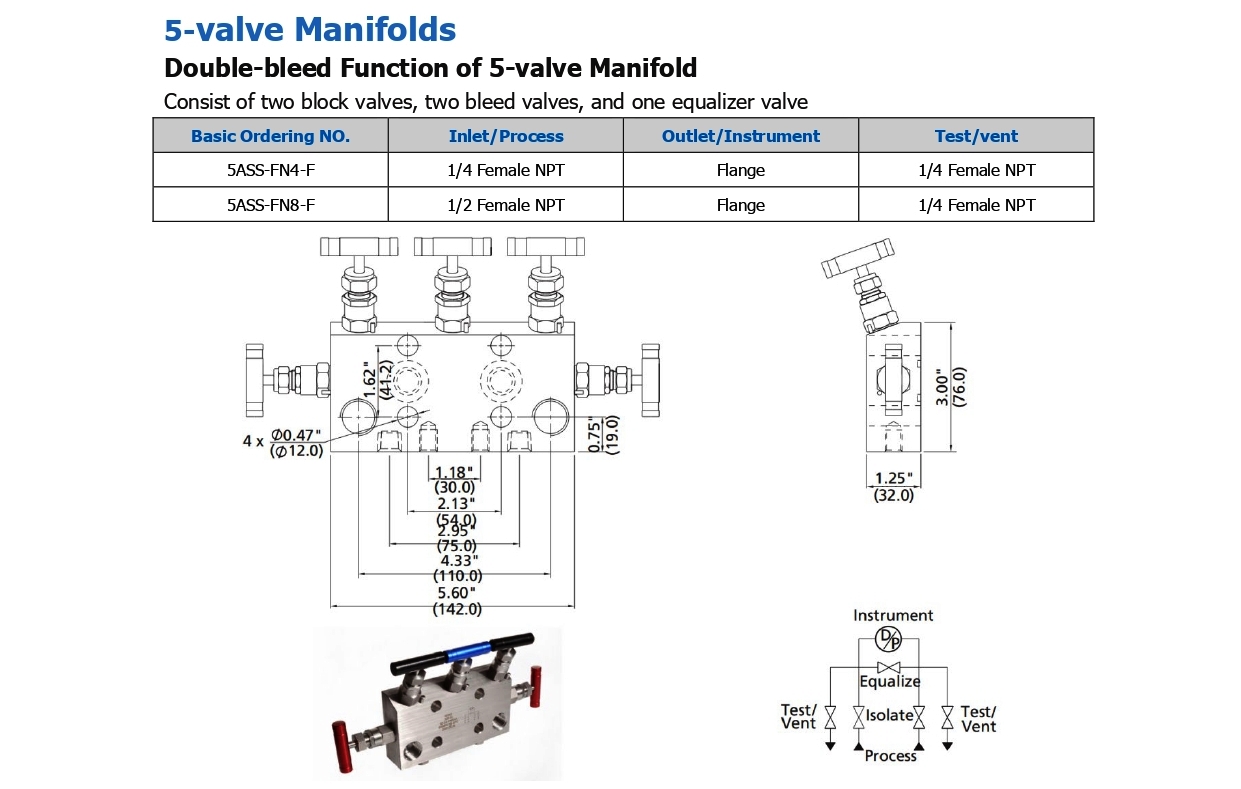

    How it works

    In the usual five-valve arrangement, two block valves separate the high and low process sides from the transmitter. Two equalizing valves connect both sides across the transmitter, so its zero can be checked at equal pressure. The fifth valve opens the vent and test port: with the process blocked, the transmitter is depressurized through it and a calibration source is connected to the same port. Isolation, venting and calibration are done from one assembly. The exact valve arrangement is confirmed in the project datasheet.

    Design

    • Body: stainless steel SS316
    • Ports: 1/2 inch, threaded
    • Rated pressure: 6000 psi
    • Process temperature range: on request
    • Operation: manual, five hand-operated valves
    • Media: water, oil, gas and alkaline or acidic liquid

    What is included

    • Five-valve manifold body in stainless steel SS316
    • Manual valve operators
    • 1/2 inch threaded port connections

    Specify for your project

    • Process medium and maximum working pressure, up to 6000 psi
    • Process temperature
    • Thread standard for the 1/2 inch ports
    • Transmitter model and mounting arrangement
    • Quantity: the minimum order is 20 pieces

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • Port Size1/2 inch
    MediaWater, Oil, Gas and Alkaline or Acidic Liquid
    • 5 Valves Integration Manifolds
    • 5 Valves Integration Manifolds
    • 5 Valves Integration Manifolds
    • 5 Valves Integration Manifolds
    • 5 Valves Integration Manifolds
  • Product Details

    • Product name: 5 Valves Integration Manifolds
    • Port Size: 1/2 inch
    • Model Number: 5D-SS-FN8-A
    • Media: Water, Oil, Gas and Alkaline or Acidic Liquid
    • MOQ: 20pcs
    • Pressure: 6000psi
    • Media temperature: on request
    • Power: Manual
    • Connection Mode: Thread
    • Material: Stainless Steel
    • Standard: Standard
