SS-WDC-MT-BW
Double Ferrules Weld Connectors

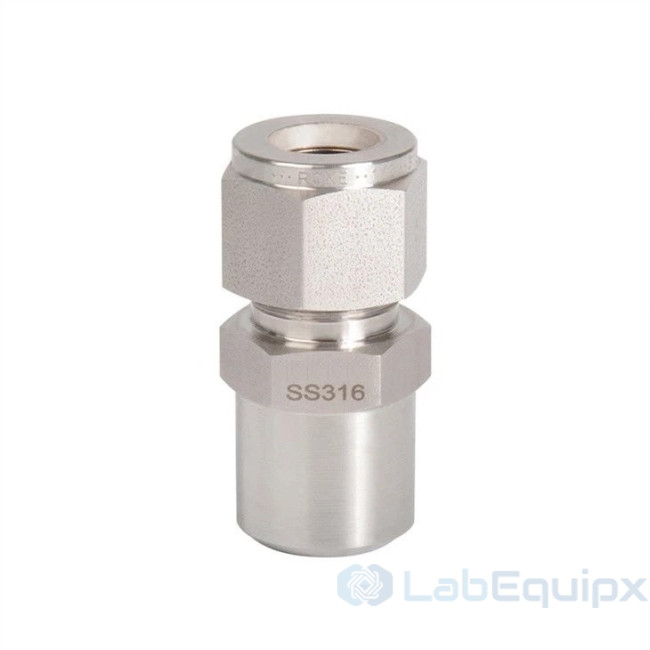

Double Ferrule Weld Connectors (SS-WDC-MT-BW) are stainless steel compression fittings that join metric tubing to a butt-welded connection. Tube sizes run from 2 mm to 38 mm. The compression end grips the tube, and the weld end is welded into pipe or equipment, giving a permanent connection where tubing meets a fixed process line.
How it works
On the tube side, a nut drives two ferrules into the connector body as it is tightened. The ferrules seal on the tube outside diameter and hold it against pressure. The opposite end is prepared for a butt weld and joined to the mating pipe or port. The thread type is UNF. The connector is intended for high pressure and high temperature service; pressure and temperature ratings are stated in the project datasheet. Minimum order is 20 pieces.
What is included

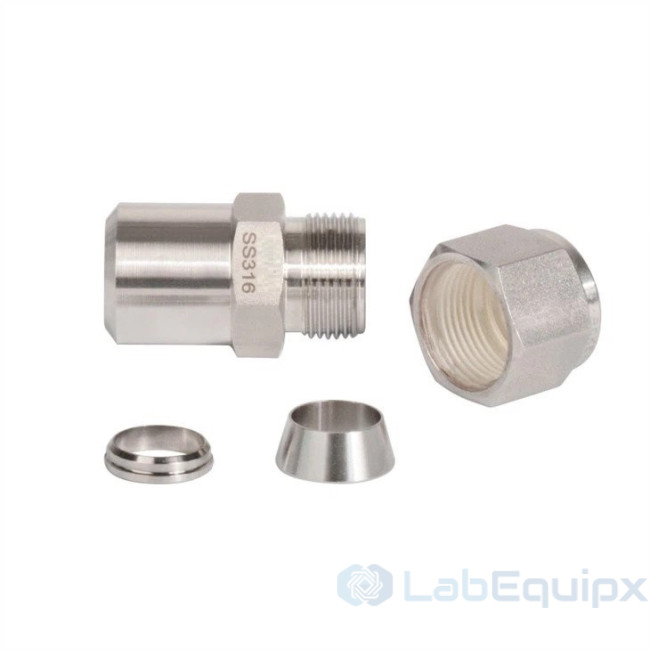

- Stainless steel connector body with butt weld end, nut and two ferrules
Specify for your project
- Tube outside diameter, 2 mm to 38 mm
- Weld end size and wall thickness of the mating pipe
- Working pressure and temperature
- Stainless steel grade, matched to the weld joint
- Quantity, minimum 20 pieces
This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
Material Stainless Steel Port Size 2mm-38mm Product Details
- Model Number: SS-WDC-MT-BW
- Product name: Weld Connectors
- Material: Stainless Steel
- Port Size: 2mm-38mm
- Installation: Welded
- Pressure: High Pressure
- Work Temperature: High Temperature
- Thread Type: UNF
- Certificate: ISO9001and CE
- MOQ: 20pcs
| Model | SS-WDC-MT-BW |
| Brand | Coretest |
