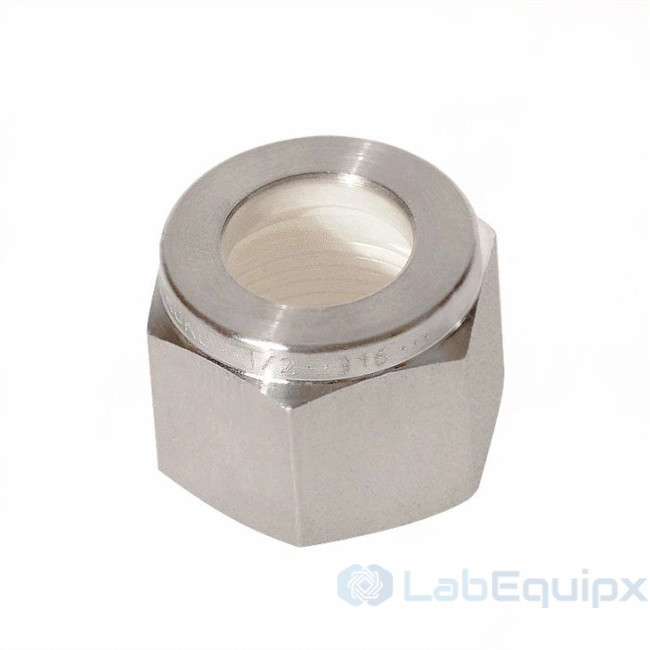

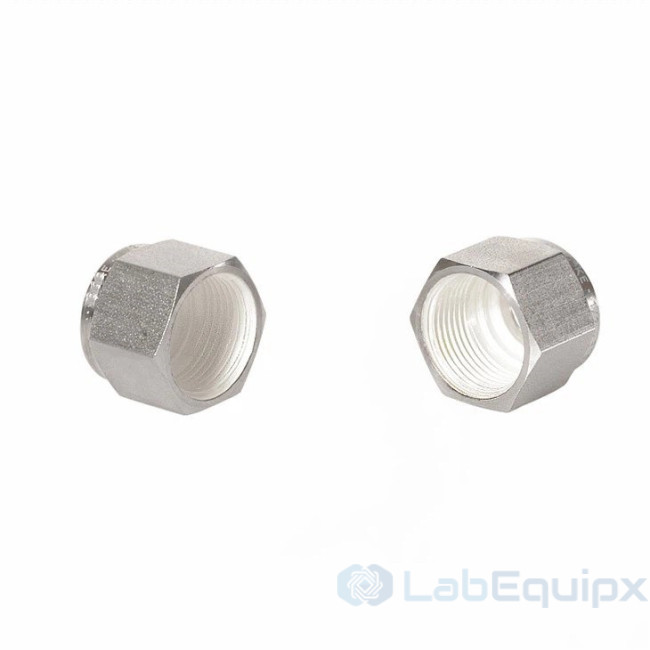

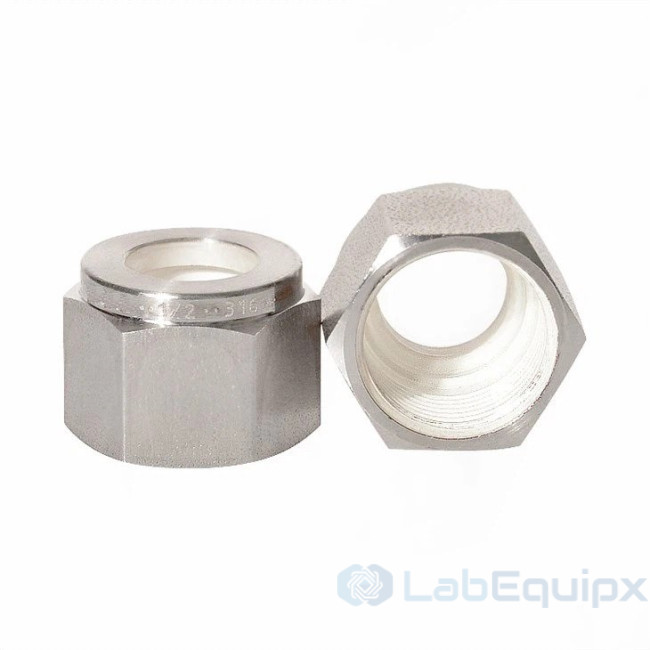

Tube Nuts

Stainless Steel Twin Ferrules Nuts.

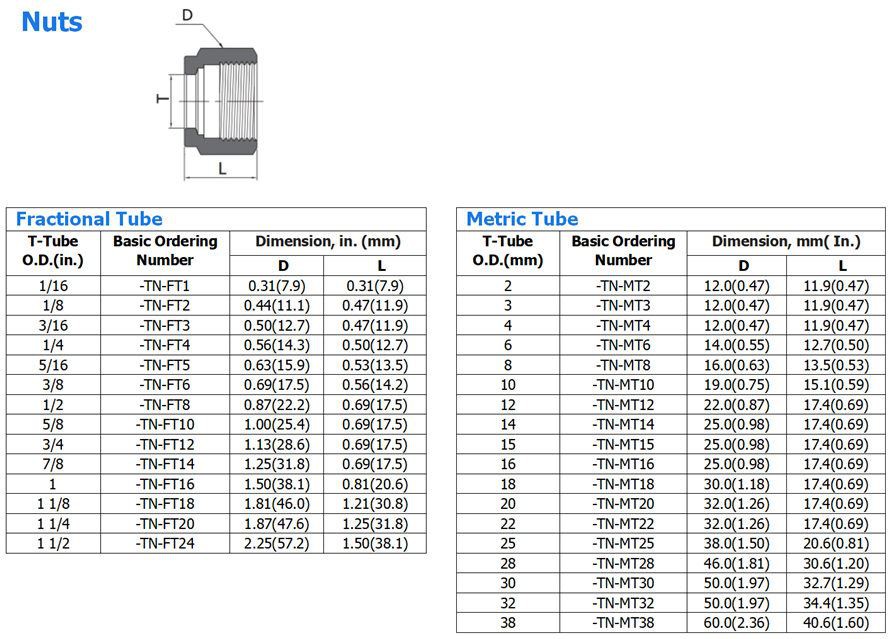

Technical Data

The nuts of tube fittings are all silver plated and glaze our own patented. In this way, the installation torque can be controlled within a reasonable range. Especially in the case of narrow space or suspended operation, it makes installation very easy.
Product Details
- Name: Twin Ferrules Nuts
- Pressure: 3000-10000PSI
- Model Number: TN Series
- Port Size: 1/16"-1 1/2"
- Application: General
- Temperature of Media: -325 to 803℉ (-198 to 426℃)
- Certificate: ISO9001and CE
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Standard or Nonstandard: ASTM
- Product name: Tube Nuts
- Connection: Compression
- MOQ: 10pcs
- Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
