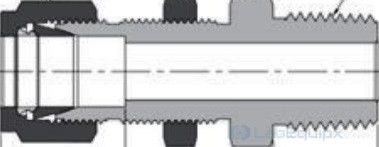

Double Ferrules Bulkhead Unions

Stainless Steel Double Ferrules Bulkhead Male Connectors.

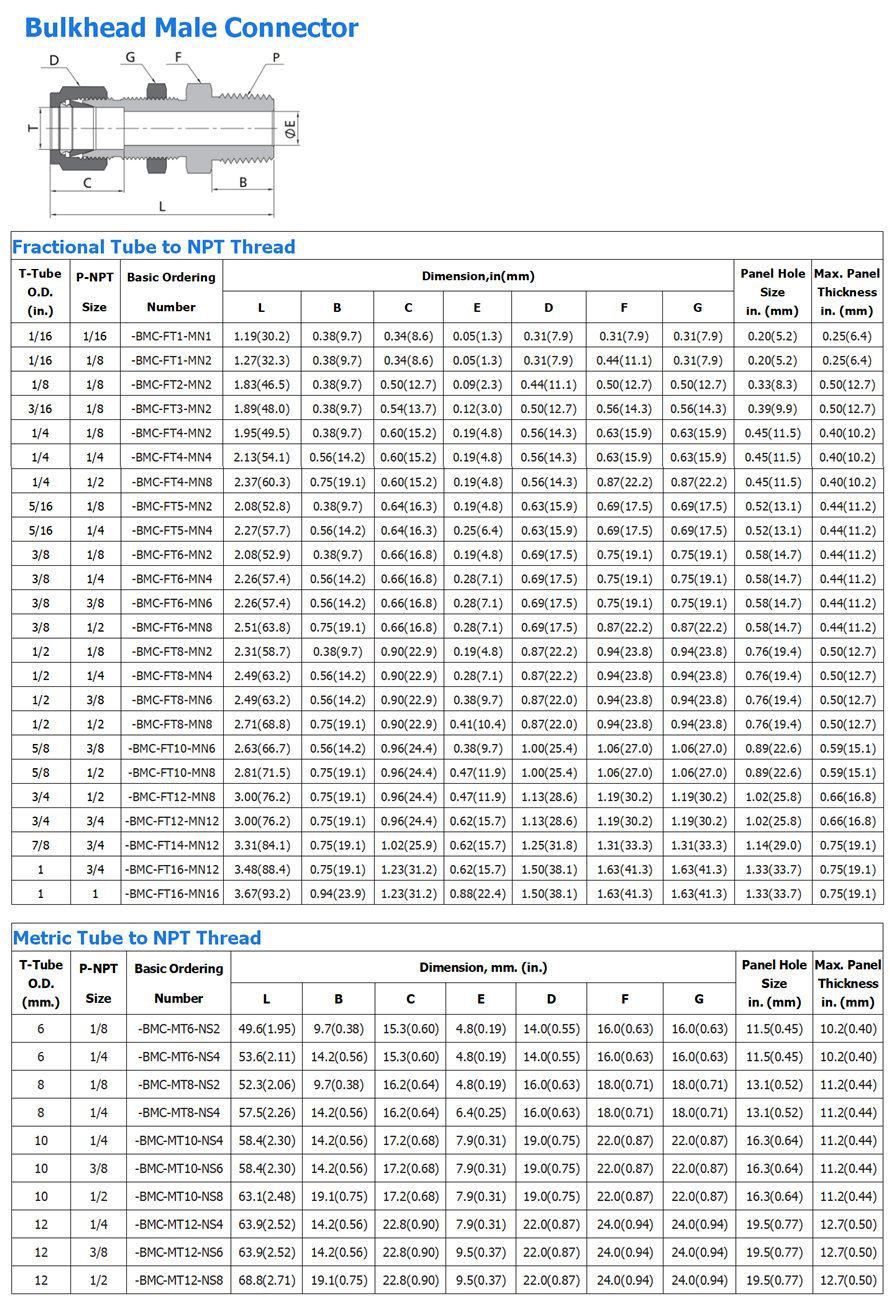

Technical Data
Product Details
- Model Number: BMC Series
- Application: General
- Temperature of Media: -325 to 800℉ (-198 to 426℃)
- Pressure: 3000-10000PSI
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Standard or Nonstandard: ASTM
- Product name: Bulkhead Male Connectors
- Connection: Compression
- Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
- Size: 1/16"-1 1/2" or 2-38mm
- MOQ: 10pcs
- Certificate: ISO9001and CE

Model	BMC Series
Brand	LabEquipx
Temperature of Media	-325 to 800℉ (-198 to 426℃)
Application	General
