AFW

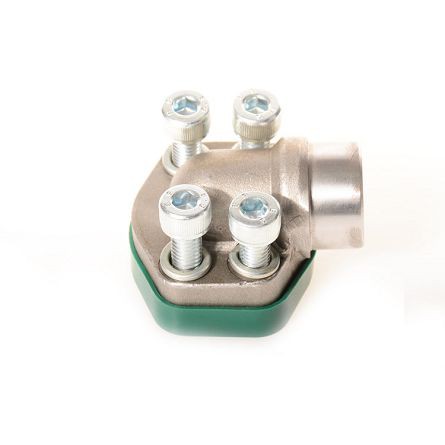

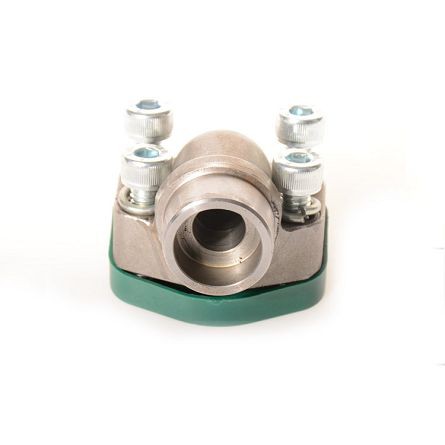

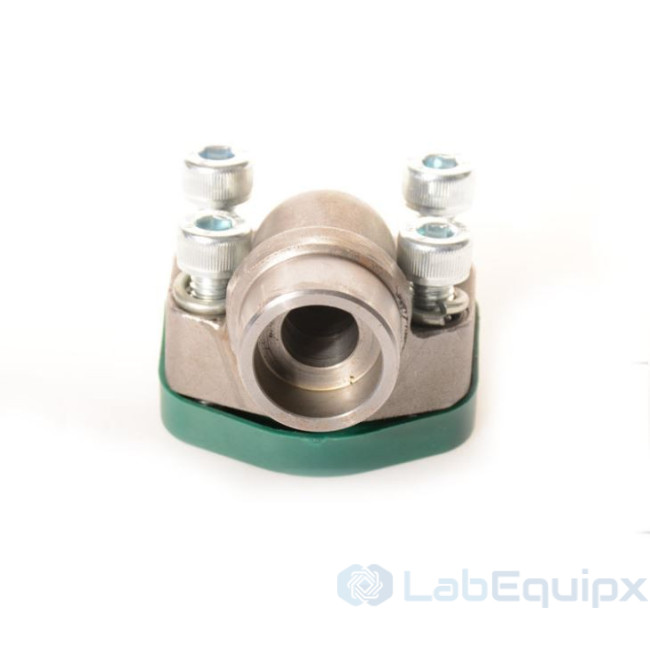

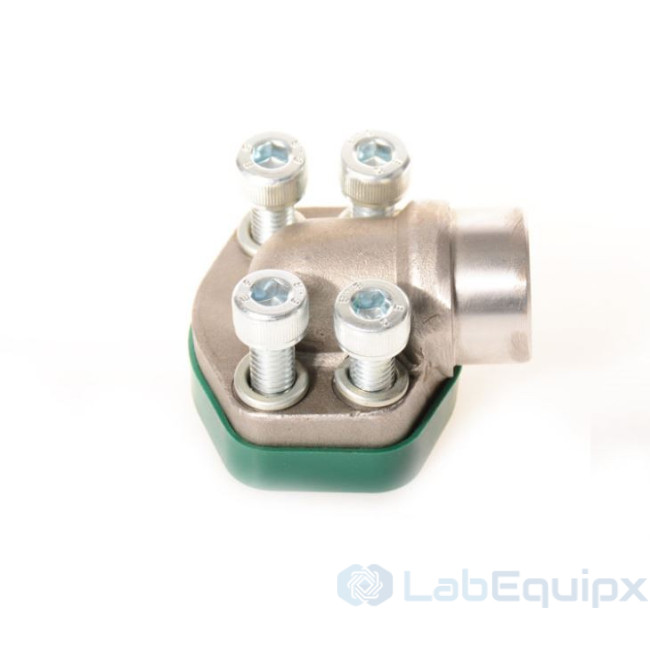

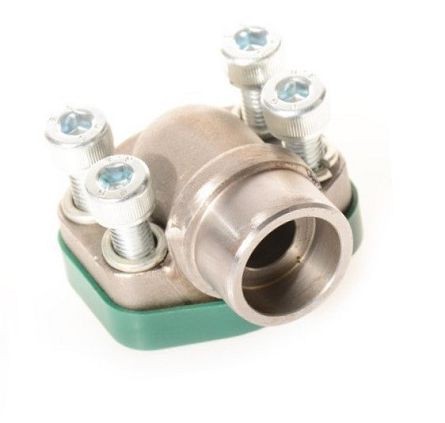

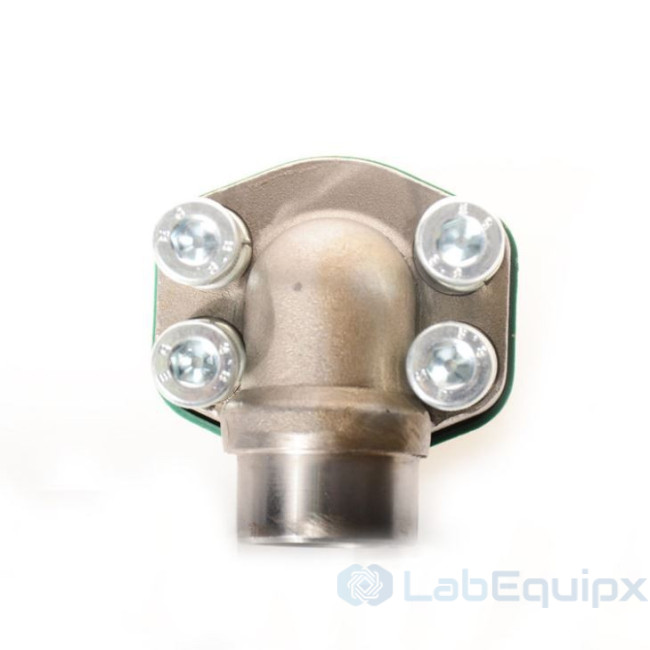

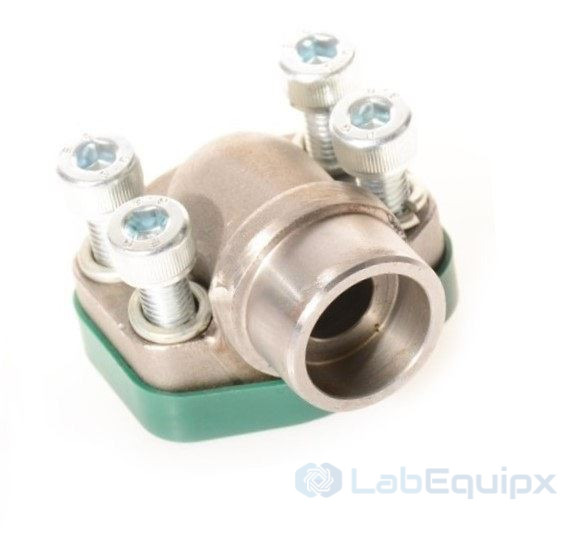

90° Socket Weld Flange
Stainless Steel SAE-J518 ISO 6162.2 Heavy/Light 6000psi/3000psi 90 Degree Socket Weld SAE Flange Elbow.
Carbon Steel SAE-J518 ISO 6162.2 Heavy/Light 6000psi/3000psi 90 Degree Socket Weld SAE Flange Elbow.

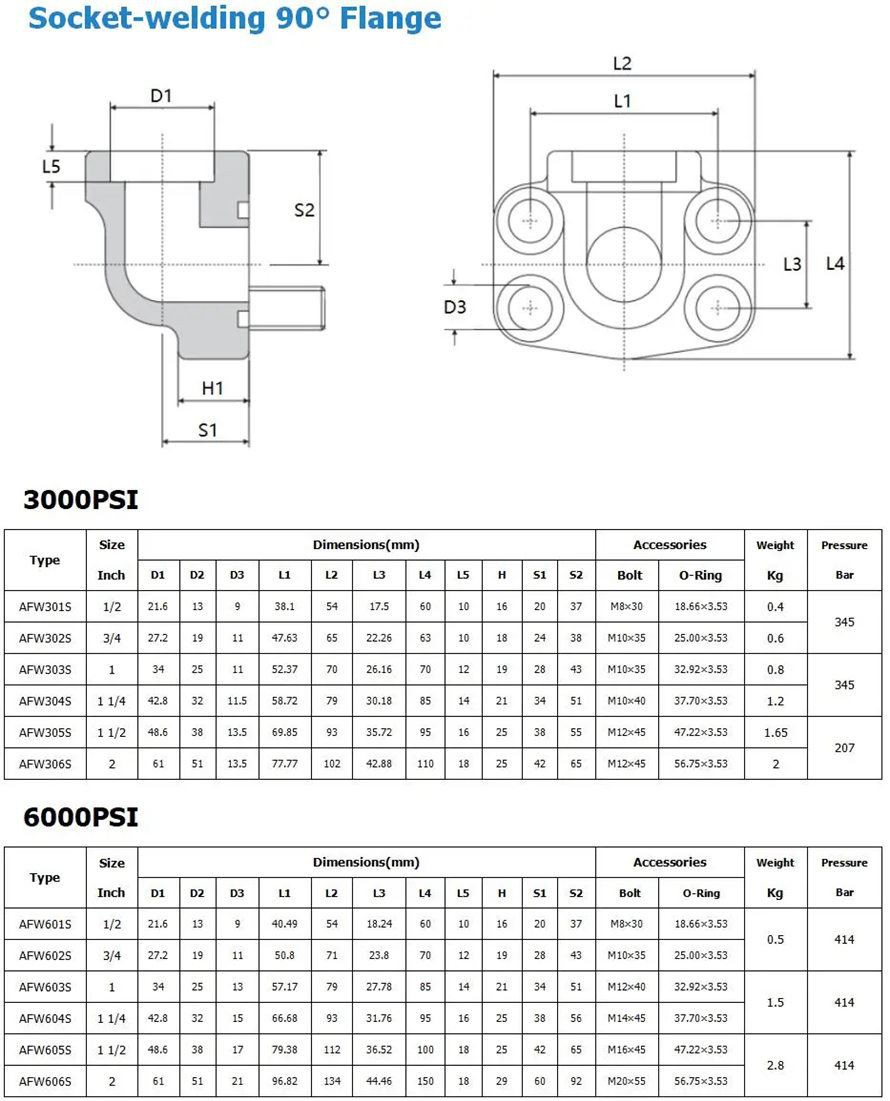

Technical Data
Product Details
Stainless Steel SAE-J518 ISO 6162.2 Heavy/Light 6000psi/3000psi 90 Degree Socket Weld SAE Flange Elbow
- Product name: 90°Socket Weld Flange
- Standard: ANSI, DIN, ISO
- Type: Welding Flange
- Material: Stainless Steel
- Structure: Flanges
- Model NO: SS-AFW
- Connection: Welding
- Sealing Surface: O-Ring
- Manufacturing Way: Forging
- Pressure: 3000psi to 6000psi
- Port Size: 1/2"-3"
- Temperature: high pressure
- MOQ: 20pcs
Carbon Steel SAE-J518 ISO 6162.2 Heavy/Light 6000psi/3000psi 90 Degree Socket Weld SAE Flange Elbow
- Model Number: CS-AFW
- Material: Carbon Steel
- Standard: ANSI, DIN, ISO
- Type: Welding Flange
- Material: Carbon Steel
- Structure: Flanges
- Pressure: 3000psi to 6000psi
- Temperature: high pressure
- MOQ: 20pcs
- Connection: Welding
- Sealing Surface: O-Ring
| Model | AFW |
| Brand | LabEquipx |
