Ultra High Pressure Elbow

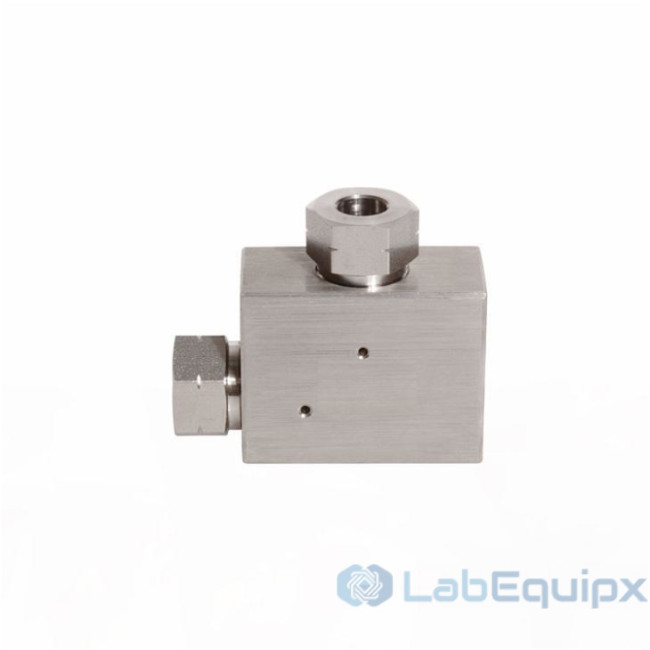

The Ultra High Pressure Elbow (SS-SPE-60000) is a right-angle fitting for tubing lines rated to 60,000 psi. It is offered for 1/4 in, 3/8 in and 9/16 in tubing. The standard body material is SS316; SS304, SS316Ti, F51, F53, Inconel, Monel and Hastelloy are listed as alternatives. Working temperature is -54 to 500 C.

How it works

The elbow turns a line through 90 degrees while holding pressure well above standard instrument ratings. Fittings in this group use coned and threaded connections: the tube end seals metal to metal against the fitting body, where compression fittings would not hold. The listing gives the thread type as UNF, BSPT or UNC, references ASTM as the applicable standard, and lists ISO 9001 and CE certificates.

What is included

• Ultra high pressure elbow body, SS316 as standard
• Glands and collars for the tube ends are listed as separate items in the same group

Specify for your project

• Tube size: 1/4 in, 3/8 in or 9/16 in
• Body material, SS316 or one of the listed alloys
• Working pressure and temperature
• Thread type: UNF, BSPT or UNC
• Quantity per order and material certificates, if required

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Product Details

• Name: Ultra High Pressure Elbow
• MOQ: 10pcs
• Specification: 1/4" 3/8" 9/16"
• Model NO: SS-SPE-60000
• Installation: Coned and threaded
• Type: Right Angle
• Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
• Pressure: 60000 Psi
• Work Temperature: -54 to 500 C
• Certificate: ISO9001and CE
• Standard or Nonstandard: ASTM
• Thread Type: UNF/BSPT/UNC
