      • Medium/High Pressure Fittings Elbows SPE Series

      • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Elbows SPE Series.

        Technical Data:

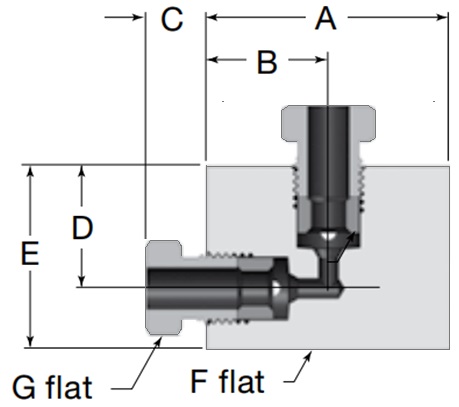

        Tube OD In. Ordering NO. Dimensions in.(mm)
        A B C D E F G
        20,000 psig (1378 bar)
        1/4 -SPE-T4-20K 1.50 (38.1) 0.75 (19.1) 0.38 (9.7) 0.75 (19.1) 1.13 (28.6) 5/8 1/2
        3/8 -SPE-T6-20K 1.75 (44.5) 1.00 (25.4) 0.48 (12.2) 1.00 (25.4) 1.38 (35.1) 3/4 5/8
        9/16 -SPE-T9-20K 2.25 (53.8) 1.25 (31.8) 0.68 (17.3) 1.25 (31.8) 1.75 (44.5) 1 7/8
        3/4 -SPE-T12-20K 2.50 (63.5) 1.50 (38.1) 0.59 (15.0) 1.50 (38.1) 2.25 (57.2) 13/8 13/16
        1 -SPE-T16-20K 3.50 (88.9) 2.06 (52.3) 0.74 (18.8) 2.06 (52.3) 3.00 (76.2) 13/4 13/8
        15,000 psig (1034 bar)
        1 1/2 -SPE-T24-15K 4.38 (111) 2.88 (73.2) 1.10 (27.9) 2.88 (73.2) 4.00 (102) 21/4 17/8

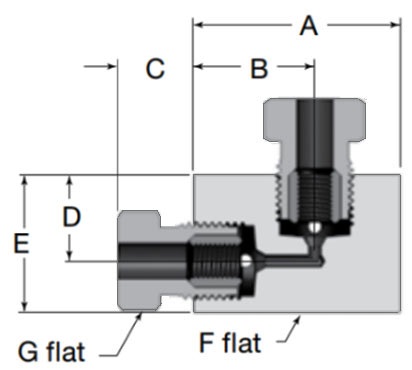

        Tube OD In. Ordering NO. Dimensions in.(mm)
        A B C D E F G
        60,000 psig (4134 bar)
        1/4 -SPE-T4-60K 1.50 (38.1) 0.88 (22.4) 0.59 (15.0) 0.63 (15.9) 1.00 (25.4) 3/4 5/8
        3/8 -SPE-T6-60K 2.00 (50.8) 1.25 (31.8) 0.72 (18.3) 1.00 (25.4) 1.50 (38.1) 1 13/16
        9/16 -SPE-T9-60K 2.62 (66.5) 1.88 (47.6) 1.00 (25.4) 1.13 (28.6) 1.88 (47.6) 13/8 13/16

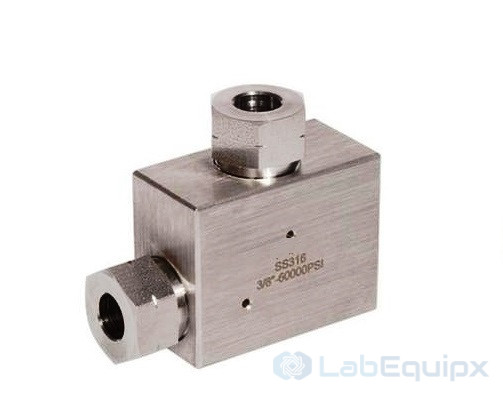

        • Medium/High Pressure Fittings Elbows SPE Series
      • Medium/High Pressure Fittings Elbows SPE Series
        ModelSPE
        BrandLabEquipx
