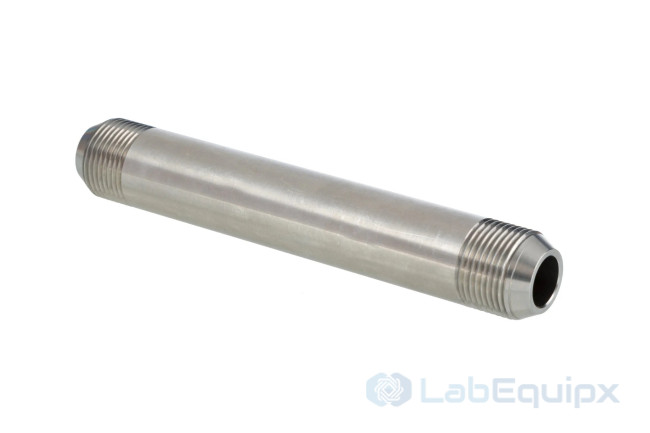

    • Medium/High Pressure Fittings Tube Nipples for Cone and Thread Products SPCL/SPG Series

    • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Tube Nipples for Cone and Thread Products SPCL/SPG Series.

      Technical Data:

      Tube OD In. Ordering NO. Dimensions in.(mm)

      		E L (min) Tube Engagement Length
      20,000 psig (1378 bar)
      -SPSH-T4-20K 1/4 0.109(2.77) 2.00(50.8) 0.56(14.2)
      -SPSH-T6-20K 3/8 0.203(5.16) 2.50(63.5) 0.69(17.5)
      -SPSH-T9-20K 9/16 0.312(7.92) 3.00(76.2) 0.84(21.3)
      -SPSH-T12-20K 3/4 0438(11.1) 3.25(82.6) 1.00(25.4)
      -SPSH-T16-20K 1 0.562(14.3) 4.50(114) 1.47(37.3)
      Tube OD In. Ordering NO. Dimensions in.(mm)

      		E L (min) Tube Engagement Length
      60,000 psig (4134 bar)
      -SPSH-T4-60K 1/4 0.083(2.11) 2.75 (69.8) 0.5(12.7)
      -SPSH-T6-60K 3/8 0.125(3.18) 3.00 (76.2) 0.69(17.5)
      -SPSH-T9-60K 9/16 0.188(4.78) 4.00(101.6) 0.88(22.4)
      • Medium/High Pressure Fittings Tube Nipples for Cone and Thread Products SPCL/SPG Series
    • Medium/High Pressure Fittings Tube Nipples for Cone and Thread Products SPCL/SPG Series
      ModelSPCL/SPG
      BrandLabEquipx
