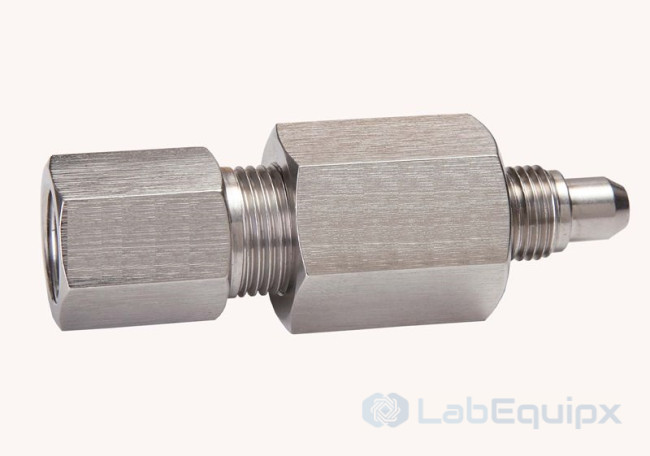

      • Medium/High Pressure Fittings Safety Heads SPSH Series

      • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Safety Heads SPSH Series.

        Technical Data:

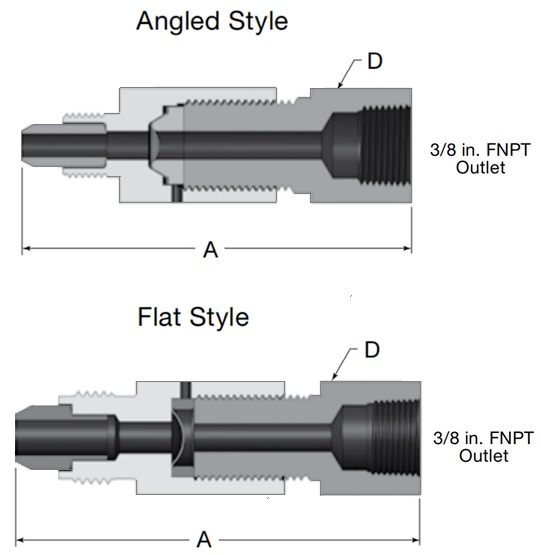

        Tube OD In. Ordering NO. Dimensions in.(mm)

        		A D
        20,000 psig (1378 bar)
        1/4 -SPSH-T4-20K 3.42 (86.9) 1 (25.4)
        3/8 -SPSH-T6-20K 3.42 (86.9) 1 (25.4)
        9/16 -SPSH-T9-20K 3.56 (90.4) 1 (25.4)
        Tube OD In. Ordering NO. Dimensions in.(mm)

        		A D
        60,000 psig (4134 bar)
        1/4 -SPSH-T4-60K 3.24 (82.3) 1 (25.4)
        3/8 -SPSH-T6-60K 3.59 (91.2) 1 (25.4)
        9/16 -SPSH-T9-60K 3.72 (94.5) 1 (25.4)
        • Medium/High Pressure Fittings Safety Heads SPSH Series
      • Medium/High Pressure Fittings Safety Heads SPSH Series
        ModelSPSH
        BrandLabEquipx
