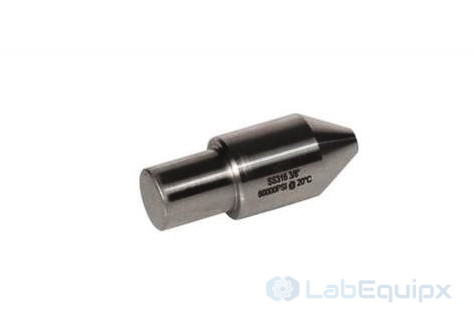

      • Medium/High Pressure Fittings Plugs SPP Series

      • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Plugs SPP Series.

        Technical Data:

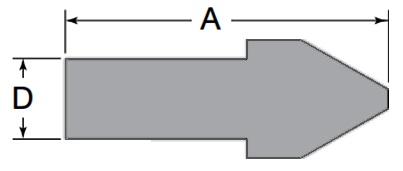

        Tube OD In. Ordering NO. Dimensions in.(mm)

        		A D
        20,000 psig (1378 bar)
        1/4 -SPP-T4-20K 1.00 (25.4) 0.38 (9.7)
        3/8 -SPP-T6-20K 1.25 (31.8) 0.48 (12.2)
        9/16 -SPP-T9-20K 1.50 (38.1) 0.68 (17.3)
        3/4 -SPP-T12-20K 1.62 (41.2) 0.59 (15.0)
        1 -SPP-T16-20K 2.19 (55.6) 0.74 (18.8)
        15,000 psig (1034 bar)
        1 1/2 -SPP-T24-15K 3.01 (76.5) 1.50 (38.1)
        Tube OD In. Ordering NO. Dimensions in.(mm)

        		A D
        60,000 psig (4134 bar)
        1/4 -SPP-T4-60K 1.16 (29.4) 0.25 (6.4)
        3/8 -SPP-T6-60K 1.56 (39.6) 0.38 (9.5)
        9/16 -SPP-T9-60K 2.00 (50.8) 0.56 (14.2)
        • Medium/High Pressure Fittings Plugs SPP Series
      • Medium/High Pressure Fittings Plugs SPP Series
        ModelSPP
        BrandLabEquipx
